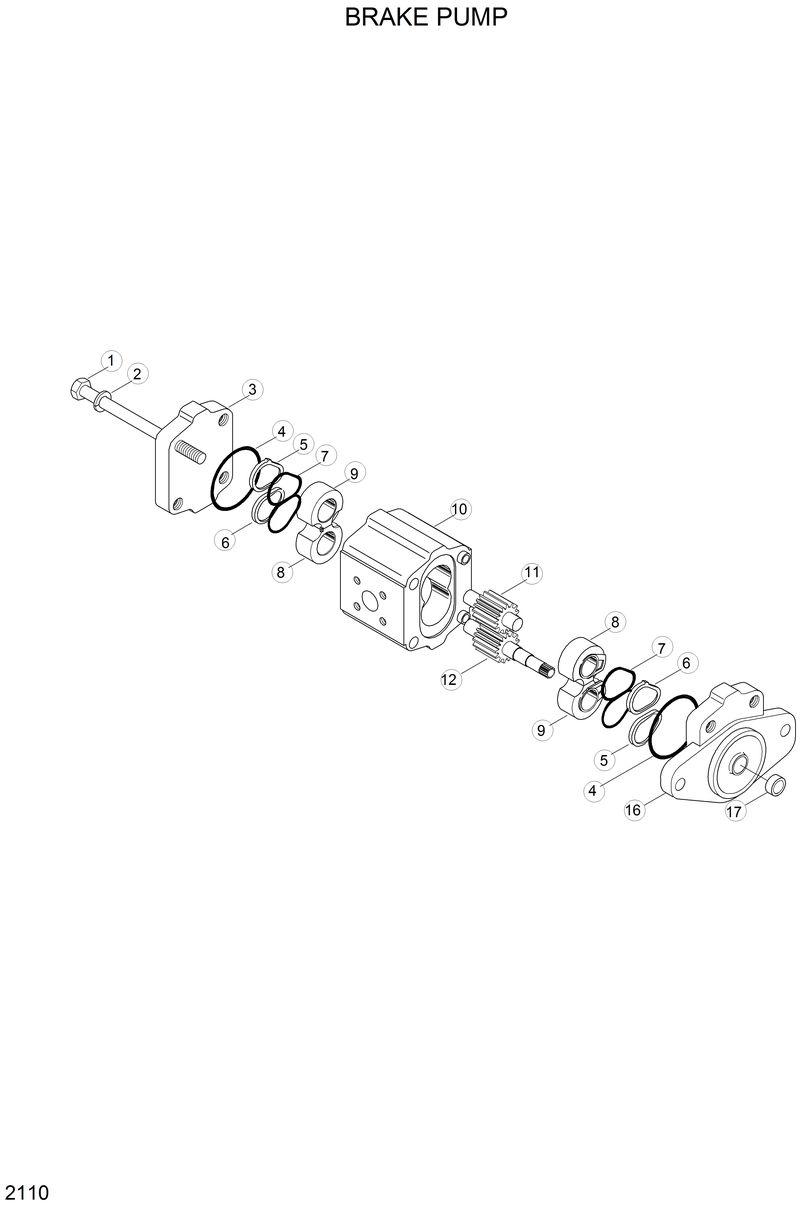

Запчасти Hyundai HL760 BRAKE PUMP

*

31L2-1008

31L2-1008-Brake Pump

1

7111-036-0BK

7111-036-0BK-. Bolt

10

7111-202-0B9

7111-202-0B9-. Body

11

7111-006-0BX

7111-006-0BX-. Gear-Driven

12

7111-039-0BY

7111-039-0BY-. Gear-Drive Shaft

16

8411-235-00R

8411-235-00R-. Flange

2

9221-256-00B

9221-256-00B-. Washer-Spring

3

8321-004-CCV

8321-004-CCV-. Cover

8

7801-209-006

7801-209-006-. Bushing

9

7801-210-002

7801-210-002-. Bushing

K

91L1-2702

91L1-2702-Seal Kit

K17

8301-019-00K

8301-019-00K-. Seal-Shaft

K4

9313-230-00V

9313-230-00V-. O-Ring Body

K6

7111-033-00Q

7111-033-00Q-. Ring-Backing

NK5

7111-032-00U

7111-032-00U-. Ring-Backing

NK7

7111-016-00N

7111-016-00N-. Seal-Bush Lobe
