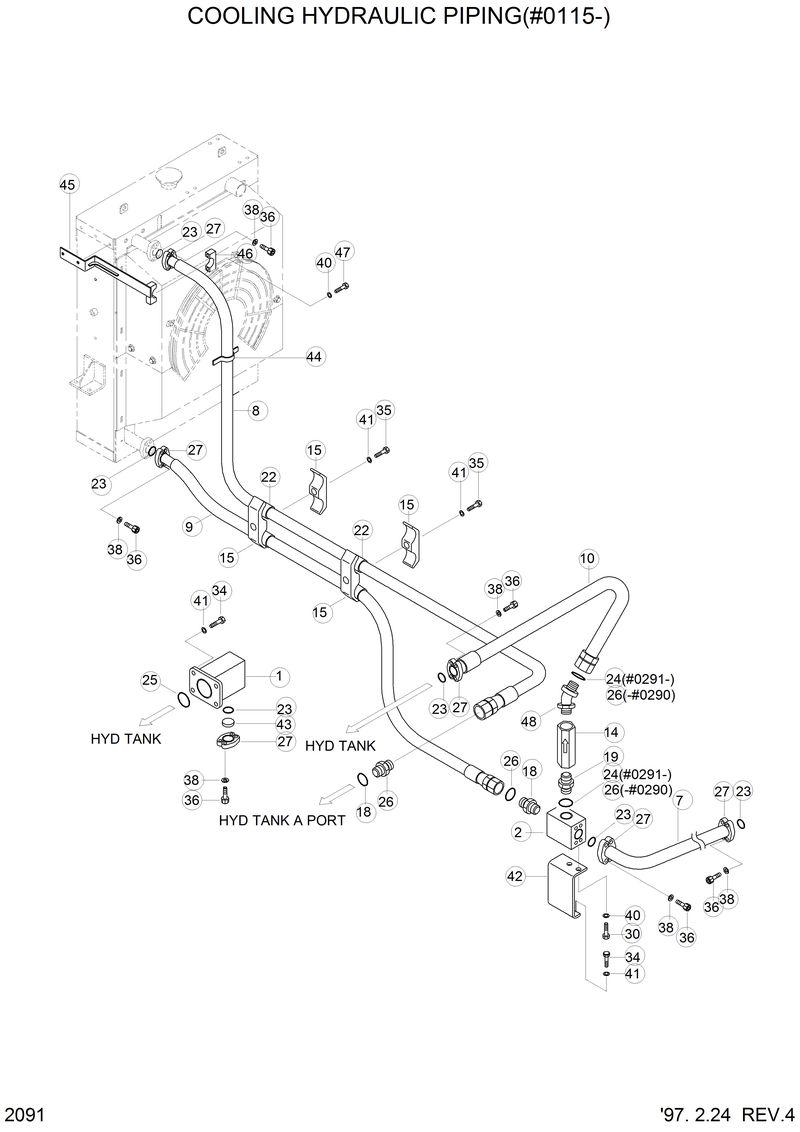

Запчасти Hyundai HL760 COOLING HYDRAULIC PIPING(#0115-)

P650-161370

P650-161370-Hose Assy-Thd Flg

31E9-0142

31E9-0142-Check Valve

S631-029001

S631-029001-O-Ring

S631-029001

S631-029001-O-Ring

S441-100002

S441-100002-Washer-Hardened

34L4-00962

34L4-00962-Block

S441-100002

S441-100002-Washer-Hardened

34L4-01320

34L4-01320-Elbow-45

34L4-01330

34L4-01330-Connector

1

34L4-00950

34L4-00950-Block

10

P630-161314

P630-161314-Hose Assy-Thd

14

31E9-0144

31E9-0144-Check Valve

15

34L4-01210

34L4-01210-Clamp

18

P010-110006

P010-110006-Connector

19

P000-110016

P000-110016-Connector

2

34L4-00961

34L4-00961-Block

22

S690-039100

S690-039100-Grommet

23

31L1-3029

31L1-3029-O-Ring

24

S631-044001

S631-044001-O-Ring

25

31L1-0058

31L1-0058-O-Ring

27

P173-160104

P173-160104-Flange-Split

30

S017-100252

S017-100252-Bolt-Hex

34

S017-120302

S017-120302-Bolt-Hex

35

S017-120852

S017-120852-Bolt-Hex

36

S107-100304

S107-100304-Bolt-Socket

38

S411-100002

S411-100002-Washer-Spring

41

S441-120002

S441-120002-Washer-Hardened

42

34L4-01020

34L4-01020-Plate

43

34L4-01060

34L4-01060-Cover-Flange

44

31E7-0312

31E7-0312-Clamp-Hose

45

34L4-01110

34L4-01110-Bracket Wa

46

34L4-01120

34L4-01120-Clamp

47

S017-100502

S017-100502-Bolt-Hex

48

P030-110005

P030-110005-Elbow-45

7

34L4-00990

34L4-00990-Hose Assy-Thd

8

P650-161363

P650-161363-Hose Assy-Thd Flg

9

P640-161345

P640-161345-Hose Assy-Thd
