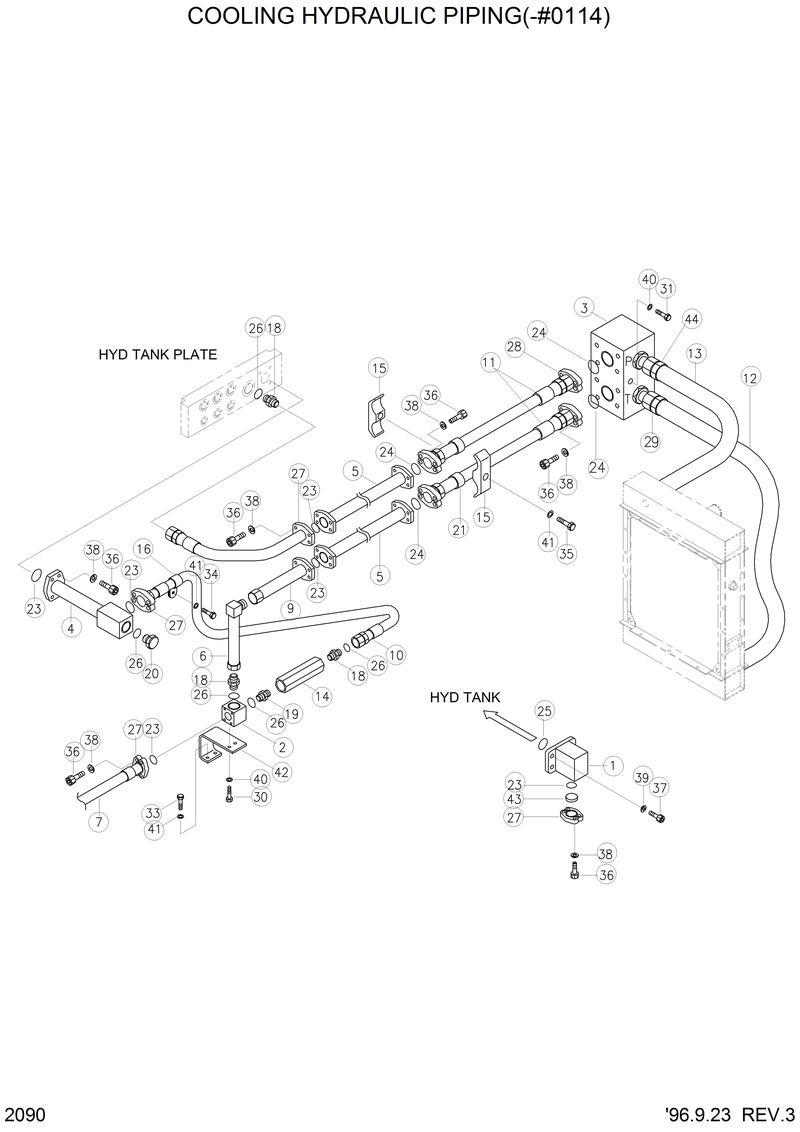

Запчасти Hyundai HL760 COOLING HYDRAULIC PIPING(-#0114)

1

34L4-00950

34L4-00950-Block

10

P630-161328

P630-161328-Hose Assy-Thd Flg

11

P680-201320

P680-201320-Hose Assy-Flg

12

34L1-01830

34L1-01830-Hose-Rubber

13

34L1-01841

34L1-01841-Hose-Rubber

14

31E9-0144

31E9-0144-Check Valve

15

34L4-00540

34L4-00540-Clamp

16

34L4-00870

34L4-00870-Clamp

18

P010-110006

P010-110006-Connector

19

P000-110016

P000-110016-Connector

2

34L4-00961

34L4-00961-Block

20

P220-110106

P220-110106-Plug-Hex

21

S690-034100

S690-034100-Grommet

22

S690-039100

S690-039100-Grommet

23

31L1-3029

31L1-3029-O-Ring

24

31L1-0059

31L1-0059-O-Ring

25

31L1-0058

31L1-0058-O-Ring

26

S631-029001

S631-029001-O-Ring

27

P173-160104

P173-160104-Flange-Split

28

P173-200106

P173-200106-Flange-Split

29

S520-055000

S520-055000-Clamp-Hose

3

34L1-01810

34L1-01810-Block Wa

30

S017-100252

S017-100252-Bolt-Hex

31

S017-101002

S017-101002-Bolt-Hex

33

S017-120252

S017-120252-Bolt-Hex

34

S017-120302

S017-120302-Bolt-Hex

35

S017-120852

S017-120852-Bolt-Hex

36

S107-100304

S107-100304-Bolt-Socket

37

S107-120304

S107-120304-Bolt-Socket

38

S411-100002

S411-100002-Washer-Spring

39

S411-120002

S411-120002-Washer-Spring

4

34L4-00841

34L4-00841-Pipe Wa

40

S401-103002

S401-103002-Washer-Plain

41

S441-120002

S441-120002-Washer-Hardened

42

34L4-01020

34L4-01020-Plate

43

34L4-01060

34L4-01060-Cover-Flange

44

34L1-02360

34L1-02360-Clamp-Hose

5

34L4-00970

34L4-00970-Pipe Wa

6

34L4-01051

34L4-01051-Pipe Wa

7

34L4-00990

34L4-00990-Hose Assy-Thd

8

P650-161322

P650-161322-Hose Assy-Thd Flg

9

P630-161316

P630-161316-Hose Assy-Thd Flg
