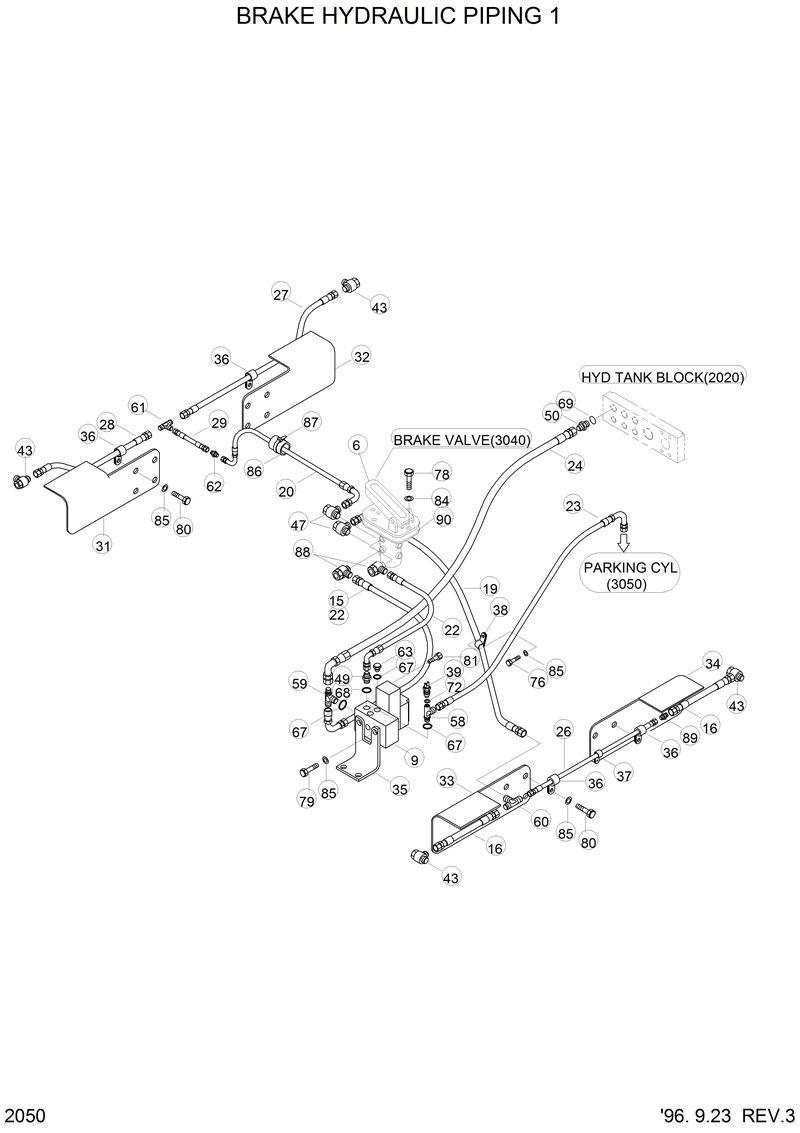

Запчасти Hyundai HL760 BRAKE HYDRAULIC PIPING 1

P620-063016

P620-063016-Hose Assy-Thd 0x90

P620-063016

P620-063016-Hose Assy-Thd 0x90

34L4-01200

34L4-01200-Plate

34L4-01190

34L4-01190-Plate

15

P620-063012

P620-063012-Hose Assy-Thd 0x90

16

31L4-01071

31L4-01071-Hose Assy-Thd

19

P623-063049

P623-063049-Hose Assy-Thd

20

34L4-00710

34L4-00710-Hose Assy-Yhd

23

P620-043010

P620-043010-Hose Assy-Thd 0x90

24

P620-081023

P620-081023-Hose Assy-Thd,0x90

26

31L4-01121

31L4-01121-Tube Assy

27

31L4-01531

31L4-01531-Tube Assy

28

31L4-01541

31L4-01541-Tube Assy

29

31L4-01551

31L4-01551-Tube Assy

31

31L4-0156

31L4-0156-Plate

32

31L4-0157

31L4-0157-Plate

33

31L4-0158

31L4-0158-Plate

34

31L4-0159

31L4-0159-Plate

35

34L4-00800

34L4-00800-Plate

36

31L1-02260

31L1-02260-Clamp

37

31L1-01251

31L1-01251-Clamp

38

34L1-01050

34L1-01050-Clamp

39

31L1-0093

31L1-0093-Switch-Pressure

47

31L1-02180

31L1-02180-Fitting-Banjo

49

P010-110003

P010-110003-Connector

50

P010-110004

P010-110004-Connector

58

34L1-00370

34L1-00370-Elbow

59

34L1-00360

34L1-00360-Tee

6

81L1-0005

81L1-0005-Brake Valve

60

31L4-01131

31L4-01131-Tee

61

31L4-02070

31L4-02070-Tee

62

31L4-02080

31L4-02080-Connector

63

P220-110102

P220-110102-Plug

67

S631-011001

S631-011001-O-Ring

68

S631-014001

S631-014001-O-Ring

69

S631-018001

S631-018001-O-Ring

72

P392-120000

P392-120000-Washer-Copper

76

S017-100202

S017-100202-Bolt-Hex

78

S015-080302

S015-080302-Bolt-Hex

79

S017-100252

S017-100252-Bolt-Hex

80

01D1-2006

01D1-2006-Bolt-Hex

81

S015-050502

S015-050502-Bolt-Hex

84

S411-080002

S411-080002-Washer-Spring

85

S411-100002

S411-100002-Washer-Spring

86

34L3-00900

34L3-00900-Grommet

87

S551-050203

S551-050203-Clamp-Band

88

31L3-0343

31L3-0343-Elbow-90

89

31L4-01141

31L4-01141-Fitting

9

34L4-00790

34L4-00790-Block

90

74L3-00530

74L3-00530-Pad-Rubber

N43

81L1-00601

81L1-00601-Fitting-Banjo
