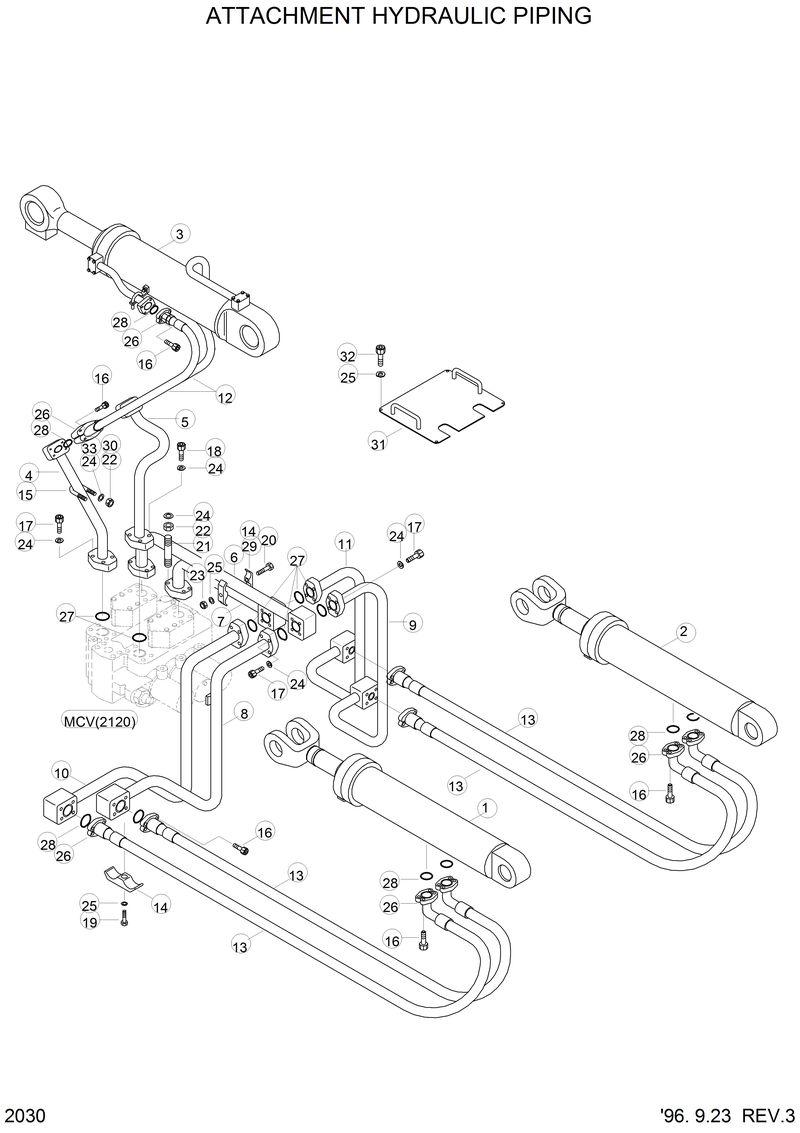

Запчасти Hyundai HL760 ATTACHMENT HYDRAULIC PIPING

34L4-00061

34L4-00061-Pipe Wa

34L4-00123

34L4-00123-Pipe Wa-Lh

34L4-00103

34L4-00103-Pipe Wa-Lh

34L4-00133

34L4-00133-Pipe Wa-Rh

34L4-00091

34L4-00091-Pipe Wa

34L4-00081

34L4-00081-Pipe Wa

34L3-00730

34L3-00730-Clamp

34L4-00071

34L4-00071-Pipe Wa

S205-101002

S205-101002-Nut-Hex

34L3-00730

34L3-00730-Clamp

S205-101002

S205-101002-Nut-Hex

34L4-00041

34L4-00041-Bucket Cylinder

S411-100002

S411-100002-Washer-Spring

S411-100002

S411-100002-Washer-Spring

34L4-00113

34L4-00113-Pipe Wa-Rh

1

34L4-00020

34L4-00020-Boom Cylinder-Lh

10

34L4-00122

34L4-00122-Pipe Wa-Lh

11

34L4-00132

34L4-00132-Pipe Wa-Rh

12

P681-164322

P681-164322-Hose Assy-Flg

13

P701-164329

P701-164329-Hose Assy-Thd

15

34L3-00770

34L3-00770-U-Bolt

16

S107-100354

S107-100354-Bolt-Socket

17

S107-100404

S107-100404-Deleted...

18

S107-100854

S107-100854-Deleted...

19

S017-120652

S017-120652-Bolt-Hex

2

34L4-00030

34L4-00030-Boom Cylinder-Rh

20

S017-120702

S017-120702-Bolt-Hex

21

S061-310080

S061-310080-Bolt-Stud

23

S205-121002

S205-121002-Nut-Hex

25

S441-120002

S441-120002-Washer-Hardened

26

P173-160104

P173-160104-Flange-Split

27

31L4-0072

31L4-0072-O-Ring

28

31L1-3029

31L1-3029-O-Ring

29

34L3-00710

34L3-00710-Clamp

3

34L4-00040

34L4-00040-Bucket Cylinder

30

S275-100002

S275-100002-Nut-Self Locking

31

34L4-00140

34L4-00140-Plate Wa

32

S107-120204

S107-120204-Deleted...

33

S441-100002

S441-100002-Washer-Hardened

4

34L4-00060

34L4-00060-Pipe Wa

5

34L4-00070

34L4-00070-Pipe Wa

6

34L4-00080

34L4-00080-Pipe Wa

7

34L4-00090

34L4-00090-Pipe Wa

8

34L4-00102

34L4-00102-Pipe Wa-Lh

9

34L4-00112

34L4-00112-Pipe Wa-Rh
