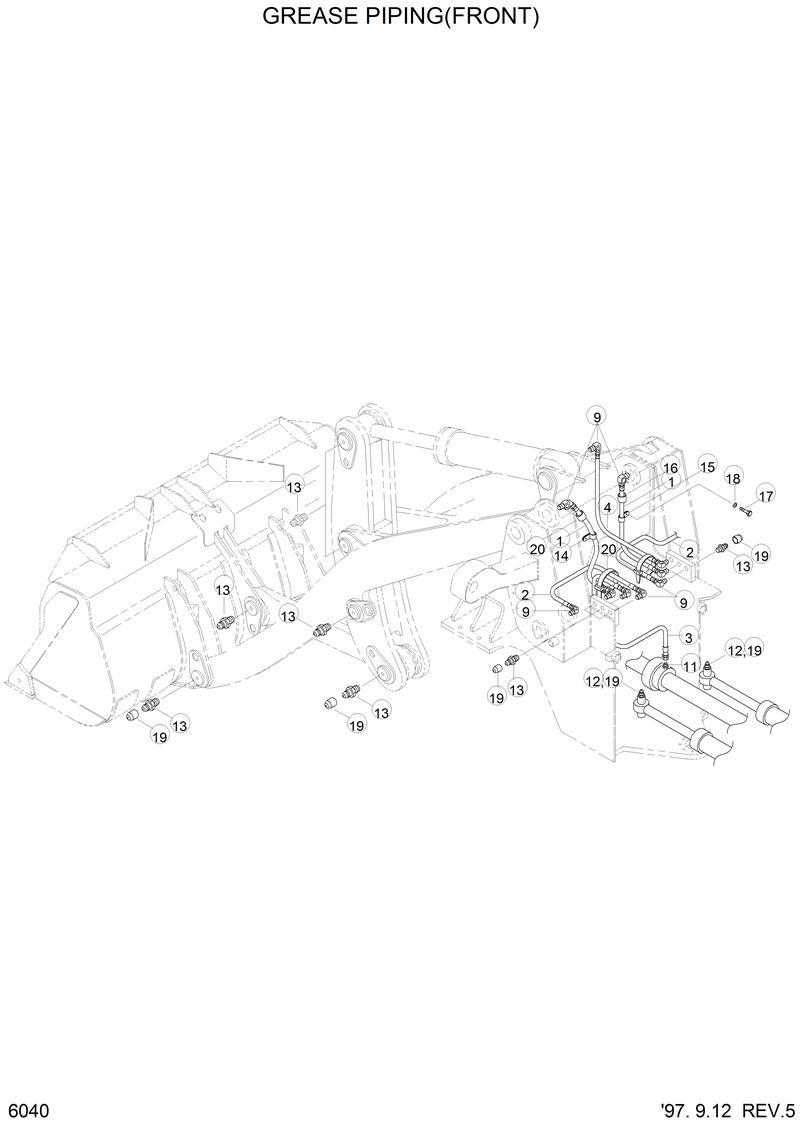

Запчасти Hyundai HL760 GREASE PIPING(FRONT)

S681-411600

S681-411600-Grommet

1

P600-042028

P600-042028-Hose Assy-Thd

11

P010-430011

P010-430011-Connector

12

S653-810002

S653-810002-Nipple-Grease

13

S651-810002

S651-810002-Nipple-Grease

14

S541-140002

S541-140002-Clamp-Tube

15

S542-140002

S542-140002-Clamp

16

34L1-01071

34L1-01071-Grommet

17

S015-060152

S015-060152-Bolt-Hex

18

S411-060002

S411-060002-Washer-Spring

19

S654-000000

S654-000000-Cap-Grease Nipple

2

P600-042008

P600-042008-Hose Assy-Thd

20

S551-077279

S551-077279-Clamp-Band

3

P600-042021

P600-042021-Hose Assy-Thd

4

P600-042027

P600-042027-Hose Assy-Thd

9

61L1-3909

61L1-3909-Elbow-90
