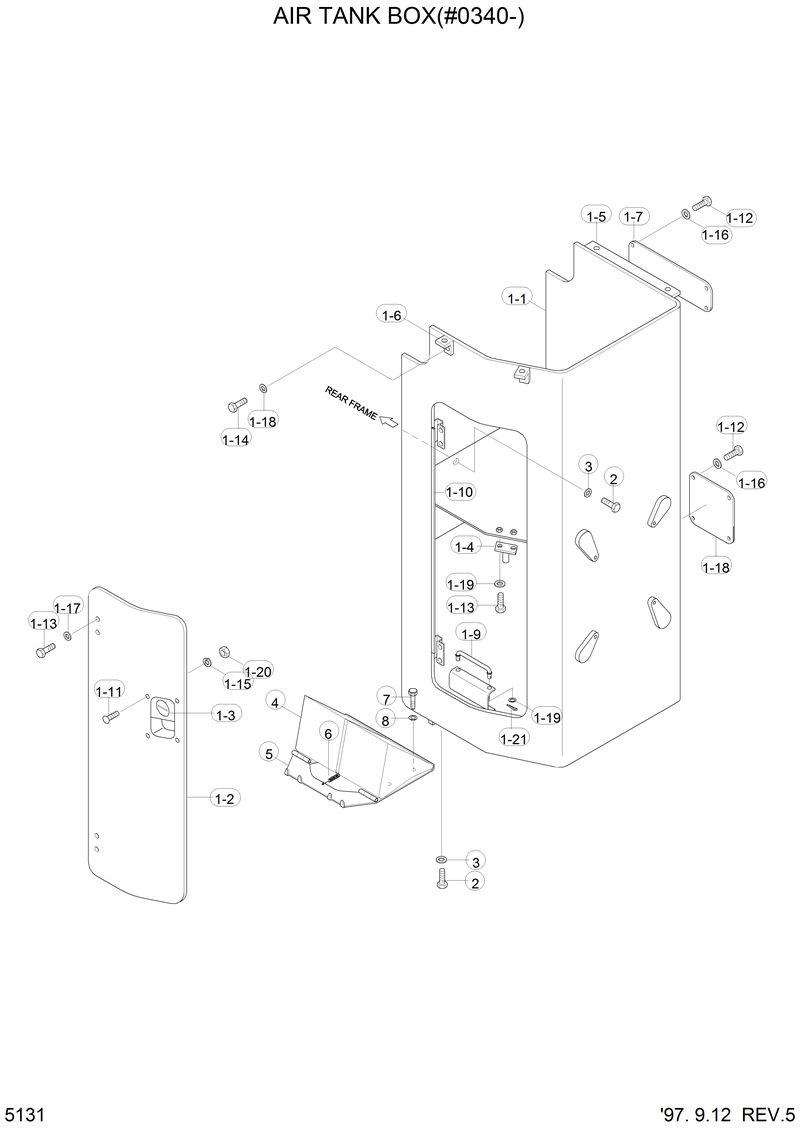

Запчасти Hyundai HL760 AIR TANK BOX(#0340-)

*

@

@-Air Tank Box

1

74L4-20640

74L4-20640-Air Tank Assy

1-1

74L4-20104

74L4-20104-. Air Tank Wa

1-10

74L3-20930

74L3-20930-. Seal

1-11

9327289

9327289-. Bolt-Hex

1-12

S015-080252

S015-080252-. Bolt-Hex

1-13

S017-100252

S017-100252-. Bolt-Hex

1-14

S017-120302

S017-120302-. Bolt-Hex

1-15

S411-060002

S411-060002-. Washer-Spring

1-16

S411-080002

S411-080002-. Washer-Spring

1-17

S441-100002

S441-100002-. Washer-Hardened

1-18

S441-120002

S441-120002-. Washer-Hardened

1-19

S403-102002

S403-102002-. Washer-Plain

1-2

74L4-20650

74L4-20650-. Door Wa

1-20

S201-061002

S201-061002-. Nut-Hex

1-21

S461-320202

S461-320202-. Pin-Split

1-3

71E6-52240

71E6-52240-. Catch Assy

1-4

71E6-54401

71E6-54401-. Pin-Lock

1-5

34L1-00541

34L1-00541-. Plate

1-6

34L1-00551

34L1-00551-. Plate

1-7

74L1-20730

74L1-20730-. Cover

1-8

74L1-20740

74L1-20740-. Cover

1-9

74L3-20920

74L3-20920-. Bar Wa

2

S017-200352

S017-200352-Bolt-Hex

3

S441-200004

S441-200004-Washer-Hardened

4

74L3-00012

74L3-00012-Wheel Chock

5

74L3-20421

74L3-20421-Hinge Wa

6

74L3-20432

74L3-20432-Spring

7

S015-080152

S015-080152-Bolt-Hex

8

S411-080002

S411-080002-Washer-Spring
