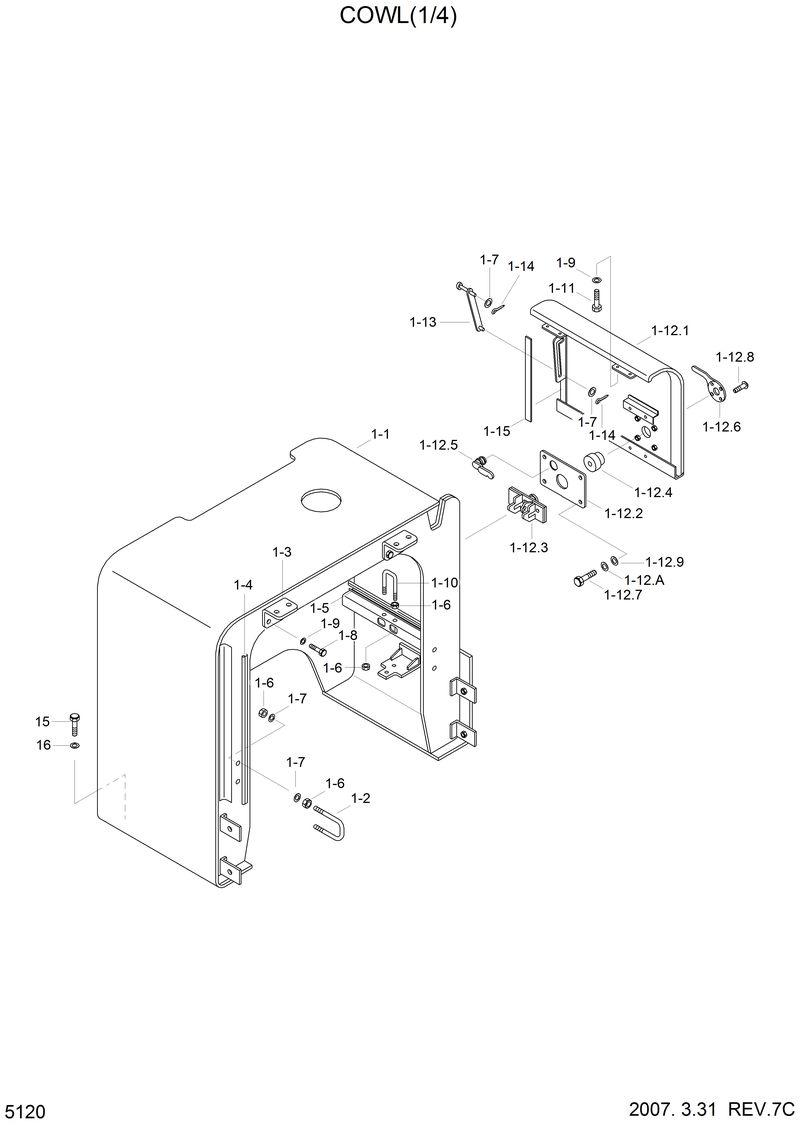

Запчасти Hyundai HL760 COWL(1/4)

74L3-10240

74L3-10240-. Stay Wa

74L4-10471

74L4-10471-. Bar

74L4-10650

74L4-10650-. Door Assy-A/Clnr

74L4-10651

74L4-10651-. Door Assy-A/Clnr

74L4-10660

74L4-10660-.. Door Wa

74L4-10661

74L4-10661-.. Door Wa

74L4-10013

74L4-10013-. Support Wa-Front

74L4-10641

74L4-10641-. Support Wa-Front

74L4-10640

74L4-10640-. Support Wa-Front

74L4-10631

74L4-10631-Support Assy-Front

74L4-10630

74L4-10630-Support Assy-Front

74L4-10452

74L4-10452-Support Assy-Front

1

74L4-10451

74L4-10451-Support Assy-Front

1-1

74L4-10012

74L4-10012-. Support Wa-Front

1-10

74L4-10470

74L4-10470-. Bar

1-11

S017-120252

S017-120252-. Bolt-Hex

1-12

74L4-10021

74L4-10021-. Door Assy-A/Clnr

1-12.1

74L4-10031

74L4-10031-.. Door Wa

1-12.2

74L3-10121

74L3-10121-.. Plate Wa

1-12.4

74L3-10460

74L3-10460-.. Rubber

1-12.5

74L3-10310

74L3-10310-.. Lock Assy

1-12.6

74L3-10450

74L3-10450-.. Knob

1-12.7

S015-080202

S015-080202-.. Bolt-Hex

1-12.8

S141-060152

S141-060152-.. Screw-Flat Hd

1-12.9

S403-082002

S403-082002-.. Washer-Plain

1-12.A

S411-080002

S411-080002-.. Washer-Spring

1-14

S461-160202

S461-160202-. Pin-Split

1-15

74L3-10360

74L3-10360-. Pad-Rubber

1-2

74L1-00120

74L1-00120-. Bar

1-3

74L4-10081

74L4-10081-. Plate

1-4

S771-006000

S771-006000-. Weather Strip

1-5

S771-005150

S771-005150-. Weather Strip

1-6

S205-101002

S205-101002-. Nut-Hex

1-7

S441-100002

S441-100002-. Washer-Hardened

1-8

S017-120202

S017-120202-. Bolt-Hex

1-9

S441-120002

S441-120002-. Washer-Hardened

15

S017-120302

S017-120302-Bolt-Hex

16

S441-120002

S441-120002-Washer-Hardened

N

@

@-Not Individually Supplied

N1-123

74L3-10340

74L3-10340-.. Catch

N1-13

74L3-10241

74L3-10241-. Stay Wa
