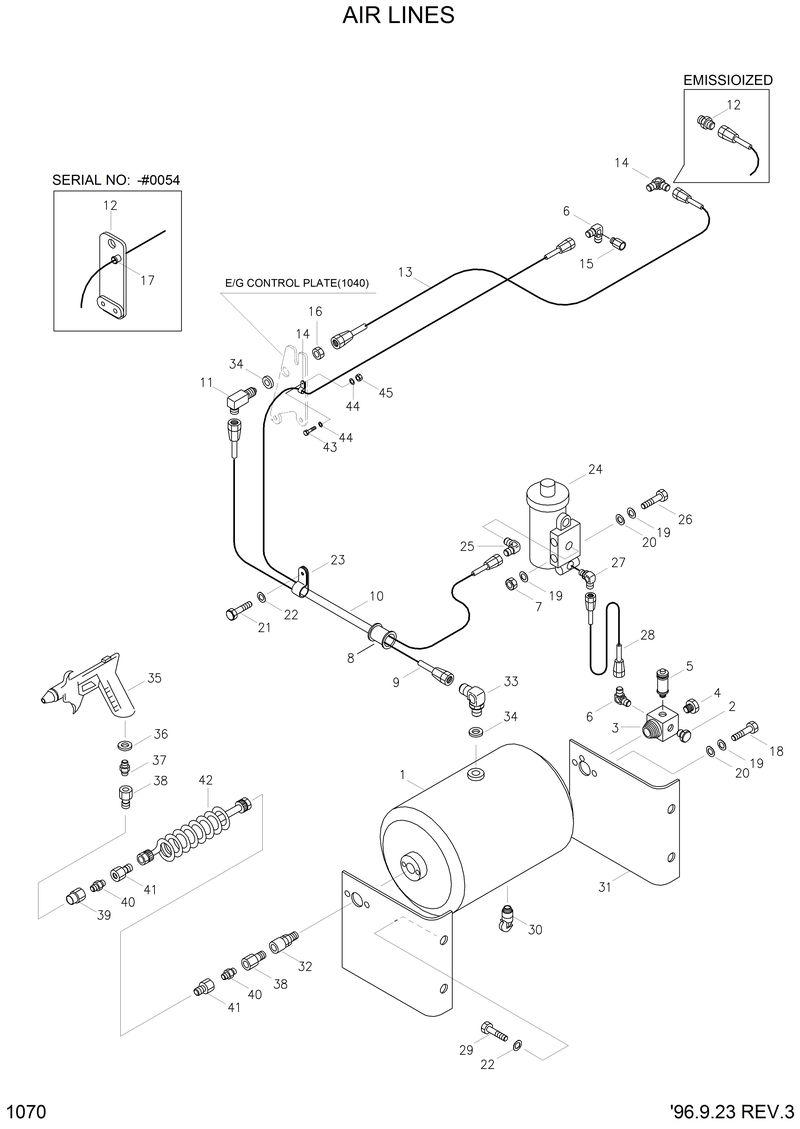

Запчасти Hyundai HL760 AIR LINES

14L4-00591

14L4-00591-Hose Assy

14L4-00930

14L4-00930-Tube Assy

14L4-00950

14L4-00950-Connector

14L4-00780

14L4-00780-Nut-Hex

14L4-00071

14L4-00071-Connector

14L4-00790

14L4-00790-Connector

14L4-00940

14L4-00940-Hose Assy

S541-120002

S541-120002-Clamp-Tube

1

11L3-0136

11L3-0136-Tank-Air

10

14L4-00600

14L4-00600-Hose

11

14L4-00070

14L4-00070-Connector

12

14L4-00081

14L4-00081-Plate

13

14L4-00180

14L4-00180-Tube Assy

13

14L4-00183

14L4-00183-Tube Assy

14

11L2-4002

11L2-4002-Fitting

15

E111-0523

E111-0523-Connector

16

E111-0546

E111-0546-Nut

17

S681-131200

S681-131200-Grommet

18

S015-080152

S015-080152-Bolt-Hex

19

S403-080002

S403-080002-Washer-Plain

2

P220-430101

P220-430101-Plug

20

S411-080002

S411-080002-Washer-Spring

21

S017-120152

S017-120152-Bolt-Hex

22

S441-120002

S441-120002-Washer-Hardened

23

31E7-0311

31E7-0311-Clamp-Hose

24

E111-0520

E111-0520-Governor

25

E211-0506

E211-0506-Connector

26

S015-080802

S015-080802-Bolt-Hex

27

E211-0512

E211-0512-Connector

28

11L4-0159

11L4-0159-Hose

29

S017-120252

S017-120252-Bolt-Hex

3

E111-0521

E111-0521-Connector

30

E111-0526

E111-0526-Cock-Drain

31

12L1-10310

12L1-10310-Bracket

32

E111-0527

E111-0527-Socket

33

E211-0514

E211-0514-Connector

34

E111-0511

E111-0511-Gasket

35

E111-0532

E111-0532-Gun

36

P391-040000

P391-040000-Washer-Copper

37

11L1-0138

11L1-0138-Connector

38

E111-0528

E111-0528-Plug

39

11L1-0137

11L1-0137-Connector

4

E111-0525

E111-0525-Plug

40

E111-0529

E111-0529-Connector

41

E111-0539

E111-0539-Connector

42

E111-0531

E111-0531-Hose-Coil

43

S015-060202

S015-060202-Bolt-Hex

44

S403-062002

S403-062002-Washer-Plain

45

S203-061004

S203-061004-Nut-Hex

5

E111-0524

E111-0524-Valve-Safety

6

E111-0522

E111-0522-Connector

7

S205-081002

S205-081002-Nut-Hex

8

S681-460800

S681-460800-Grommet

9

14L4-00590

14L4-00590-Hose Assy

N13

14L4-00181

14L4-00181-Tube Assy
