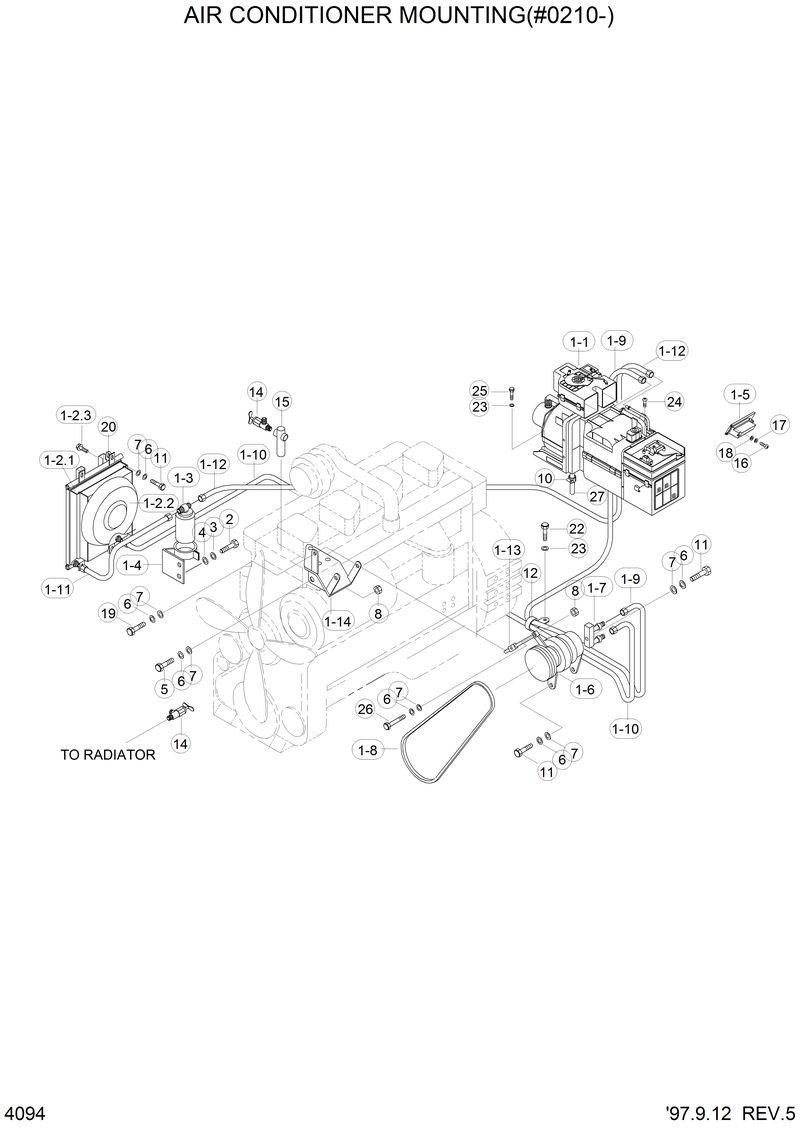

Запчасти Hyundai HL750 AIR CONDITIONER MOUNTING(#0210-)

1

14L3-01421

14L3-01421-Air Conditioner Assy

1-1

14L1-01240

14L1-01240-. Evaporator Unit

1-10

14L3-01440

14L3-01440-. Hose-Discharge

1-11

14L3-01450

14L3-01450-. Hose-Liquid(A)

1-12

14L3-01461

14L3-01461-. Hose-Liquid(B)

1-13

14L1-01330

14L1-01330-. Piece-Tension

1-14

14L3-00701

14L3-00701-. Bracket-Comp

1-2

14L1-01260

14L1-01260-. Cond & F/Shroud Assy

1-2.1

@

@-.. Condenser Assy

1-2.2

@

@-.. Fan & Shroud Assy

1-2.3

@

@-.. Bolt & Washer Assy

1-3

11E6-36050

11E6-36050-. R/Drier Assy

1-4

11E6-36100

11E6-36100-. Bracket-R/Drier

1-5

14L1-01280

14L1-01280-. Control Assy

1-6

11EM-90040

11EM-90040-. Compressor Assy

1-7

12E3-3509

12E3-3509-. Plate-Comp Joint

1-8

12L3-0120

12L3-0120-. V-Belt

1-9

14L3-01430

14L3-01430-. Hose-Suction

10

S572-250002

S572-250002-Clamp-Hose Wire Type

11

S017-100302

S017-100302-Bolt-Hex

12

31E7-0309

31E7-0309-Clamp-Hose

14

14L1-01370

14L1-01370-Valve-Heater

15

21E1-49910

21E1-49910-Adapter

16

S161-040102

S161-040102-Screw-Rd Hd

17

S411-040002

S411-040002-Washer-Spring

18

S401-042002

S401-042002-Washer-Plain

19

S017-100202

S017-100202-Bolt-Hex

2

S015-080152

S015-080152-Bolt-Hex

20

14L3-00741

14L3-00741-Resilient

22

S017-120152

S017-120152-Bolt-Hex

23

S441-120002

S441-120002-Washer-Hardened

24

S152-040122

S152-040122-Screw-Tapping

25

S017-120252

S017-120252-Bolt-Hex

26

S017-100552

S017-100552-Bolt-Hex

27

14L1-01340

14L1-01340-Hose-Drain

3

S411-080002

S411-080002-Washer-Spring

4

S403-082002

S403-082002-Washer-Plain

5

S017-100352

S017-100352-Bolt-Hex

6

S411-100002

S411-100002-Washer-Spring

7

S403-102002

S403-102002-Washer-Plain

8

S205-101002

S205-101002-Nut-Hex
