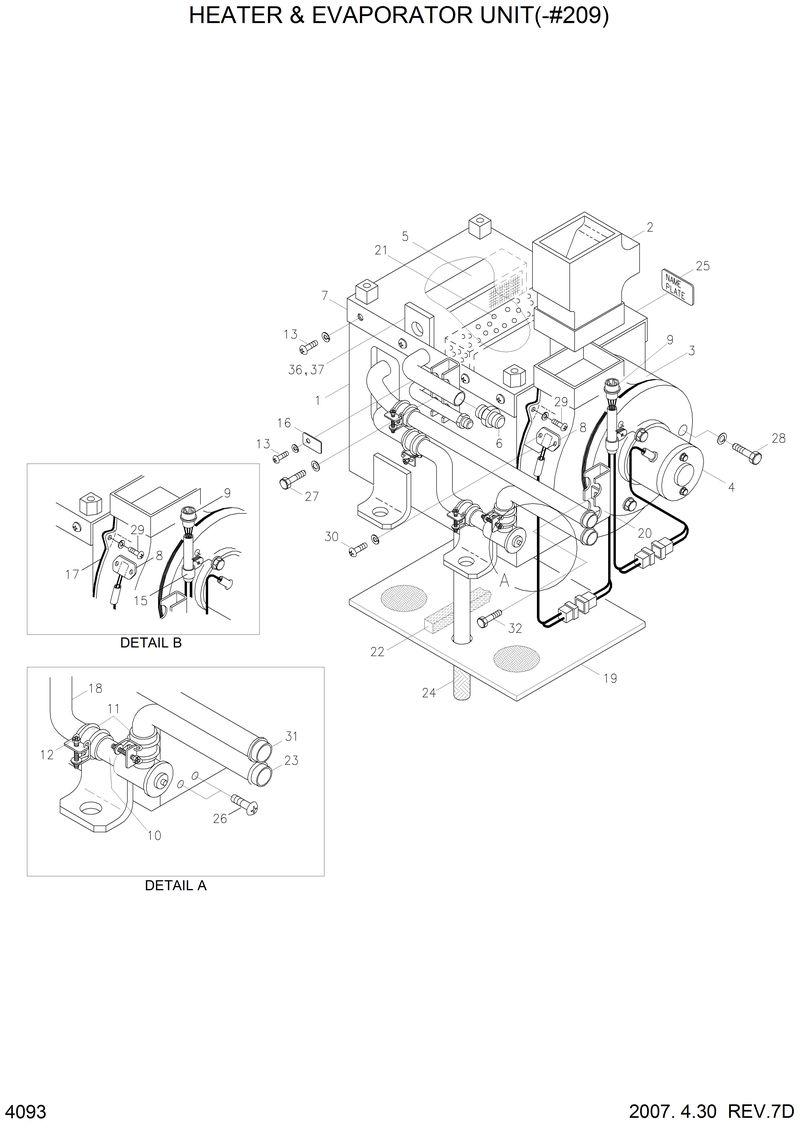

Запчасти Hyundai HL750 HEATER & EVAPORATOR UNIT(-#0209)

*

14L3-00630

14L3-00630-Evap & Heater Assy

1

AM100-006-000

AM100-006-000-. Casing Assy

11

3AH-0362-1

3AH-0362-1-. Hose-Water

12

4AH-0828

4AH-0828-. Clamp-Hose Assy

13

K500237

K500237-. Screw-Truss Tp

14

AM800-034-041

AM800-034-041-. Clamp-Evap

15

3AH0756

3AH0756-. Holder-Wire

16

AM800-034-051

AM800-034-051-. Cover-Spacer

17

AM700-015-002

AM700-015-002-. Insulation-Front

18

AM230-005-003

AM230-005-003-. Pipe-Inlet(A)

19

AM700-013-002

AM700-013-002-. Insulation-Bottom

2

1AH0094

1AH0094-. Air Damper Assy

20

4AH-0606

4AH-0606-. Clamp

21

AM700-008-003

AM700-008-003-. Insulation-Evap

22

AM700-007-003

AM700-007-003-. Insulation-Drain

23

AM230-006-003

AM230-006-003-. Pipe-Inlet(B)

24

AM800-001-013

AM800-001-013-. Hose-Drain

25

3AH-0821-13

3AH-0821-13-. Plate-Name

26

3AH-0567-3

3AH-0567-3-. Bolt-W/Washer

27

K500827

K500827-. Bolt-W/Washer

28

4AH0886

4AH0886-. Screw-Truss Tp

29

K500241

K500241-. Screw-Truss Tp

30

K500239

K500239-. Screw-Truss Tp

31

AM240-004-003

AM240-004-003-. Pipe-Outlet

32

A7330-001-023

A7330-001-023-. Bolt-W/Washer

33

4CC-3545

4CC-3545-. Bolt-W/Washer

34

AM100-020-000

AM100-020-000-. Aircon Duct Assy

36

AM850-005-013

AM850-005-013-. Insulation-Demp(A)

37

AM850-005-023

AM850-005-023-. Insulation-Demp(B)

4

AM600-002-001

AM600-002-001-. Fan & Motor Assy

5

AM200-011-001

AM200-011-001-. Htr Rad Assy

7

AM100-021-001

AM100-021-001-. Cover-Case Assy

8

2AH0661

2AH0661-. Resistor Assy

9

2AH0639

2AH0639-. Wiring Assy

N

@

@-Not Individually Supplied

N10

AM300-002-002

AM300-002-002-. Valve Assy

N3

1AH0083

1AH0083-. Case Assy-Blower

N6

A1100522-01C1

A1100522-01C1-. Evap Core Assy
