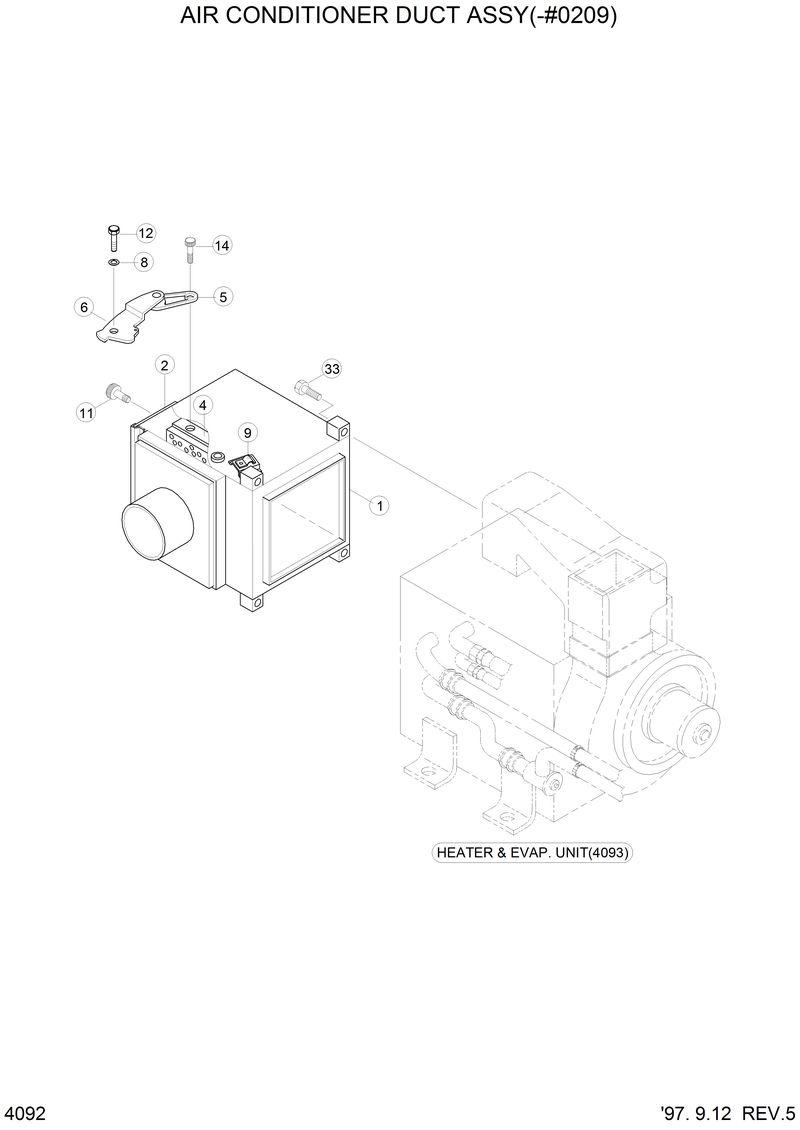

Запчасти Hyundai HL750 AIR CONDITIONER DUCT ASSY(-#0209)

*

11E6-90021

11E6-90021-Aircon Duct Assy

1

AM140-001-000

AM140-001-000-. Duct Case Assy

11

AN713-002-004

AN713-002-004-. Bolt

12

3AH-0667-3

3AH-0667-3-. Screw

14

S151-040142

S151-040142-. Screw-C/Recess Tap

2

AM160-003-003

AM160-003-003-. Cover Filter

33

4CC-3545

4CC-3545-. Bolt-W/Washer

8

4AH-0682

4AH-0682-. Bush

9

AM310-002-003

AM310-002-003-. Wire Clamp

N4

AM460-001-002

AM460-001-002-. Frash Damper Assy

N5

2AH-0560

2AH-0560-. Lever-Air

N6

2AH-0559

2AH-0559-. Link-Air
