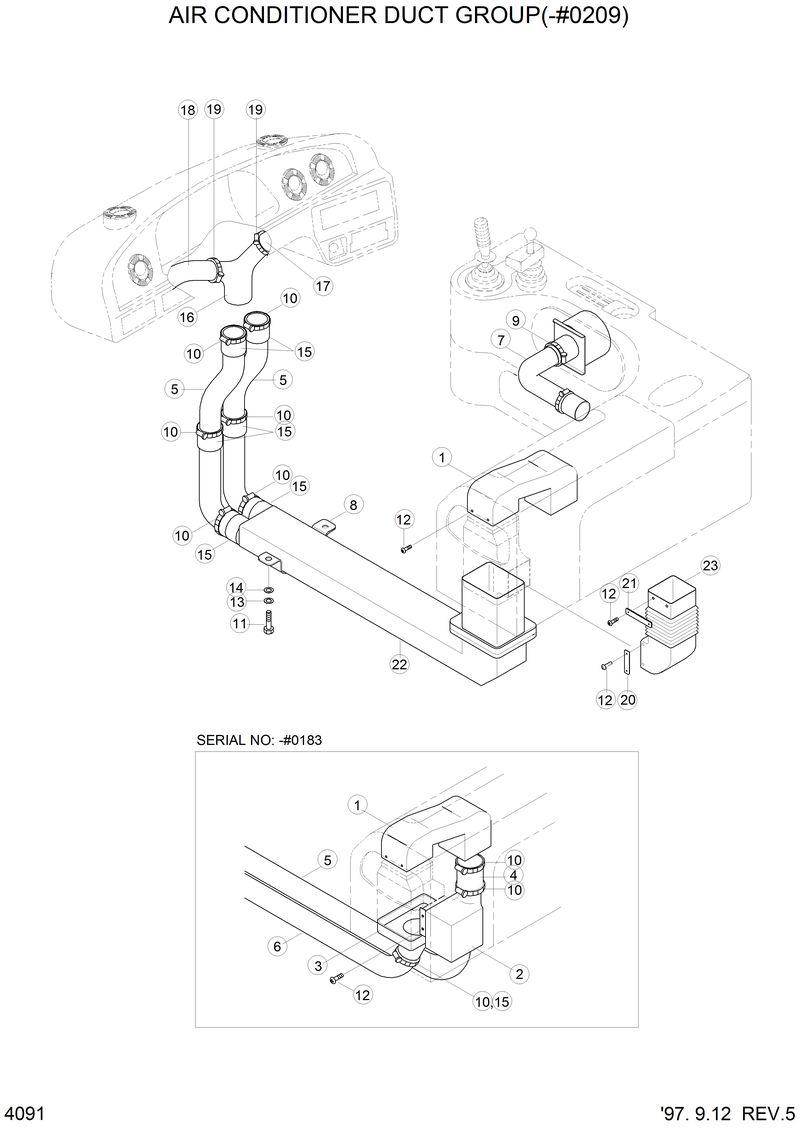

Запчасти Hyundai HL750 AIR CONDITIONER DUCT GROUP(-#0209)

S151-040152

S151-040152-Screw-Cross,R/Tap

S151-040152

S151-040152-Screw-Cross,R/Tap

74L3-00342

74L3-00342-Hose

74L3-03200

74L3-03200-Hose

74L3-00330

74L3-00330-Hose

74L3-00330

74L3-00330-Hose

74L3-03210

74L3-03210-Connector-Hose

74L3-03210

74L3-03210-Connector-Hose

74L3-03210

74L3-03210-Connector-Hose

74L3-00421

74L3-00421-Duct

1

74L3-00410

74L3-00410-Duct

11

S017-100152

S017-100152-Bolt-Hex

13

S411-100002

S411-100002-Washer-Spring

14

S403-102002

S403-102002-Washer-Plain

16

74L3-03050

74L3-03050-Duct-Center

17

74L3-03060

74L3-03060-Hose-Rh

18

74L3-03070

74L3-03070-Hose-Lh

19

S572-530002

S572-530002-Clamp-Hose Wire Type

19

S572-530002

S572-530002-Clamp-Hose Wire Type

2

74L3-00420

74L3-00420-Duct

20

74L3-00950

74L3-00950-Plate

21

74L3-00960

74L3-00960-Plate

22

74L3-00970

74L3-00970-Duct

23

74L3-00980

74L3-00980-Duct

3

74L3-00490

74L3-00490-Duct

5

74L3-00341

74L3-00341-Hose

7

74L3-00382

74L3-00382-Hose

8

74L3-00391

74L3-00391-Bracket

9

S572-930002

S572-930002-Clamp-Hose Wire Type

N6

74L3-00351

74L3-00351-Hose
