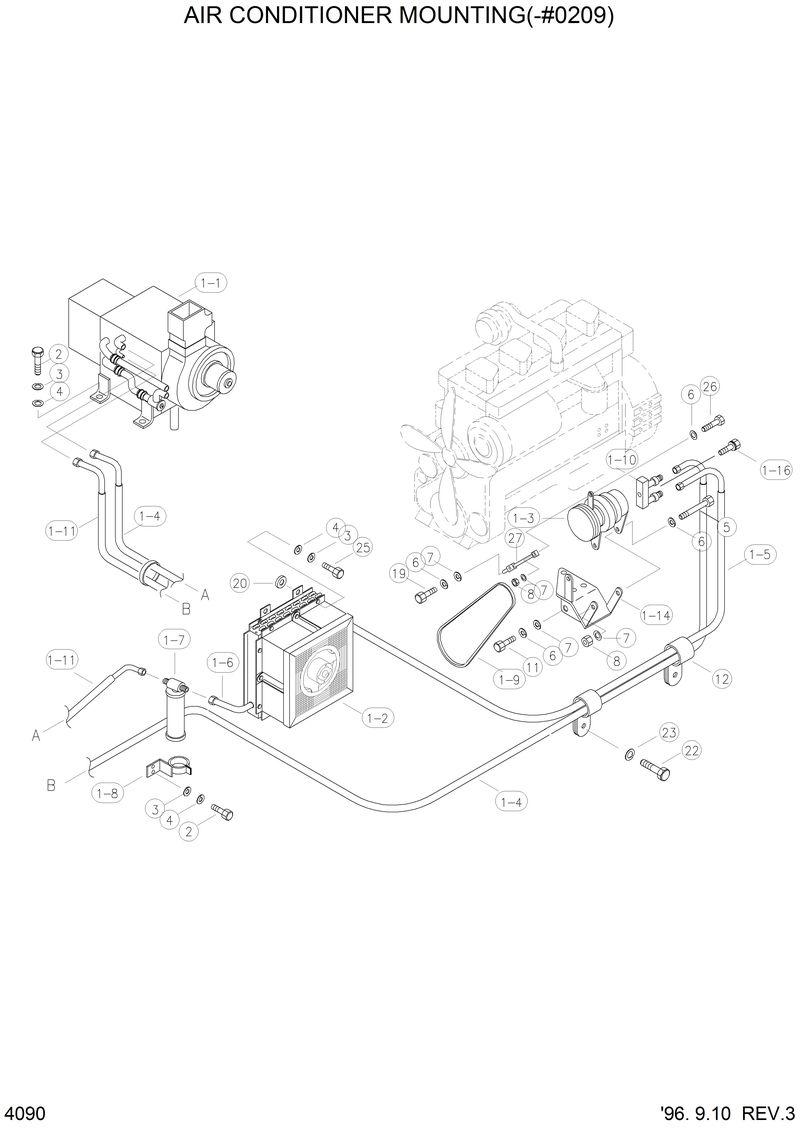

Запчасти Hyundai HL750 AIR CONDITIONER MOUNTING(-#0209)

14L3-00661

14L3-00661-. Hose-Discharge

14L3-00621

14L3-00621-Aircon Assy

*

@

@-Aircon Group

1-1

14L3-00630

14L3-00630-. Evap & Heater Assy

1-10

71L1-1037

71L1-1037-. Plate

1-11

14L3-00680

14L3-00680-. Hose-Liquid(B)

1-14

14L3-00701

14L3-00701-. Bracket-Comp

1-16

11EF-0174

11EF-0174-. Bolt Assy

1-3

11E6-36030

11E6-36030-. Compressor Assy

1-4

14L3-00650

14L3-00650-. Hose-Suction

1-5

14L3-00660

14L3-00660-. Hose-Discharge

1-6

14L3-00670

14L3-00670-. Hose-Liquid(A)

1-7

11E6-36050

11E6-36050-. Receiver Drier Assy

1-8

11E6-36100

11E6-36100-. Bracket-R/Drier

1-9

12L3-0120

12L3-0120-. V-Belt

11

S017-100302

S017-100302-Bolt-Hex

12

31E7-0309

31E7-0309-Clamp-Hose

19

S015-080252

S015-080252-Bolt-Hex

2

S015-080152

S015-080152-Bolt-Hex

20

14L3-00740

14L3-00740-Resilient

22

S017-120152

S017-120152-Bolt-Hex

23

S441-120002

S441-120002-Washer-Hardened

25

S015-080302

S015-080302-Bolt-Hex

26

S017-100552

S017-100552-Bolt-Hex

3

S411-080002

S411-080002-Washer-Spring

4

S403-082002

S403-082002-Washer-Plain

5

S017-100352

S017-100352-Bolt-Hex

6

S411-100002

S411-100002-Washer-Spring

7

S403-102002

S403-102002-Washer-Plain

8

S205-101002

S205-101002-Nut-Hex

N1

14L3-00620

14L3-00620-Aircon Assy

N1-2

14L3-00640

14L3-00640-. Condenser Assy

N27

A470050401Z3

A470050401Z3-Bolt-Adjust
