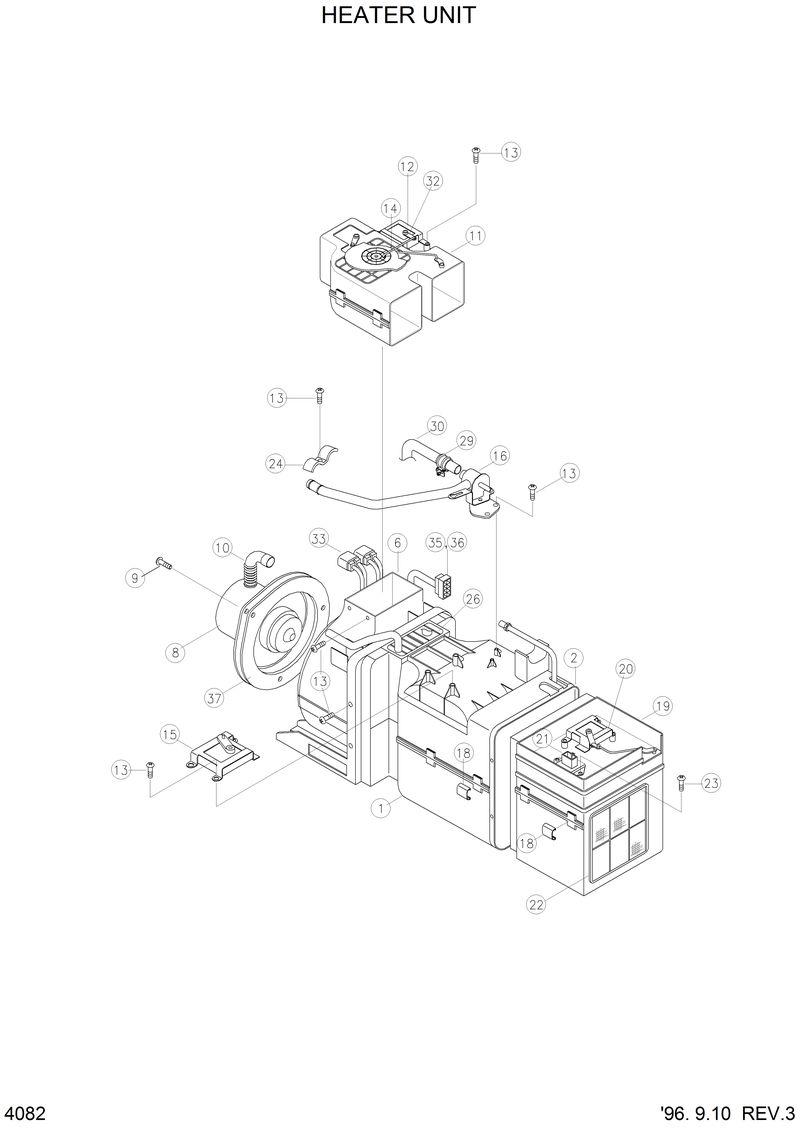

Запчасти Hyundai HL750 HEATER UNIT(#0210-)

1

AM12100400-0

AM12100400-0-.. Case-Low

10

3AH-0771

3AH-0771-.. Hose-Cooling

11

AM14001000-1

AM14001000-1-.. Damp Unit Assy

12

AM50200200-1

AM50200200-1-.. Motor Act-Mode

13

K500531

K500531-.. Screw

14

AM53300200-4

AM53300200-4-.. Rod-Cam

15

AM50300100-1

AM50300100-1-.. Temp D/Act Assy

16

AM30000600-2

AM30000600-2-.. Valve Assy

18

4AH-0688

4AH-0688-.. Clip-Case

19

AM13000200-1

AM13000200-1-.. Intake Unit Assy

2

AM11100401-0

AM11100401-0-.. Case-Upper

20

AM50400100-1

AM50400100-1-.. Intake D/Act Assy

21

AM86000400-2

AM86000400-2-.. Resistor Assy

22

AM88000300-2

AM88000300-2-.. Air Filter-Refresh

23

K500533

K500533-.. Screw

24

3AH-0770

3AH-0770-.. Clamp-Pipe

26

AM20002100-2

AM20002100-2-.. Heater Rad Set

29

4AH-0929

4AH-0929-.. Clamp Assy-Hose

30

3AH-1007

3AH-1007-.. Hose-Water

32

3AH-0705

3AH-0705-.. Clamp-Rod

33

A810001001-3

A810001001-3-.. Relay

35

AM83301500-1

AM83301500-1-.. Harness-Jump Wire

36

4AH-0643

4AH-0643-.. Holder-Wire

37

3AH-0774

3AH-0774-.. Packing-Motor

6

AM13100100-0

AM13100100-0-.. Case-Blower

8

AM60001700-2

AM60001700-2-.. Fan & Motor Assy

9

4AH-0886

4AH-0886-.. Screw

N*

14L1-01250

14L1-01250-. Heater Unit
