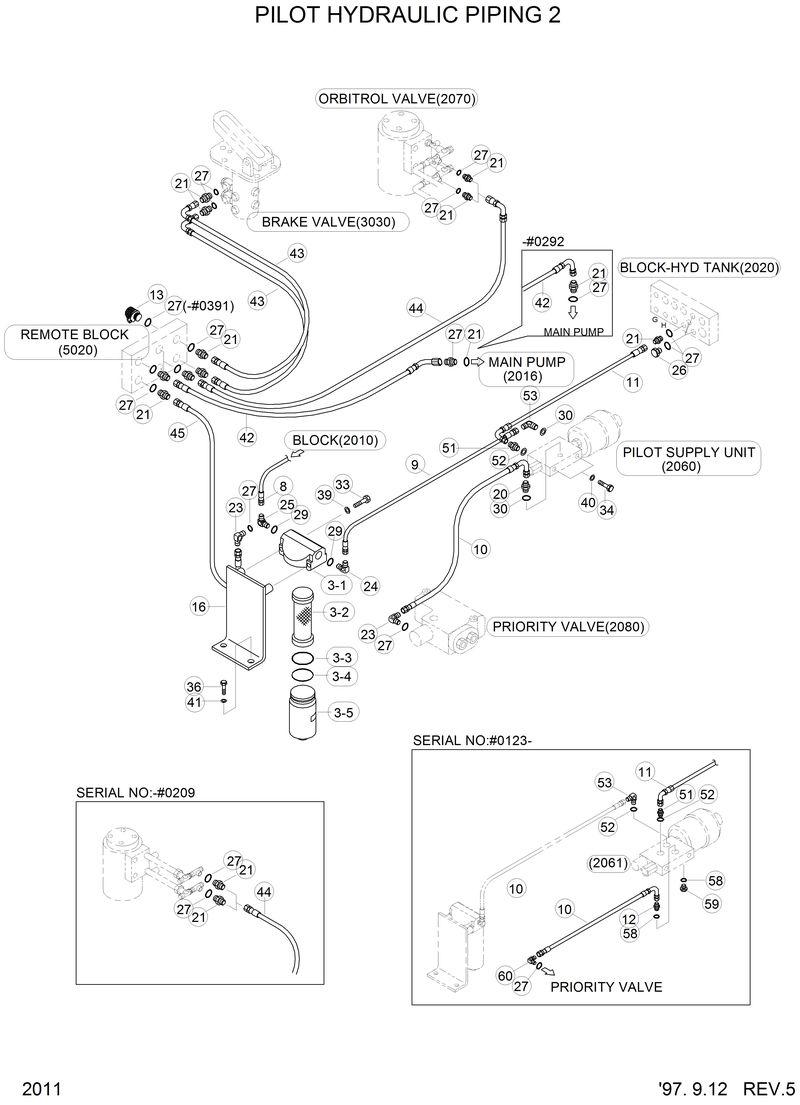

Запчасти Hyundai HL750 PILOT HYDRAULIC PIPING 2

P600-047018

P600-047018-Hose Assy-Thd

P620-066014

P620-066014-Hose Assy-Thd 0x90

31EK-11130

31EK-11130-Screw Coupling

S631-011001

S631-011001-O-Ring

S631-011001

S631-011001-O-Ring

P611-012001

P611-012001-O-Ring

P010-310003

P010-310003-Connector

P610-047015

P610-047015-Hose Assy-Thd 0x45

P020-310002

P020-310002-Elbow-90

10

P620-047013

P620-047013-Hose Assy-Thd 0x90

11

P620-042011

P620-042011-Hose Assy-Thd 0x90

13

34L3-00130

34L3-00130-Coupler-Quick

16

34L3-00150

34L3-00150-Bracket Wa

20

P010-120002

P010-120002-Connector

21

P010-110002

P010-110002-Connector

23

P020-110001

P020-110001-Elbow-90

24

31L3-0215

31L3-0215-Elbow-90

25

31L3-0375

31L3-0375-Elbow-90

26

P220-110102

P220-110102-Plug

29

S631-018001

S631-018001-O-Ring

3

31E3-0017

31E3-0017-Filter-Line

3-1

31E3-0067

31E3-0067-. Head-Filter

3-2

31E3-0018

31E3-0018-. Element-Line Filter

3-3

31E3-0069

31E3-0069-. Ring

3-4

31E3-0070

31E3-0070-. O-Ring

3-5

31E3-0071

31E3-0071-. Cap

30

P391-040000

P391-040000-Washer-Copper

33

S015-060602

S015-060602-Bolt-Hex

34

S015-080202

S015-080202-Bolt-Hex

36

S017-100252

S017-100252-Bolt-Hex

39

S411-060002

S411-060002-Washer-Spring

40

S411-080002

S411-080002-Washer-Spring

41

S411-100002

S411-100002-Washer-Spring

42

P620-047022

P620-047022-Hose Assy-Thd,0x90

43

P620-043019

P620-043019-Hose Assy-Thd 0x90

44

P600-047012

P600-047012-Hose Assy-Thd

45

P620-042008

P620-042008-Hose Assy-Thd,0x90

51

P010-120023

P010-120023-Connector

52

P391-060000

P391-060000-Washer-Copper

53

31E3-3164

31E3-3164-Fitting-Banjo

58

S611-016001

S611-016001-O-Ring

59

P220-310103

P220-310103-Plug

60

P020-110011

P020-110011-Elbow-90

8

P620-042022

P620-042022-Hose Assy-Thd 0x90

9

P600-042017

P600-042017-Hose Assy-Thd
