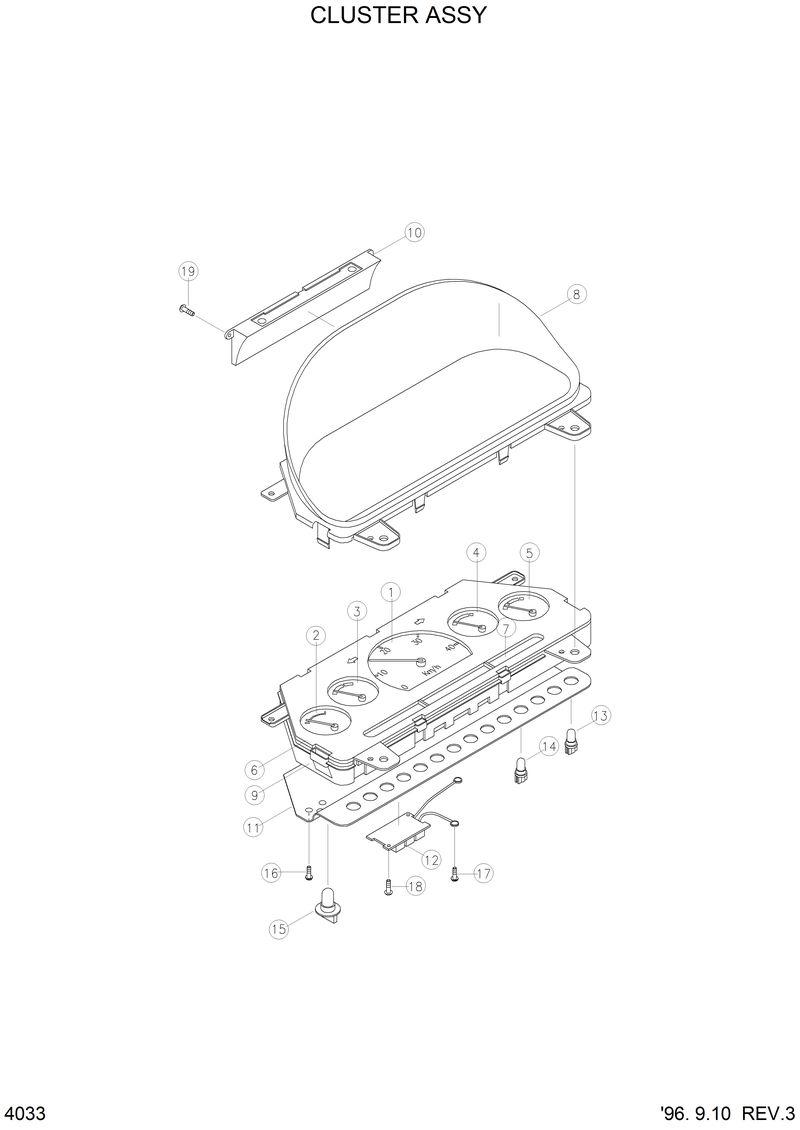

Запчасти Hyundai HL750 CLUSTER ASSY

*

24L3-00210

24L3-00210-Cluster

1

24L3-02120

24L3-02120-. S/W Board Assy "A"

10

24L3-02240

24L3-02240-. Lamp Cover Sub Assy

11

24L3-02250

24L3-02250-. Pcb Sub Assy

13

24L3-02270

24L3-02270-. Lamp Assy

14

24L3-02280

24L3-02280-. Lamp Assy

15

24L3-02290

24L3-02290-. Lamp Assy With Cap

16

24L3-02300

24L3-02300-. Screw With Washer

17

24L3-02310

24L3-02310-. Screw With Washer

18

24L3-02320

24L3-02320-. Screw-Tapping

19

24L3-02330

24L3-02330-. Screw-Tapping

2

24L3-02150

24L3-02150-. Fuel Gauge Inner Assy

3

24L3-02160

24L3-02160-. Water Temp Inner Assy

4

24L3-02170

24L3-02170-. Oil Temp Inner Assy

5

24L3-02180

24L3-02180-. Volt Gauge Inner Assy

6

24L3-02190

24L3-02190-. Plate-Decoration

7

24L3-02210

24L3-02210-. Lens-Color

8

24L3-02220

24L3-02220-. Window Plate Sub Assy

9

24L3-02230

24L3-02230-. Case

N12

24L3-02260

24L3-02260-. Pcb Sub Assy
