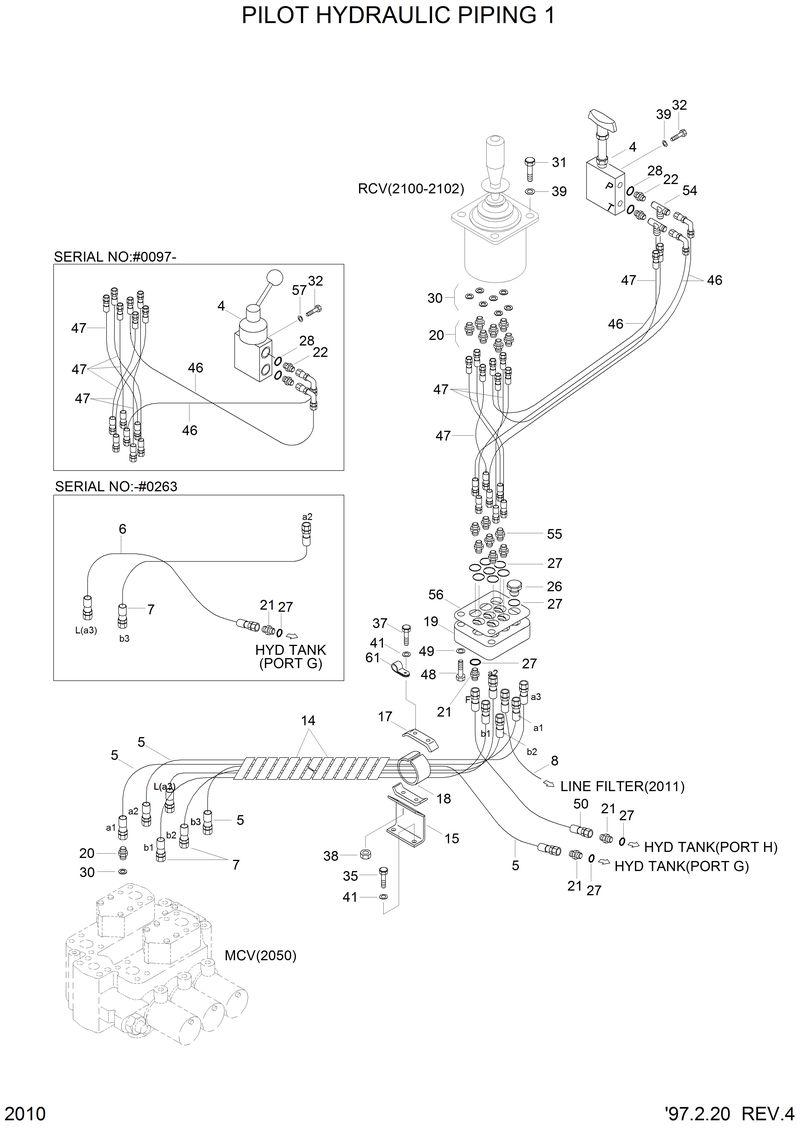

Запчасти Hyundai HL750 PILOT HYDRAULIC PIPING 1

P600-042036

P600-042036-Hose Assy-Thd

31L1-0142

31L1-0142-Protector-Plastic

P600-042036

P600-042036-Hose Assy-Thd

P600-042040

P600-042040-Hose Assy-Thd

P600-042040

P600-042040-Hose Assy-Thd

31L7-10010

31L7-10010-Safety Valve

31L1-0142

31L1-0142-Protector-Plastic

P620-042010

P620-042010-Hose Assy-Thd 0x90

P620-042010

P620-042010-Hose Assy-Thd 0x90

S015-080502

S015-080502-Bolt-Hex

15

31L3-0379

31L3-0379-Support

17

31L3-0377

31L3-0377-Clamp

18

31L3-0378

31L3-0378-Grommet

19

34L1-01490

34L1-01490-Block

20

P010-120002

P010-120002-Connector

21

P010-110002

P010-110002-Connector

22

P010-110013

P010-110013-Connector

26

P220-110102

P220-110102-Plug-Hex

27

S631-011001

S631-011001-O-Ring

28

S631-014001

S631-014001-O-Ring

30

P391-040000

P391-040000-Washer-Copper

31

S015-060252

S015-060252-Bolt-Hex

32

S015-060502

S015-060502-Bolt-Hex

35

S017-100202

S017-100202-Bolt-Hex

37

S017-100852

S017-100852-Bolt-Hex

38

S205-101002

S205-101002-Nut-Hex

39

S411-060002

S411-060002-Washer-Spring

4

34L3-00070

34L3-00070-Safety Valve

41

S411-100002

S411-100002-Washer-Spring

47

P600-042007

P600-042007-Hose Assy-Thd 0x0

48

S017-120452

S017-120452-Bolt-Hex

49

S441-120002

S441-120002-Washer-Hardened

50

P600-042011

P600-042011-Hose Assy-Thd 0x0

54

32E6-10460

32E6-10460-Tee-Swevel Nut

55

P101-104046

P101-104046-Connector-Long

56

74L3-00570

74L3-00570-Pad-Rubber

57

S403-082002

S403-082002-Washer-Plain

6

P600-042044

P600-042044-Hose Assy-Thd

61

S593-000702

S593-000702-Clip-Harness

8

P620-042022

P620-042022-Hose Assy-Thd 0x90
