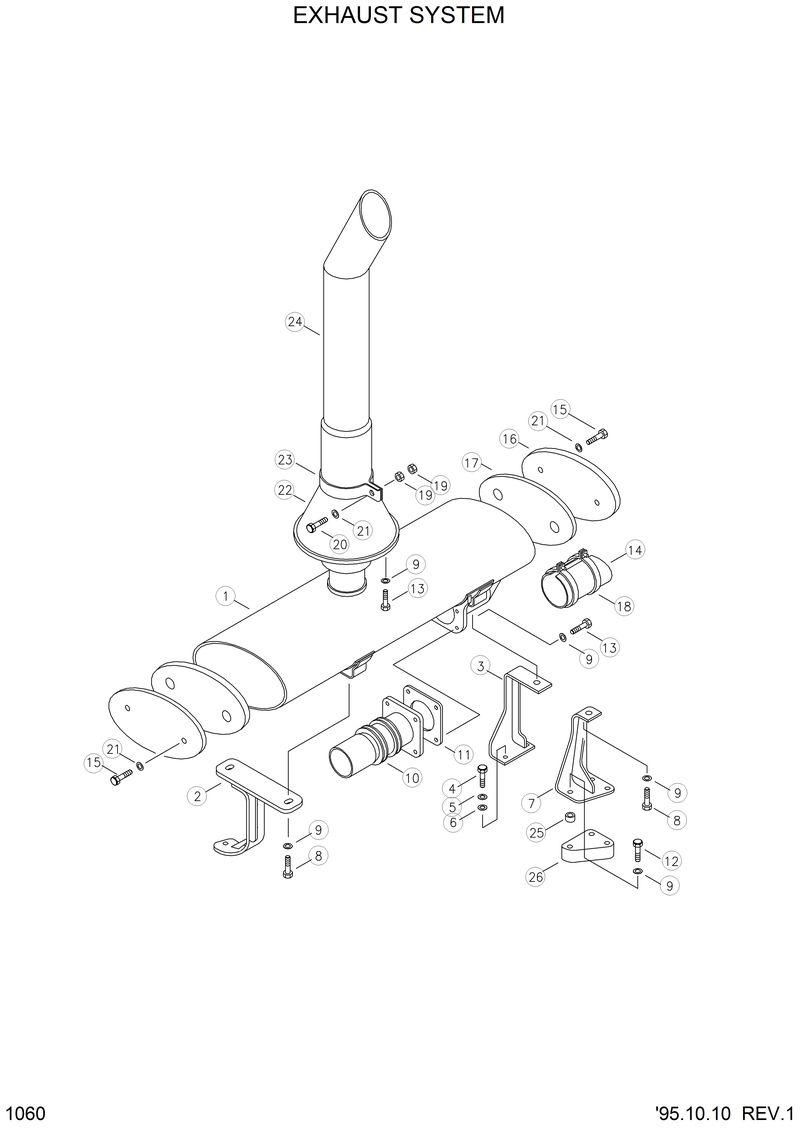

Запчасти Hyundai HL750 EXHAUST SYSTEM

14L3-00162

14L3-00162-Bracket Wa

14L3-00173

14L3-00173-Bracket Wa

14L3-00991

14L3-00991-Bracket Wa

1

14L3-00151

14L3-00151-Muffler Assy

10

14L3-00211

14L3-00211-Pipe Wa

11

14L3-00220

14L3-00220-Gasket

12

S017-100452

S017-100452-Bolt-Hex

13

S017-100302

S017-100302-Bolt-Hex

14

14L3-00240

14L3-00240-Insulator

15

S017-120202

S017-120202-Bolt-Hex

16

14L3-00250

14L3-00250-Plate-Screen

17

14L3-00260

14L3-00260-Insulator

18

S520-085000

S520-085000-Clamp-Hose

19

S205-121002

S205-121002-Nut-Hex

2

14L3-00161

14L3-00161-Bracket Wa

20

S017-120402

S017-120402-Bolt-Hex

21

S441-120002

S441-120002-Washer-Hardened

22

14L3-00180

14L3-00180-Pipe Wa

23

14L3-00190

14L3-00190-Clamp

24

14L3-00200

14L3-00200-Pipe-Tail

25

14L3-01000

14L3-01000-Spacer

26

14L3-00232

14L3-00232-Spacer

3

14L3-00172

14L3-00172-Bracket Wa

4

S015-080352

S015-080352-Bolt-Hex

5

S411-080002

S411-080002-Washer-Spring

6

S403-081002

S403-081002-Washer-Plain

7

14L3-00990

14L3-00990-Bracket Wa

8

S017-100252

S017-100252-Bolt-Hex

9

S441-100002

S441-100002-Washer-Hardened
