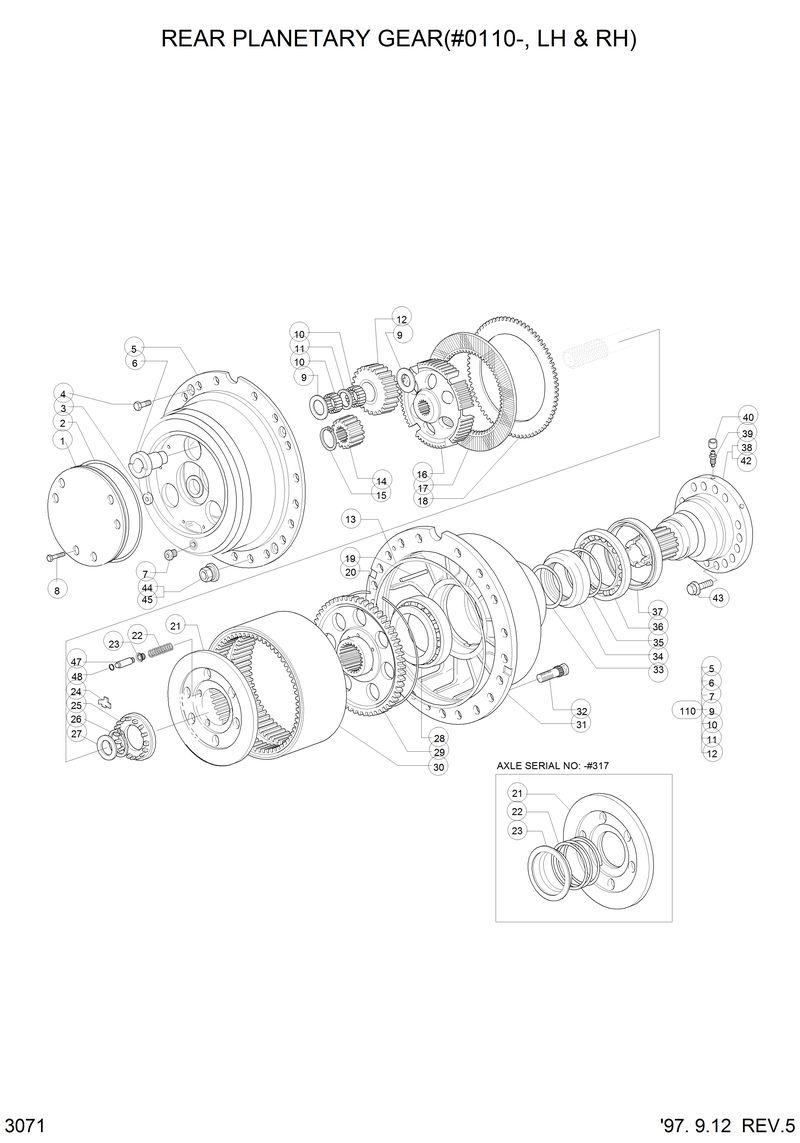

Запчасти Hyundai HL750 REAR PLANETARY GEAR(#0110-, LH & RH)

3146803

3146803-Shim-Pressure Plate

3154543

3154543-Shim-Pressure Plate

3146813

3146813-Shim-Pressure Plate

1

3170903

3170903-Cover

10

3127413

3127413-Bearing

11

3120363

3120363-Spacer

110

3170933

3170933-Support-Complete

12

3130713

3130713-Gear-Diff Pinion

13

70393

70393-Gasket

14

3130753

3130753-Gear-Diff Side

15

70390

70390-Ring-Snap

16

3170883

3170883-Disk-Drum Brake

17

3146363

3146363-Disk-Brake

18

3146793

3146793-Shim-Pressure Plate

19

3137883

3137883-Pin

2

70421

70421-Gasket

20

3120253

3120253-Ring-Snap

21

3170873

3170873-Plate-Pressure

22

3137863

3137863-Spring

23

3137873

3137873-Ring

24

3128073

3128073-Plate-Small

25

3130133

3130133-Nut-Locking

26

70502

70502-Ring-Snap

27

3137813

3137813-Thrust-Bearing

28

70564

70564-Bearing

29

3137803

3137803-Support-Wheel

3

3112993

3112993-Plate-Small

30

3170863

3170863-Wheel

31

3170603

3170603-Hub-Wheel

32

3112273

3112273-Bolt-Stud

33

70562

70562-Gasket

34

3149503

3149503-Piston

35

70719

70719-Gasket

36

70973

70973-Bearing

37

71526

71526-Gasket

38

3198293

3198293-Spindle-Rh W/Hub

39

71590

71590-Breather-Oil

4

70311

70311-Screw

40

71591

71591-Cowl

42

3198273

3198273-Spindle-Lh W/Hub

43

70625

70625-Screw

44

3114173

3114173-Nut

45

3118733

3118733-Nut

47

71638

71638-Locking Ring-Spring

5

3170523

3170523-Support

6

3170893

3170893-Pin

7

70591

70591-Plug

8

70382

70382-Screw

9

3120323

3120323-Plate-Thrust

N22

3236633

3236633-Spring

N23

3236623

3236623-Cup

N46

3236643

3236643-Pin
