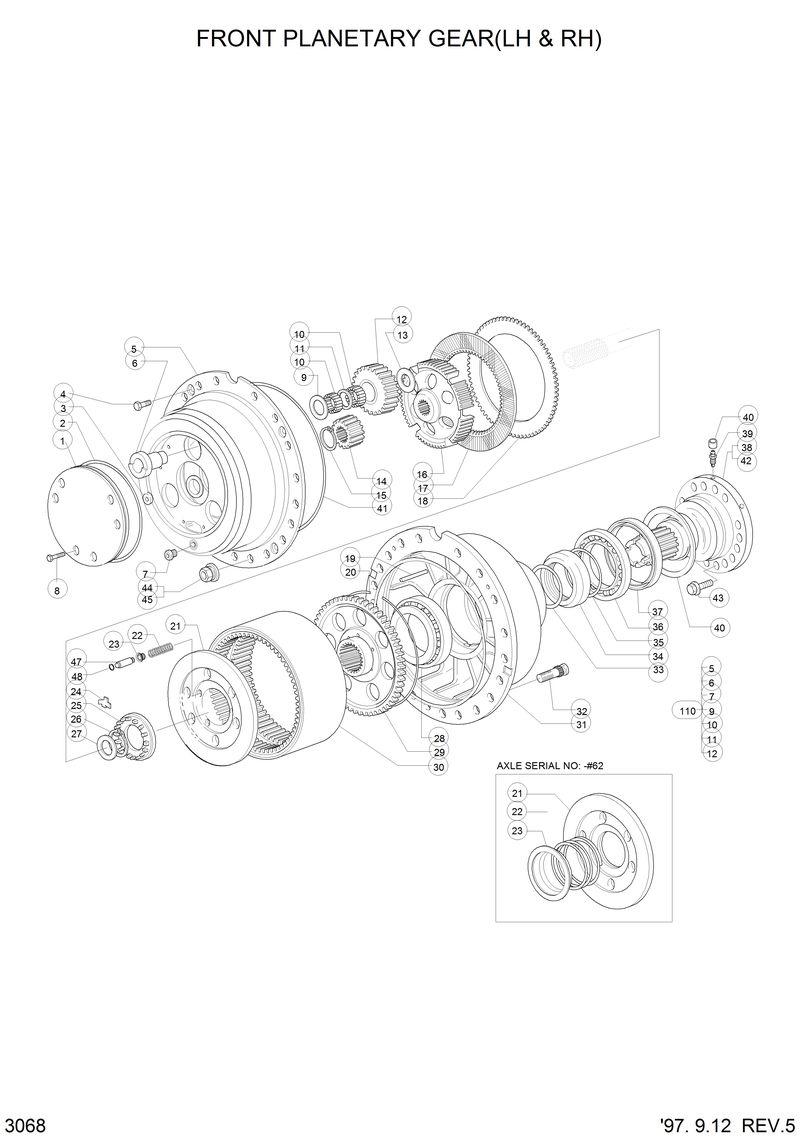

Запчасти Hyundai HL750 FRONT PLANETARY GEAR(#0110-, LH & RH)

3200513

3200513-Shim-Pressure Plate

3146843

3146843-Shim-Pressure Plate

3146833

3146833-Shim-Pressure Plate

1

3147213

3147213-Cover

10

3127383

3127383-Bearing

11

3120933

3120933-Spacer

110

3170923

3170923-Support-Complete

12

3163713

3163713-Gear-Side

13

3127363

3127363-Shim-Thrust Bearing

14

3163663

3163663-Gear-Side

15

70395

70395-Ring-Snap

16

3150693

3150693-Disc-Drum Brake

17

3146743

3146743-Disc-Brake

18

3146823

3146823-Shim-Pressure Plate

19

3140153

3140153-Pin

2

70572

70572-Gasket

20

3120843

3120843-Ring-Spring Lock

21

3140163

3140163-Plate-Pressure

22

3137863

3137863-Spring

23

3137873

3137873-Ring

24

3128073

3128073-Plate-Small

25

3130133

3130133-Nut-Locking

26

70502

70502-Ring-Snap

27

3137813

3137813-Thrust-Bearing

28

70564

70564-Bearing

29

3217423

3217423-Support-Wheel

3

3112993

3112993-Plate-Small

30

3140103

3140103-Gear

31

3218883

3218883-Hub-Wheel

32

3112273

3112273-Bolt-Stud

33

70720

70720-Gasket

34

3149513

3149513-Piston

35

70430

70430-Gasket

36

71527

71527-Bearing

37

71528

71528-Gasket

38

3217543

3217543-Spindle-W/Hub-Lh

39

71590

71590-Breather-Oil

4

70311

70311-Screw

40

3220833

3220833-Guard

41

70579

70579-Gasket

42

3217523

3217523-Spindle-W/Hub-Rh

43

70531

70531-Screw

44

3114173

3114173-Nut

45

3118733

3118733-Nut

46

71591

71591-Cowl

48

71638

71638-Locking Ring-Spring

5

3170503

3170503-Support

6

3140213

3140213-Pin

7

70591

70591-Plug

8

70382

70382-Screw

9

3130043

3130043-Shim-Thrust Bearing

N22

3236633

3236633-Spring

N23

3236623

3236623-Cup

N47

3236643

3236643-Pin
