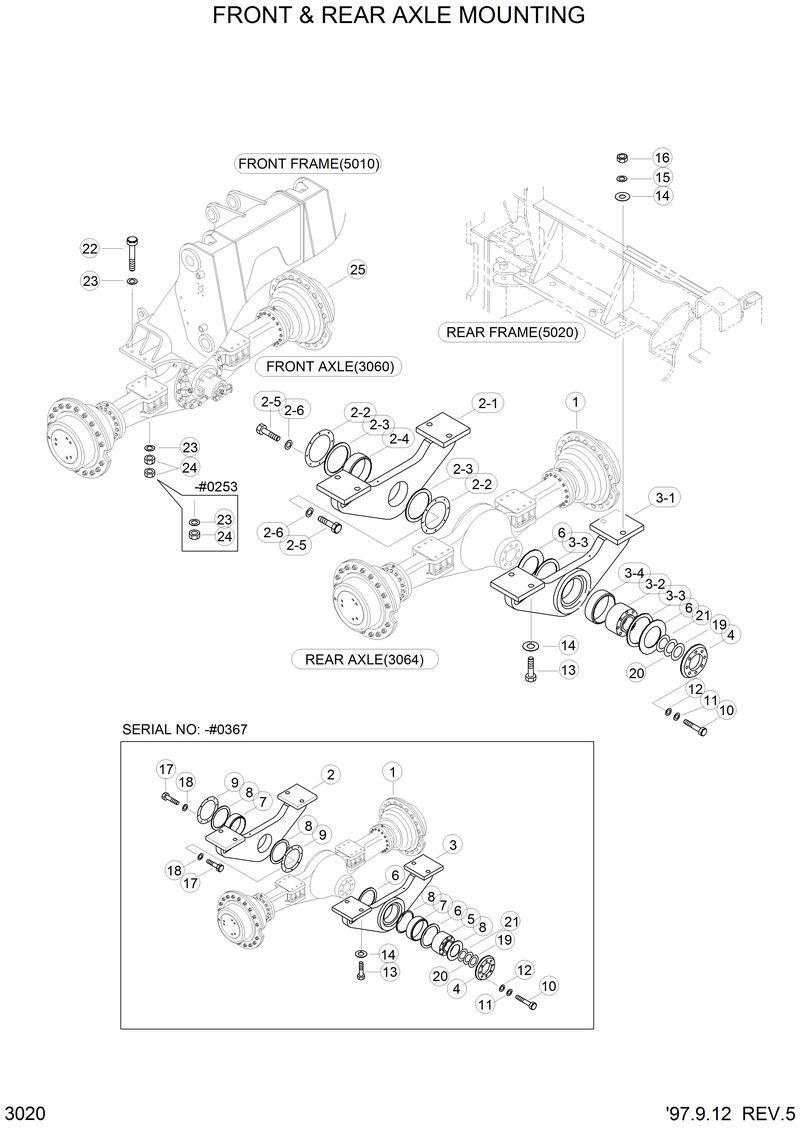

Запчасти Hyundai HL750 FRONT & REAR AXLE MOUNTING

84L3-00110

84L3-00110-Front Axle Assy

84L3-00040

84L3-00040-Front Axle Assy

S206-241002

S206-241002-Nut-Hex

S441-240002

S441-240002-Washer-Hardened

S441-240004

S441-240004-Washer-Hardened

S018-242502

S018-242502-Bolt-Hex

S018-242302

S018-242302-Bolt-Hex

S206-241002

S206-241002-Nut-Hex

81L3-01141

81L3-01141-Bushing

84L3-00120

84L3-00120-Rear Axle Assy

84L3-00170

84L3-00170-Support Assy-Rear

1

81L3-3201

81L3-3201-Rear Axle Assy

10

S018-141302

S018-141302-Bolt-Hex

11

S411-140002

S411-140002-Washer-Spring

12

S441-140002

S441-140002-Washer-Hardened

13

S018-271052

S018-271052-Bolt-Hex

14

S441-270002

S441-270002-Washer-Hardened

15

S411-270002

S411-270002-Washer-Spring

16

S206-271002

S206-271002-Nut-Hex

17

S015-060152

S015-060152-Bolt-Hex

18

S403-062002

S403-062002-Washer-Plain

19

81L3-0116

81L3-0116-Shim

2

81L3-01040

81L3-01040-Support Wa

2-1

81L3-01040

81L3-01040-. Support Wa

2-2

81L3-0115

81L3-0115-. Cover

2-5

S015-060152

S015-060152-. Bolt-Hex

2-6

S403-062002

S403-062002-. Washer-Plain

20

81L3-0117

81L3-0117-Shim

21

81L3-0118

81L3-0118-Shim

22

S017-202002

S017-202002-Bolt-Hex

23

S411-200002

S411-200002-Washer-Spring

24

S205-201002

S205-201002-Nut-Hex

25

81L3-3101

81L3-3101-Axle Assy-Front

3

81L3-01090

81L3-01090-Support Wa

3-1

81L3-01090

81L3-01090-. Support Wa

3-2

81L3-0112

81L3-0112-. Shaft

3-3

S700-160309

S700-160309-. Dust Seal-Dkiy Type

3-3

S700-160309

S700-160309-. Dust Seal-Dkiy Type

3-4

81L3-01141

81L3-01141-. Bushing

3-4

81L3-01141

81L3-01141-. Bushing

4

81L3-0111

81L3-0111-Cover

5

81L3-0112

81L3-0112-Shaft

6

81L3-0113

81L3-0113-Disc

7

81L3-0114

81L3-0114-Bushing

8

81L3-0121

81L3-0121-Seal-Dust

9

81L3-0115

81L3-0115-Cover

N2

84L3-00160

84L3-00160-Support Assy-Front
