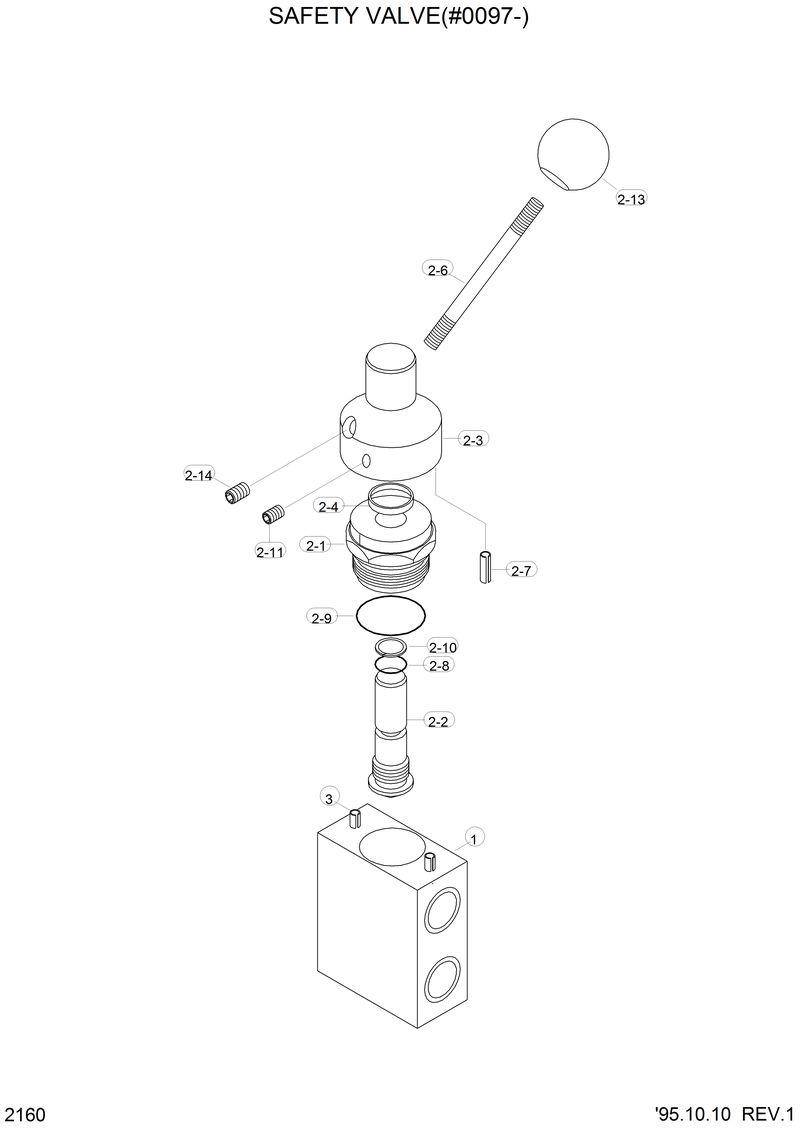

Запчасти Hyundai HL750 SAFETY VALVE

*

31L7-10010

31L7-10010-Safety Valve

1

AXP14944

AXP14944-. Body

2

BXP8718-04

BXP8718-04-. Lever Adjuster

2-1

AXP8729

AXP8729-.. Retainer

2-10

@

@-.. Ring-Back Up

2-11

@

@-.. Plunger-Spring

2-13

@

@-.. Knob-Red

2-14

@

@-.. Set Screw-Socket

2-2

AXP8730

AXP8730-.. Adjust Stem

2-3

BPX15090

BPX15090-.. Housing

2-4

APX3824

APX3824-.. Ring-Clutch

2-6

APX15091

APX15091-.. Handle

2-7

@

@-.. Pin-Spring

2-9

@

@-.. O-Ring

2-9

@

@-.. O-Ring

3

@

@-. Pin-Spring

N

@

@-Not Individually Supplied
