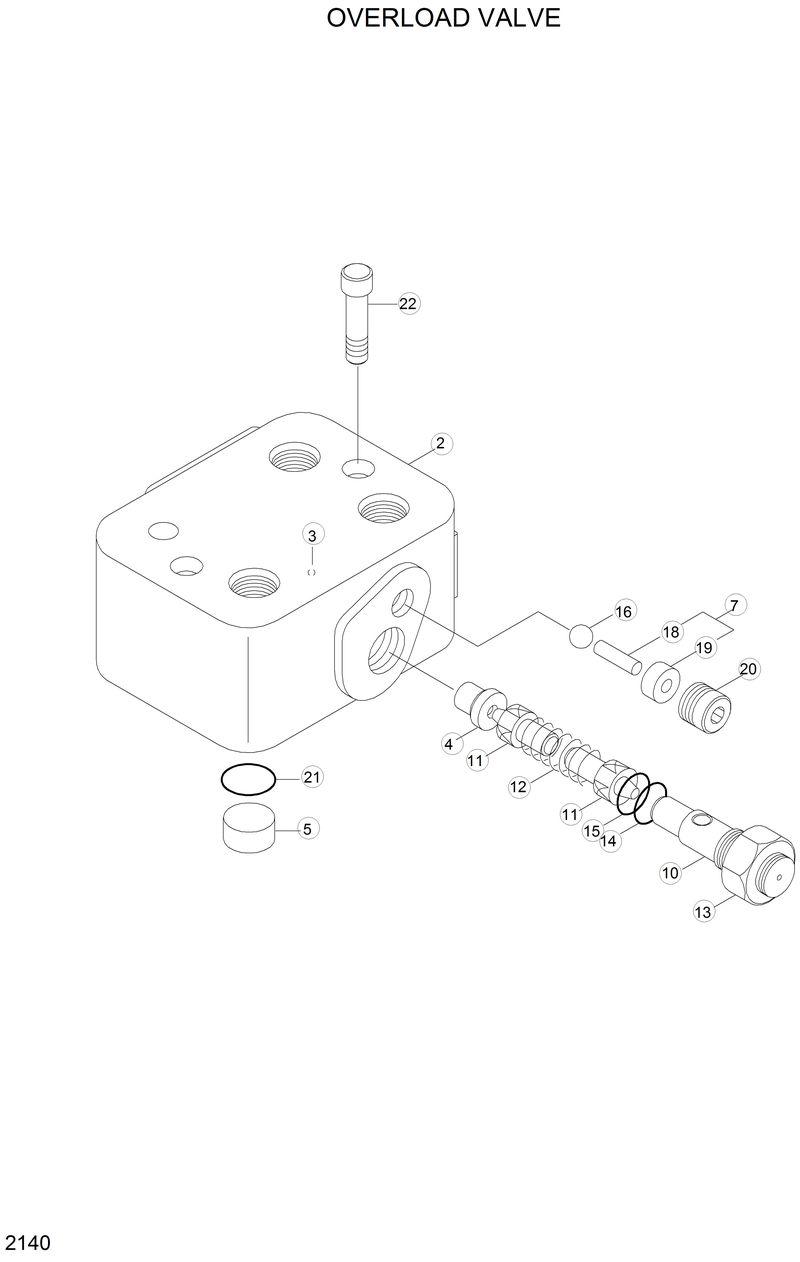

Запчасти Hyundai HL750 OVERLOAD VALVE

*

31L3-0006

31L3-0006-Overload Valve

1

BJ0148A-001

BJ0148A-001-. Housing Assy

10

BJ0006B-005

BJ0006B-005-. Screw-Adjusting

11

BJ0007A

BJ0007A-. Cone-Valve

13

A45049

A45049-. Nut-Lock

16

095881-022

095881-022-. Ball

17

BJ0040A

BJ0040A-. Plug Sub Assy

18

@

@-.. Pin

19

@

@-.. Bushing

2

@

@-.. Housing

20

BJ0038A

BJ0038A-. Plug

3

@

@-.. Ball

4

@

@-.. Seat-Valve

5

BJ0050A

BJ0050A-. Spacer

K

BA0005A

BA0005A-Seal Kit

K14

A40001-10

A40001-10-. O-Ring

K15

A40001-09

A40001-09-. O-Ring

K21

A40001-22

A40001-22-. O-Ring

N

@

@-Not Individually Supplied

N12

BJ0008B-005

BJ0008B-005-. Valve-Spring

N22

A45021-45

A45021-45-. Bolt
