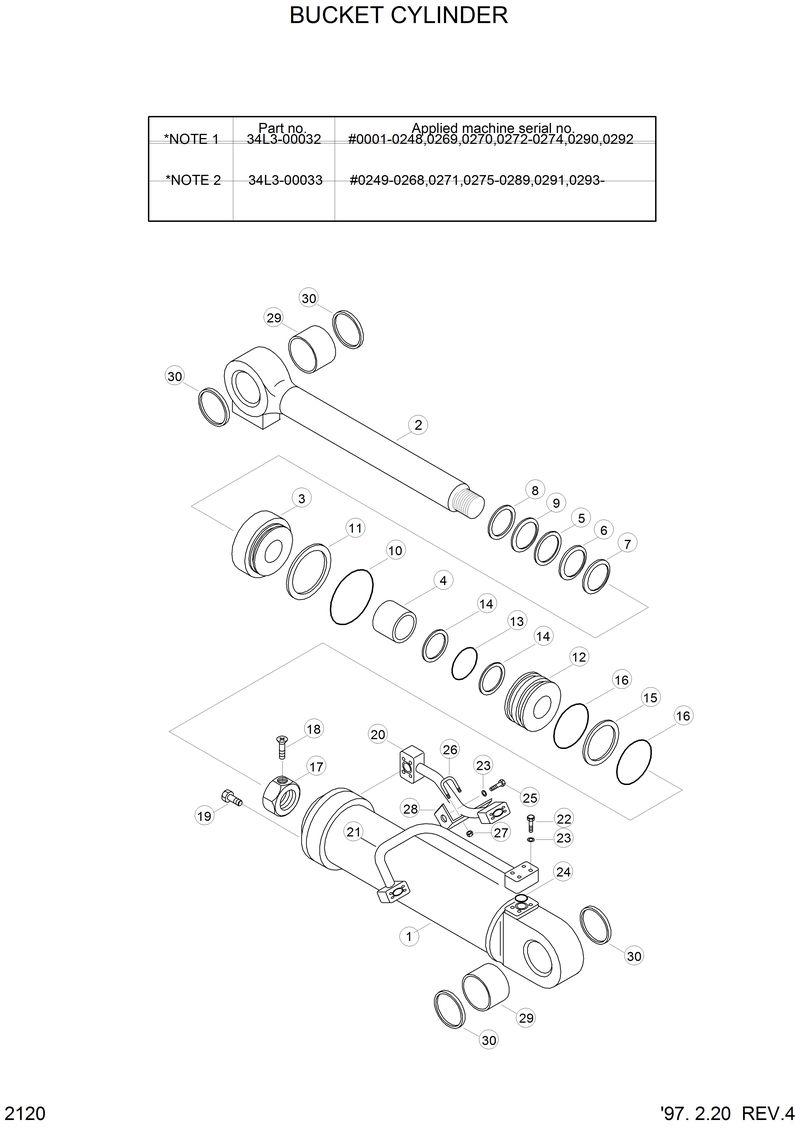

Запчасти Hyundai HL750 BUCKET CYLINDER

34L3-00033

34L3-00033-Bucket Cylinder

31Y2-02131

31Y2-02131-. Gland

31Y2-02021

31Y2-02021-. Tube Assy

S109-160604

S109-160604-. Bolt-Socket

*

34L3-00032

34L3-00032-Bucket Cylinder

1

31Y2-02020

31Y2-02020-. Tube Assy

12

31Y2-02140

31Y2-02140-. Piston

17

31YC-62160

31YC-62160-. Nut-Lock

18

S114-100124

S114-100124-. Screw-Set

19

S109-140604

S109-140604-. Bolt-Socket

2

31Y2-02100

31Y2-02100-. Rod Assy

20

31Y2-02170

31Y2-02170-. Pipe Assy-R

21

31Y2-02160

31Y2-02160-. Pipe Assy-B

22

S017-100602

S017-100602-. Bolt-Hex

23

S411-100002

S411-100002-. Washer-Spring

25

S011-100152

S011-100152-. Bolt-Hex

26

S071-022730

S071-022730-. U-Bolt

27

S201-101002

S201-101002-. Nut-Hex

28

31Y2-02150

31Y2-02150-. Bracket

29

31YC-13060

31YC-13060-. Bush-Pin

3

31Y2-02130

31Y2-02130-. Gland

4

S731-080040

S731-080040-. Bushing-Du

9

Y190-094000

Y190-094000-. Ring-Snap

K

31Y2-02180

31Y2-02180-Seal Kit (5-8,10,

K10

S631-140004

S631-140004-. O-Ring

K11

S641-140003

S641-140003-. Ring-Back Up

K13

S631-080004

S631-080004-. O-Ring

K14

S641-080003

S641-080003-. Ring-Back Up

K15

Y410-150000

Y410-150000-. Seal-Piston

K16

Y310-150000

Y310-150000-. Ring-Wear

K24

Y171-024004

Y171-024004-. O-Ring

K30

Y000-090000

Y000-090000-. Seal-Dust

K5

Y200-080011

Y200-080011-. Seal-Rod

K6

Y180-080020

Y180-080020-. Ring-Back Up

K7

Y240-080011

Y240-080011-. Ring-Buffer

K8

Y110-080011

Y110-080011-. Wiper-Dust
