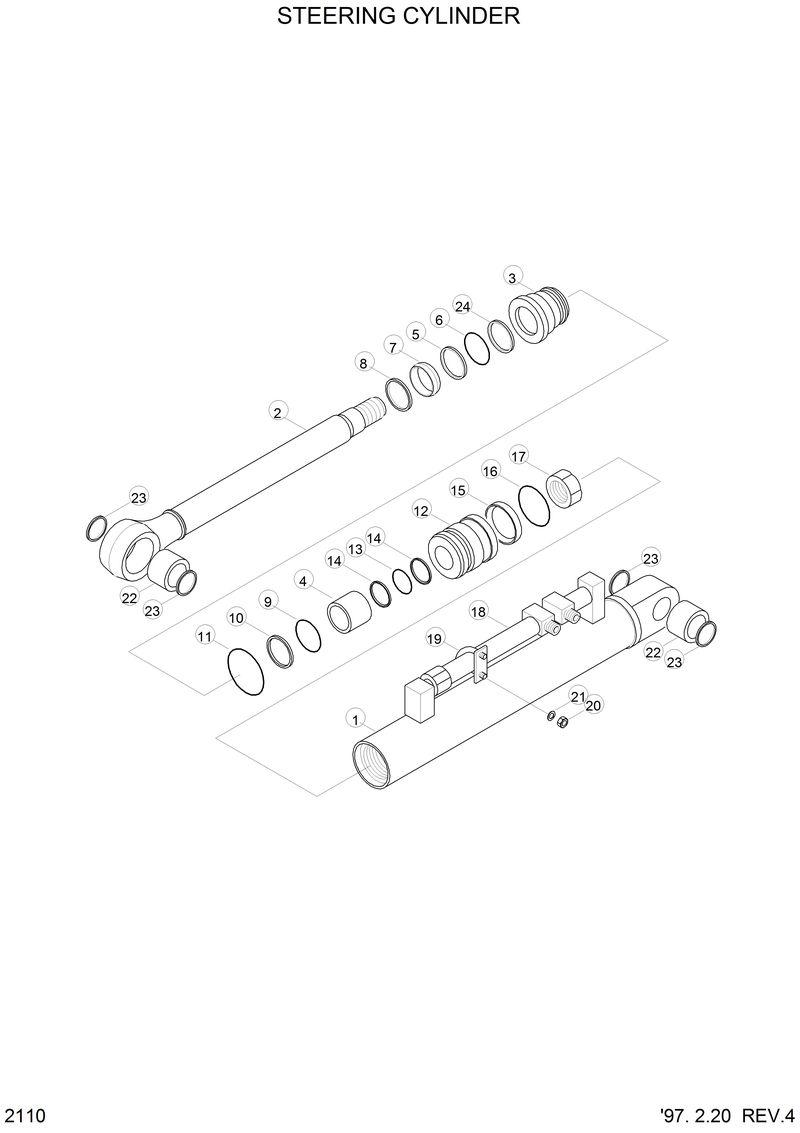

Запчасти Hyundai HL750 STEERING CYLINDER

31Y2-02200

31Y2-02200-. Tube Assy-Rh

34L3-00051

34L3-00051-Steering Cylinder-Rh

12

31Y2-02270

31Y2-02270-. Piston

17

31YC-65180

31YC-65180-. Nut-Nylon

18

31Y2-02300

31Y2-02300-. Pipe Assy-R

19

S071-022230

S071-022230-. U-Bolt

20

S201-101002

S201-101002-. Nut-Hex

21

S411-100002

S411-100002-. Washer-Spring

22

Y820-040001

Y820-040001-. Bearing-Spherical

23

S602-062004

S602-062004-. Ring-Retaining C-Type

3

31Y2-00870

31Y2-00870-. Gland

4

S731-040030

S731-040030-. Bushing-Du

K

31Y2-02310

31Y2-02310-Seal Kit

K10

S642-065003

S642-065003-. Ring-Back Up

K11

S632-070001

S632-070001-. O-Ring

K13

S632-030004

S632-030004-. O-Ring

K14

S642-030003

S642-030003-. Ring-Back Up

K15

Y410-070000

Y410-070000-. Seal-Piston

K16

Y310-070000

Y310-070000-. Ring-Wear

K5

Y200-040011

Y200-040011-. Seal-Rod

K6

Y180-040020

Y180-040020-. Ring-Back Up

K7

Y110-040011

Y110-040011-. Wiper-Dust

K8

Y190-052000

Y190-052000-. Ring-Snap

K9

S632-065004

S632-065004-. O-Ring

N*

34L3-00041

34L3-00041-Steering Cylinder-Lh

N1

31Y2-02190

31Y2-02190-. Tube Assy-Lh

N2

31Y2-02250

31Y2-02250-. Rod Assy
