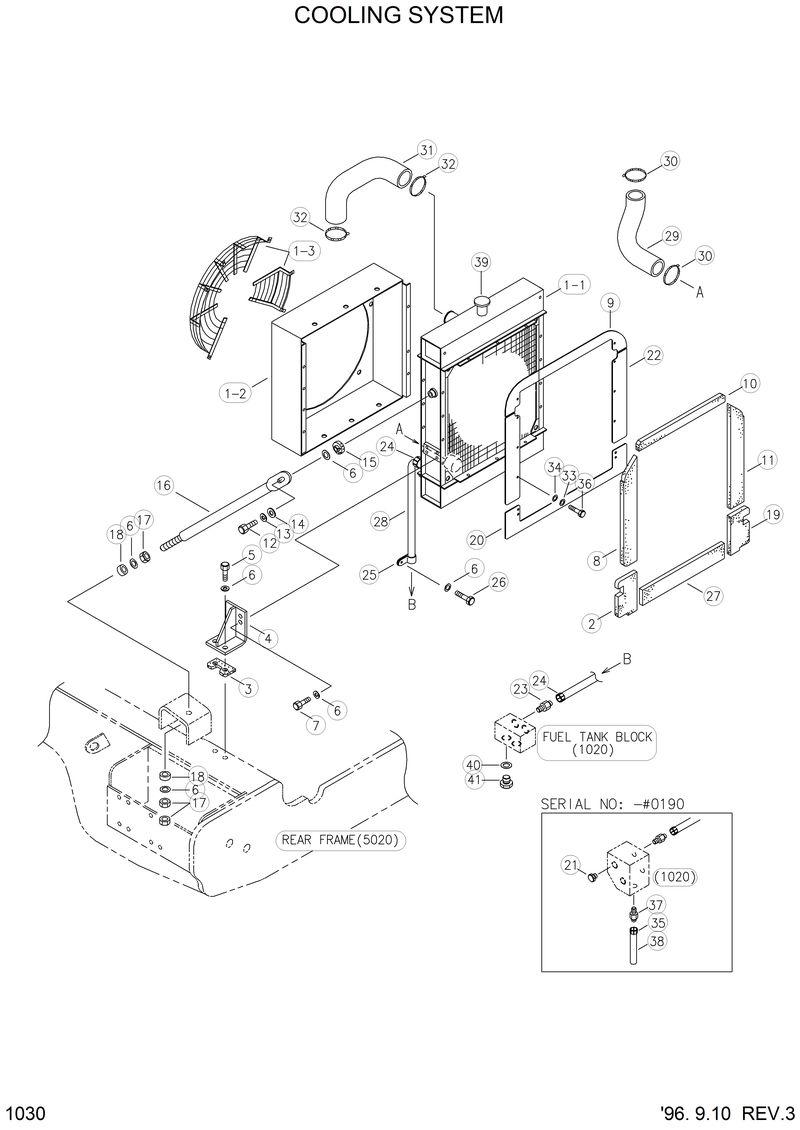

Запчасти Hyundai HL750 COOLING SYSTEM

14L3-00822

14L3-00822-Radiator Total

14L3-00102

14L3-00102-. Radiator Assy

1

14L3-00821

14L3-00821-Radiator Total

1-1

14L3-00101

14L3-00101-. Radiator Assy

1-2

14L3-00940

14L3-00940-. Shroud Assy

1-3

14L3-00900

14L3-00900-. Guard-Fan

10

14L3-00111

14L3-00111-Sponge

11

14L3-00121

14L3-00121-Sponge

12

S017-100352

S017-100352-Bolt-Hex

13

S411-100002

S411-100002-Washer-Spring

14

S403-102002

S403-102002-Washer-Plain

15

11L1-1005

11L1-1005-Grommet

16

14L3-00130

14L3-00130-Stay

17

S205-121002

S205-121002-Nut-Hex

18

14L3-00140

14L3-00140-Grommet

19

14L3-00272

14L3-00272-Sponge

2

14L3-00052

14L3-00052-Sponge

20

14L3-00281

14L3-00281-Plate-Screen

21

14L3-00410

14L3-00410-Plug

22

14L3-01110

14L3-01110-Plate-Screen

23

P090-100808

P090-100808-Connector

24

S572-240002

S572-240002-Clamp-Hose Wire Type

25

31E7-0315

31E7-0315-Clamp-Hose

26

S017-120152

S017-120152-Bolt-Hex

27

14L3-00301

14L3-00301-Sponge

28

P710-081022

P710-081022-Hose

29

12L3-0112

12L3-0112-Hose-Outlet

3

14L3-00060

14L3-00060-Pad-Rubber

30

S520-070000

S520-070000-Clamp-Hose

31

12L3-0111

12L3-0111-Hose-Inlet

32

S520-055000

S520-055000-Clamp-Hose

33

S411-080002

S411-080002-Washer-Spring

34

S403-082002

S403-082002-Washer-Plain

35

S572-220002

S572-220002-Clamp-Hose Wire Type

36

S015-080202

S015-080202-Bolt-Hex

37

P090-100806

P090-100806-Connector-Hose

38

P710-081004

P710-081004-Hose-Vent

39

12101810

12101810-Cap

4

14L3-00070

14L3-00070-Bracket

40

P392-180000

P392-180000-Washer-Copper

41

P220-220106

P220-220106-Plug

5

S017-120502

S017-120502-Bolt-Hex

6

S441-120002

S441-120002-Washer-Hardened

7

S017-120302

S017-120302-Bolt-Hex

8

14L3-00081

14L3-00081-Sponge

9

14L3-00092

14L3-00092-Plate-Screen
