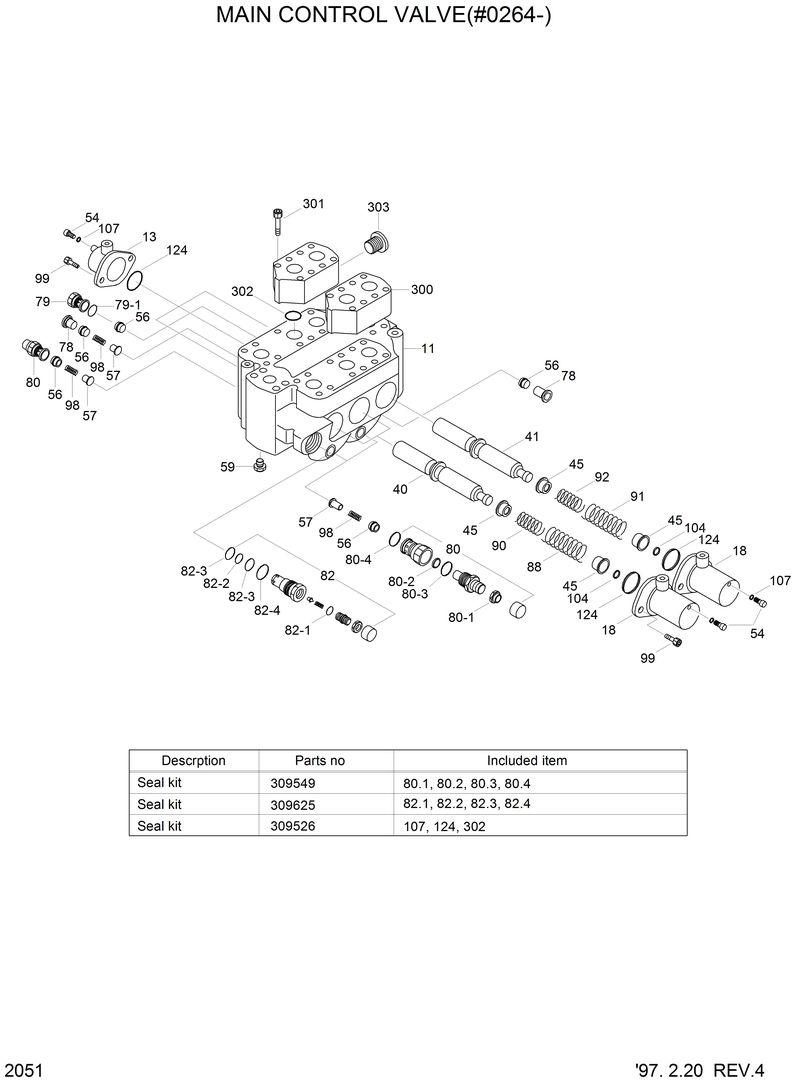

Запчасти Hyundai HL750 MAIN CONTROL VALVE(#0264-)

*

31L3-00021

31L3-00021-Mcv

104

001053

001053-. Ring-Snap

13

148417

148417-. Cover-Short

18

147031

147031-. Cover-Long

300

642711

642711-. Plate

301

003233

003233-. Bolt

303

012431

012431-. Screw-Locking

45

147042

147042-. Retainer-Spring

54

117640

117640-. Screw-Bleed

56

146173

146173-. Screw-Locking

57

152557

152557-. Cone

59

023938

023938-. Screw-Locking

78

316267

316267-. Screw-Locking

79

316265

316265-. Check Valve

79.1

002140

002140-.. O-Ring

80

335868

335868-. Valve-P/Relief

82

304674

304674-. Main Relief Valve

88

001684

001684-. Spring-Compression

90

017674

017674-. Spring-Compression

91

017792

017792-. Spring-Compression

92

017793

017793-. Spring-Compression

98

011238

011238-. Spring-Compression

99

003019

003019-. Screw-Bleed

K

309626

309626-Seal Kit

K

309625

309625-Seal Kit

K

309549

309549-Seal Kit

K107

@

@-. Ring-Seal

K302

@

@-. O-Ring

K302

@

@-. O-Ring

K80.1

@

@-.. Seal-Lock Nut

K80.2

@

@-.. Seal-Piston

K82.3

@

@-.. Ring-Thrust

K82.4

@

@-.. O-Ring

K82.4

@

@-.. O-Ring

K82.4

@

@-.. O-Ring

K82.4

@

@-.. O-Ring

K82.4

@

@-.. O-Ring

N

@

@-Not Individually Supplied

N11

@

@-. Housing

N41

@

@-. Spool

N41

@

@-. Spool
