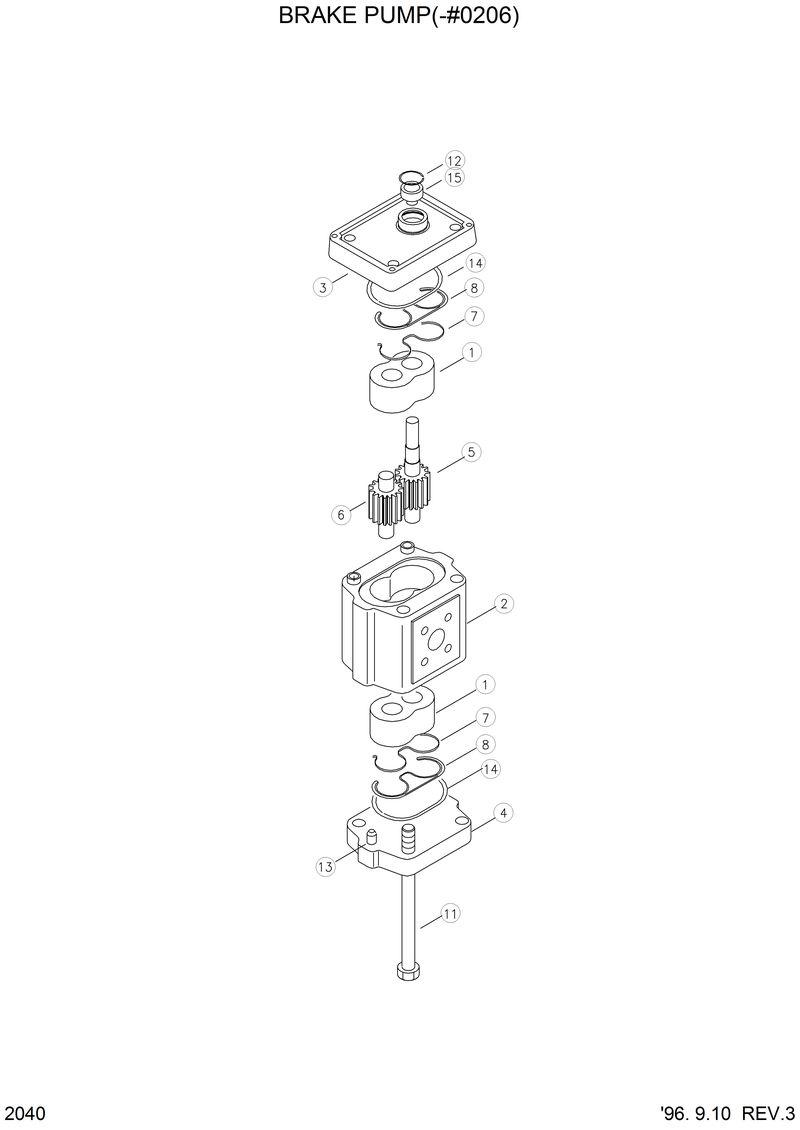

Запчасти Hyundai HL750 BRAKE PUMP(-#0206)

*

B11120-34800

B11120-34800-Brake Pump

1

B22120-00100

B22120-00100-. Bearing & Bushing

10

B50090-10004

B50090-10004-. Plug

11

S57121-02632

S57121-02632-. Screw Assy

12

B57252-22975

B57252-22975-. Ring-Snap

13

B57310-21290

B57310-21290-. Pin-Dowel

2

B30206-91000

B30206-91000-. Housing

3

B30700-40000

B30700-40000-. Flange

5

B31116-56000

B31116-56000-. Gear-Drive

6

B31113-99000

B31113-99000-. Gear-Idler

9

B50090-10002

B50090-10002-. Plug

K

91L3-27210

91L3-27210-Seal Kit

K14

B58920-10147

B58920-10147-. Seal

K15

B50210-50002

B50210-50002-. Seal-Shaft

K7

B31300-31000

B31300-31000-. Ring

K8

B31400-49000

B31400-49000-. Seal

N4

B30800-21000

B30800-21000-. Cover
