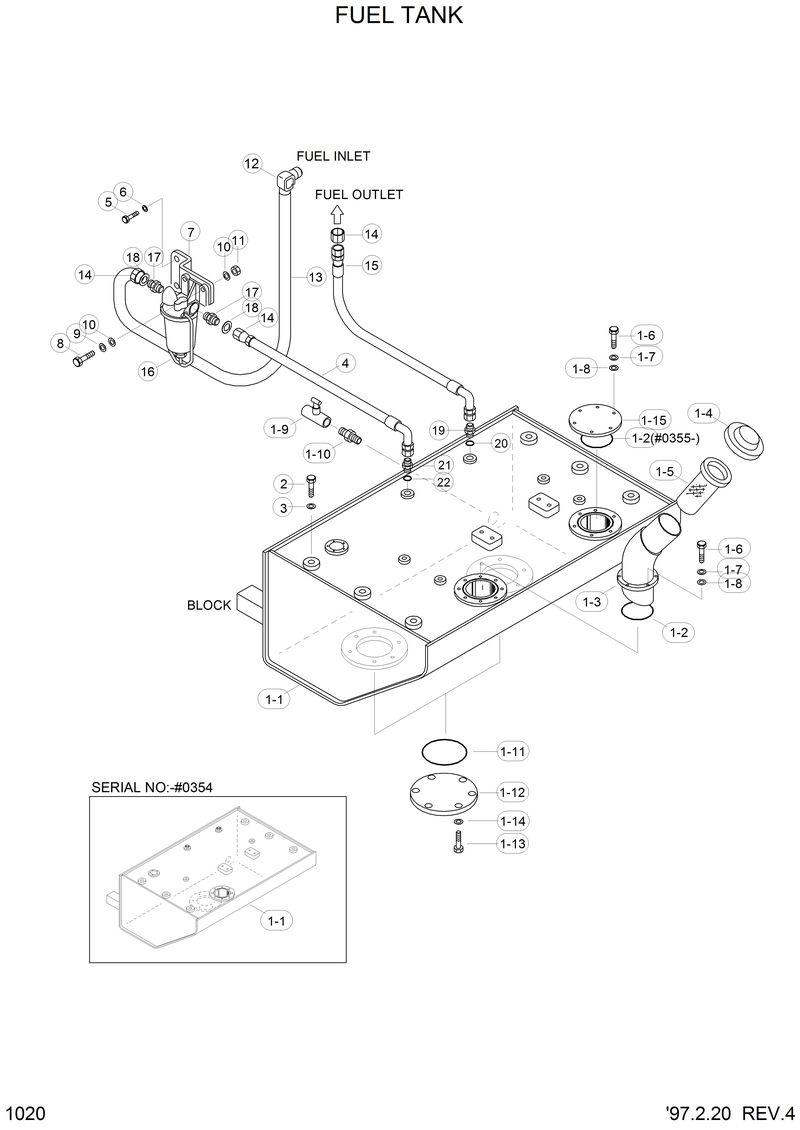

Запчасти Hyundai HL750 FUEL TANK

14L3-00422

14L3-00422-. Fuel Tank Wa

S632-105001

S632-105001-. O-Ring

S017-100252

S017-100252-. Bolt-Hex

S632-165001

S632-165001-. O-Ring

S015-080252

S015-080252-. Bolt-Hex

S015-080252

S015-080252-. Bolt-Hex

S411-080002

S411-080002-. Washer-Spring

S411-080002

S411-080002-. Washer-Spring

S403-082002

S403-082002-. Washer-Plain

S632-105001

S632-105001-. O-Ring

14L3-00425

14L3-00425-. Fuel Tank Wa

14L3-00882

14L3-00882-Fuel Tank Assy

14L3-00883

14L3-00883-Fuel Tank Assy

14L3-00884

14L3-00884-Fuel Tank Assy

14L3-00885

14L3-00885-Fuel Tank Assy

S441-100002

S441-100002-. Washer-Hardened

31E3-4526

31E3-4526-. Cover

14L3-00423

14L3-00423-. Fuel Tank Wa

14L3-00424

14L3-00424-. Fuel Tank Wa

S403-082002

S403-082002-. Washer-Plain

1

14L3-00881

14L3-00881-Fuel Tank Assy

1-1

14L3-00421

14L3-00421-. Fuel Tank Wa

1-10

P040-001111

P040-001111-. Connector

1-11

S632-150001

S632-150001-. O-Ring

1-12

11L1-0134

11L1-0134-. Flange

1-13

S017-120302

S017-120302-. Bolt-Hex

1-14

S441-120002

S441-120002-. Washer-Hardened

1-15

14L3-01530

14L3-01530-. Cover

1-3

14L3-00560

14L3-00560-. Filler Wa

1-4

E131-1038

E131-1038-. Filler Cap

1-5

E131-1039

E131-1039-. Strainer

1-9

E131-1006

E131-1006-. Valve-Needle

10

S403-082002

S403-082002-Washer-Plain

11

S205-081002

S205-081002-Nut-Hex

12

E111-2602

E111-2602-Fitting

13

12L3-01171

12L3-01171-Hose Assy

14

S520-015000

S520-015000-Clamp-Hose

15

14L3-00600

14L3-00600-Hose Assy

16

3908633

3908633-Filter-Fuel

17

11L4-02060

11L4-02060-Connector

18

P392-120000

P392-120000-Washer-Copper

19

P010-120002

P010-120002-Connector

2

S017-200402

S017-200402-Bolt-Hex

20

S631-011001

S631-011001-O-Ring

21

P010-120003

P010-120003-Connector

22

S631-014001

S631-014001-O-Ring

3

S441-200004

S441-200004-Washer-Hardened

4

14L3-00590

14L3-00590-Hose Assy

5

S017-120252

S017-120252-Bolt-Hex

6

S441-120002

S441-120002-Washer-Hardened

7

12L3-01480

12L3-01480-Bracket

8

S015-080252

S015-080252-Bolt-Hex

9

S411-080002

S411-080002-Washer-Spring
