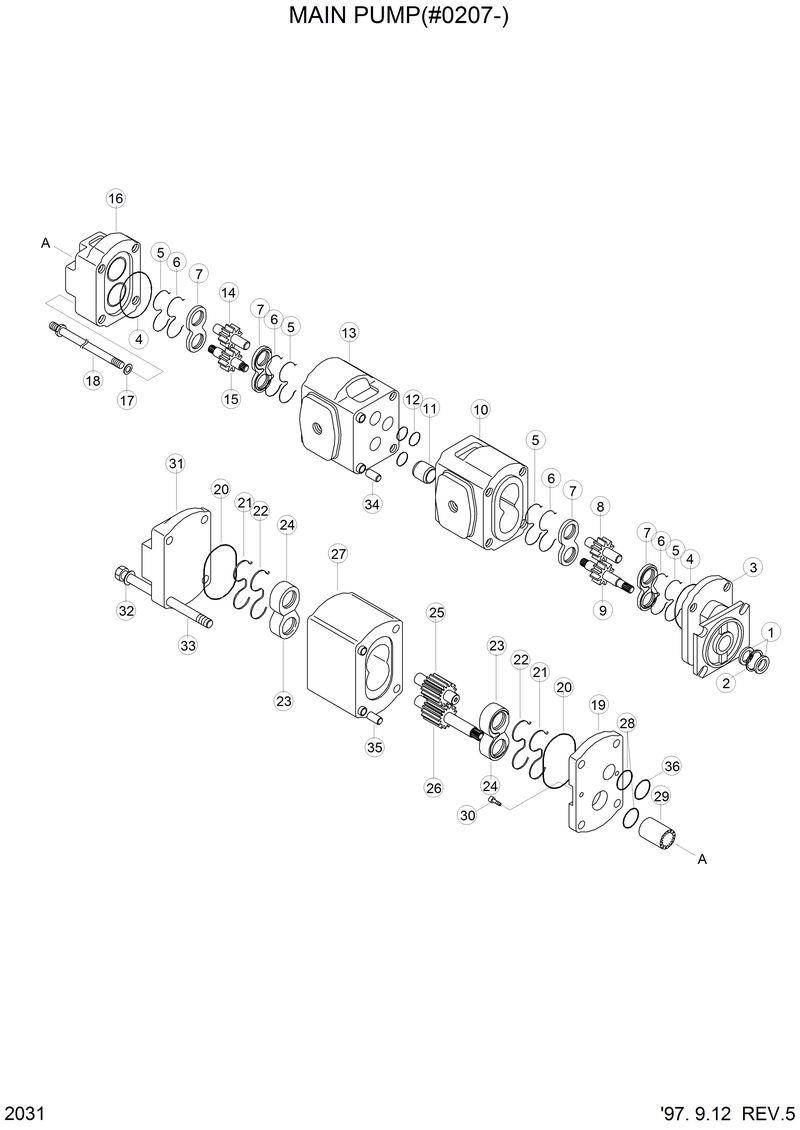

Запчасти Hyundai HL750 MAIN PUMP(#0207-)

*

34L3-01430

34L3-01430-Main Pump

10

2PRB041-17S6S3F

2PRB041-17S6S3F-. Body-Front

11

8682-009-00D

8682-009-00D-. Coupling-Splined

13

2PRB041-59B1S3C

2PRB041-59B1S3C-. Body-Center

14

2PRG041C1C1M

2PRG041C1C1M-. Gear-Driven

14

2PRG041C1C1M

2PRG041C1C1M-. Gear-Driven

15

2PRG041B1D1P

2PRG041B1D1P-. Shaft

16

2PRC050

2PRC050-. Cover

17

9222-575-009

9222-575-009-. Washer

18

8798-236-00S

8798-236-00S-. Stud Assy

19

2PRS03K

2PRS03K-. Plate-Spacer

23

8611-207-00E

8611-207-00E-. Bushing-Rear

24

8611-208-00A

8611-208-00A-. Bushing-Rear

26

1PXG084MD1A1J

1PXG084MD1A1J-. Gear-Drive Shaft,Rr

27

1PXB084M098B1J

1PXB084M098B1J-S. Body-Rear

3

2PRF07B2K

2PRF07B2K-. Flange

30

9114-309-00E

9114-309-00E-. Screw-Cap

31

1PXC33B1B1B1B16

1PXC33B1B1B1B16-. Cover

32

9221-256-00B

9221-256-00B-. Washer-Spring

33

8639-067-00B

8639-067-00B-. Bolt

34

8676-024-003

8676-024-003-. Dowel

35

7111-024-00R

7111-024-00R-. Dowel

5

8682-016-00L

8682-016-00L-. Seal

6

8682-015-00Q

8682-015-00Q-. Seal

7

8682-058-00M

8682-058-00M-. Plate-Balance

9

2PRG041N3B1Q

2PRG041N3B1Q-. Gear-Drive

K

91L3-27200

91L3-27200-Seal Kit

K

91L3-27201

91L3-27201-Seal Kit(1,2,4,5,6,12,20-

K2

9211-530-006

9211-530-006-. Circlip

K28

9313-024-00W

9313-024-00W-. O-Ring

K28

9313-024-00W

9313-024-00W-. O-Ring

K36

9312-641-004

9312-641-004-. O-Ring

K36

9312-641-004

9312-641-004-. O-Ring

N25

1PXG084MA1A14

1PXG084MA1A14-. Gear-Driven,Rr

N29

7401-009-00R

7401-009-00R-. Coupling-Splined

NK1

8682-119-00W

8682-119-00W-. Seal-Shaft

NK20

9313-145-00B

9313-145-00B-. O-Ring

NK21

8611-015-000

8611-015-000-. Seal-Back Up

NK22

8611-016-00R

8611-016-00R-. Seal
