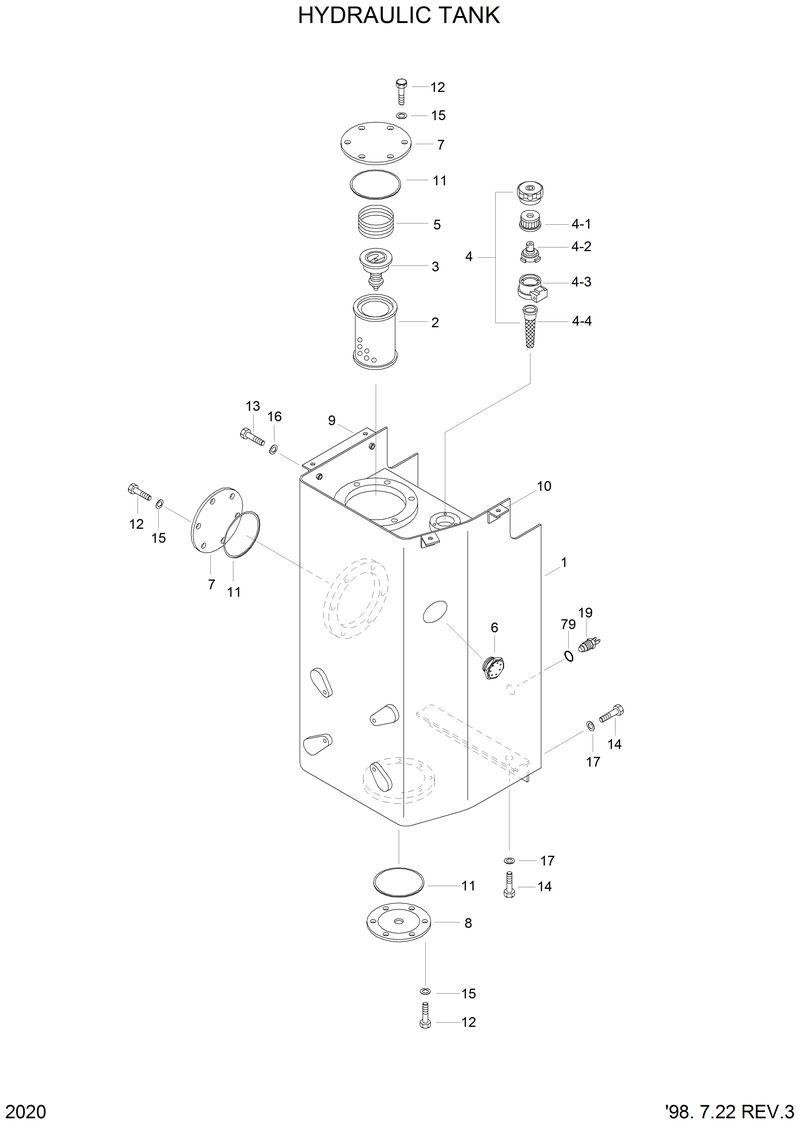

Запчасти Hyundai HL750 HYDRAULIC TANK

34L1-01460

34L1-01460-Cover Assy

34L3-00361

34L3-00361-Angle

S632-165001

S632-165001-O-Ring

S017-100252

S017-100252-Bolt-Hex

S632-165001

S632-165001-O-Ring

S017-100252

S017-100252-Bolt-Hex

34L3-00351

34L3-00351-Angle

31E3-4526

31E3-4526-Cover

S411-100002

S411-100002-Washer-Spring

S411-100002

S411-100002-Washer-Spring

31E3-4526

31E3-4526-Cover

34L3-00254

34L3-00254-Hyd Tank Wa

34L3-00253

34L3-00253-Hyd Tank Wa

1

34L3-00252

34L3-00252-Hyd Tank Wa

10

34L3-00360

34L3-00360-Angle

13

S017-120252

S017-120252-Bolt-Hex

14

S017-160402

S017-160402-Bolt-Hex

16

S411-120002

S411-120002-Washer-Spring

17

S441-160002

S441-160002-Washer-Hardened

19

21E3-5002

21E3-5002-Switch-Water Temp

2

34L3-00340

34L3-00340-Element

3

E131-0256

E131-0256-Valve-Bypass

4

E131-0253

E131-0253-Air Breather

4-1

31E1-10380

31E1-10380-. Element-Filter

4-2

31E1-10370

31E1-10370-. Bayonet Assy

4-3

31E1-10350

31E1-10350-. Casing

4-4

31E1-10360

31E1-10360-. Strainer

5

E131-0220

E131-0220-Spring

6

31L1-4047

31L1-4047-Gauge-Sight

79

31E7-0179

31E7-0179-O-Ring

8

34L4-00640

34L4-00640-Cover Wa

9

34L3-00350

34L3-00350-Angle
