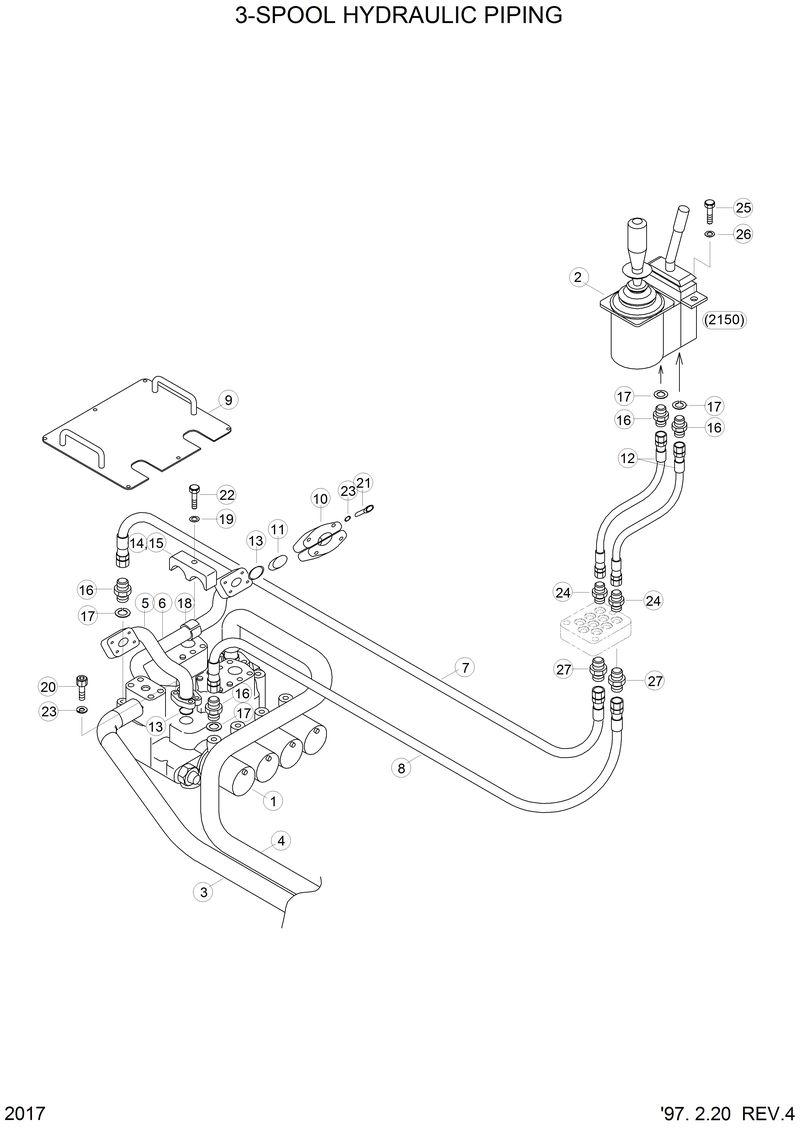

Запчасти Hyundai HL750 PILOT HYDRAULIC PIPING(3-SPOOL)

31L3-00382

31L3-00382-Mcv

34L3-01251

34L3-01251-Plate Wa

1

31L3-0038

31L3-0038-Mcv

10

P173-120102

P173-120102-Flange-Split

11

34L3-01260

34L3-01260-Cover-Flange

12

P600-042007

P600-042007-Hose Assy-Thd

13

31L4-0072

31L4-0072-O-Ring

14

34L3-01330

34L3-01330-Clamp

15

34L3-01340

34L3-01340-Clamp

16

P010-120002

P010-120002-Connector

17

P391-040000

P391-040000-Washer-Copper

18

S690-027100

S690-027100-Grommet

19

S017-120452

S017-120452-Bolt-Hex

2

31L1-1062

31L1-1062-Rcv Lever

20

S107-100404

S107-100404-Bolt-Socket

21

S107-100304

S107-100304-Bolt-Socket

22

S441-120002

S441-120002-Washer-Hardened

23

S411-100002

S411-100002-Washer-Spring

24

P010-110002

P010-110002-Connector

25

S015-080252

S015-080252-Bolt-Hex

26

S411-080002

S411-080002-Washer-Spring

27

P101-104046

P101-104046-Connector-Long

3

34L3-01210

34L3-01210-Pipe Wa

4

34L3-01220

34L3-01220-Pipe Wa

5

34L3-01231

34L3-01231-Pipe Wa

6

34L3-01241

34L3-01241-Pipe Wa

7

P600-042040

P600-042040-Hose Assy-Thd

8

P600-042036

P600-042036-Hose Assy-Thd

9

34L3-01250

34L3-01250-Plate Wa
