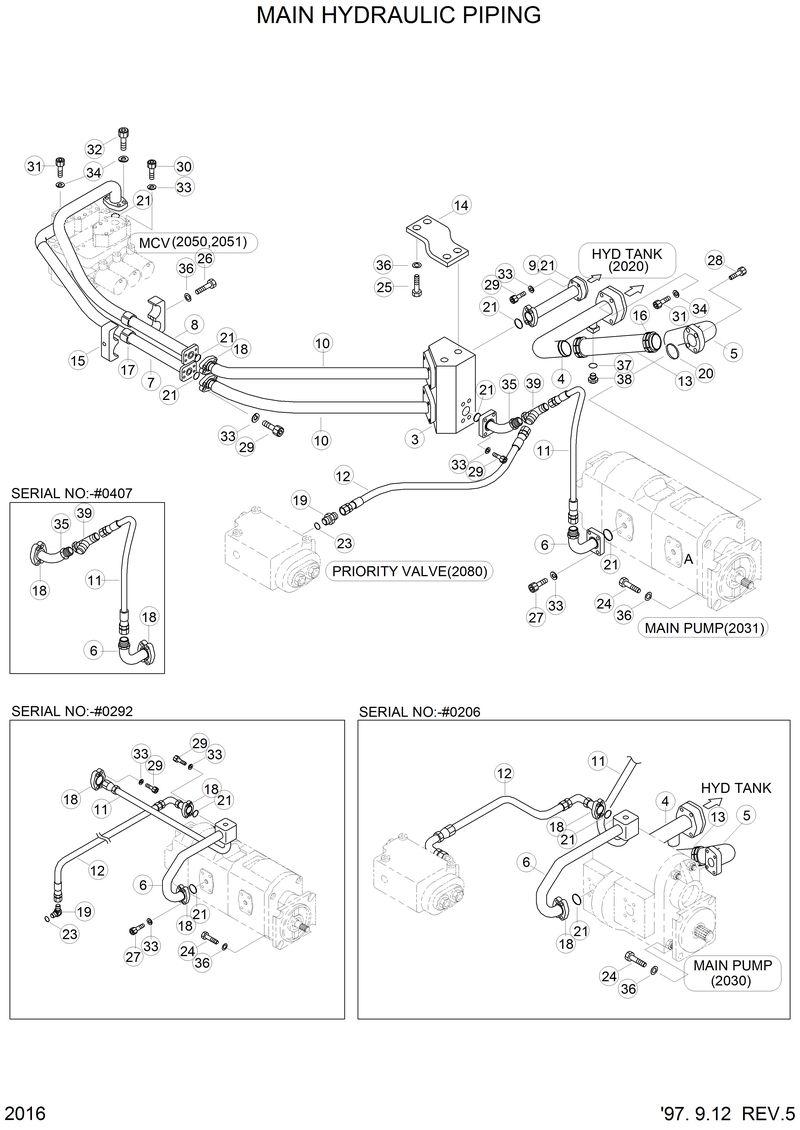

Запчасти Hyundai HL750 MAIN HYDRAULIC PIPING
№
Артикул
Название
Примечание
Количество
S107-100304
S107-100304-Bolt-Socket
34L3-01132
34L3-01132-Hose Assy-Thd
P610-164014
P610-164014-Hose Assy-Thd
34L3-01480
34L3-01480-Bolt-Hex
P760-081041
P760-081041-Hose-Rubber
31L1-3029
31L1-3029-O-Ring
31L1-3029
31L1-3029-O-Ring
P010-310013
P010-310013-Connector
S107-100304
S107-100304-Bolt-Socket
P620-164015
P620-164015-Hose Assy-Thd
P620-164014
P620-164014-Hose Assy-Thd
P690-164316
P690-164316-Hose Assy-Thd
34L3-01551
34L3-01551-Pipe Wa
S411-100002
S411-100002-Washer-Spring
S411-100002
S411-100002-Washer-Spring
34L3-01081
34L3-01081-Pipe Wa
34L3-01550
34L3-01550-Pipe Wa
P690-164316
P690-164316-Hose Assy-Thd
34L3-01071
34L3-01071-Pipe Wa
34L3-01561
34L3-01561-Pipe Wa
11
P690-164315
P690-164315-Hose Assy-Flg,0x45
12
34L3-01131
34L3-01131-Hose Assy-Thd
13
P760-081037
P760-081037-Hose-Rubber
14
34L3-01140
34L3-01140-Plate
15
34L3-01150
34L3-01150-Clamp
16
S520-070000
S520-070000-Clamp-Hose
17
S690-034100
S690-034100-Grommet
19
P020-310012
P020-310012-Elbow-90
20
31L1-0058
31L1-0058-O-Ring
22
31L4-0072
31L4-0072-O-Ring
23
S611-030001
S611-030001-O-Ring
24
31L3-0030
31L3-0030-Bolt-Hex
26
S017-120752
S017-120752-Bolt-Hex
27
31L3-0226
31L3-0226-Bolt-Socket
28
34L3-01160
34L3-01160-Bolt-Socket
3
34L3-01060
34L3-01060-Block
30
S107-100754
S107-100754-Deleted...
31
S107-120354
S107-120354-Bolt-Socket
32
S107-120404
S107-120404-Deleted...
35
34L3-01560
34L3-01560-Pipe Wa
36
S441-120002
S441-120002-Washer-Hardened
37
P220-110105
P220-110105-Plug
39
34L3-01570
34L3-01570-Tee
4
34L3-01070
34L3-01070-Pipe Wa
5
34L3-01080
34L3-01080-Pipe Wa
6
34L3-01090
34L3-01090-Pipe Wa
7
34L3-01101
34L3-01101-Pipe Wa
8
34L3-01111
34L3-01111-Pipe Wa
9
34L3-01120
34L3-01120-Pipe Wa
Выбрано товаров: 55
