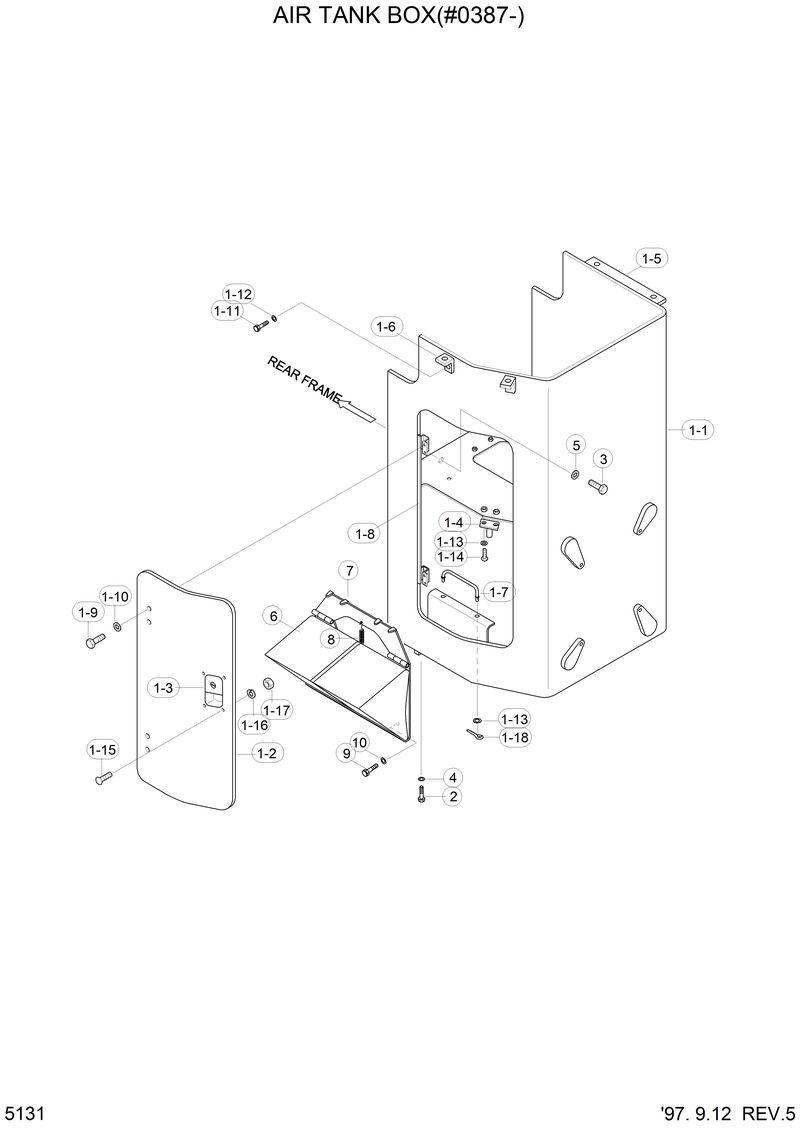

Запчасти Hyundai HL750 ALR TANK BOX(#0387-)

*

@

@-Air Tank Box

1

74L3-20880

74L3-20880-Air Tank Assy

1-1

74L3-20144

74L3-20144-. Air Tank Wa

1-10

S441-100002

S441-100002-. Washer-Hardened

1-11

S017-120302

S017-120302-. Bolt-Hex

1-12

S441-120002

S441-120002-. Washer-Hardened

1-13

S403-102002

S403-102002-. Washer-Plain

1-14

S017-100202

S017-100202-. Bolt-Hex

1-15

9327289

9327289-. Bolt-Hex

1-16

S411-060002

S411-060002-. Washer-Spring

1-17

S201-061002

S201-061002-. Nut-Hex

1-18

S461-320202

S461-320202-. Pin-Split

1-2

74L3-20890

74L3-20890-. Door Wa

1-3

71E6-52240

71E6-52240-. Catch Assy

1-4

71E6-54401

71E6-54401-. Pin-Lock

1-5

74L3-20900

74L3-20900-. Plate

1-6

74L3-20910

74L3-20910-. Plate

1-7

74L3-20920

74L3-20920-. Bar Wa

1-8

74L3-20930

74L3-20930-. Seal

1-9

S017-100252

S017-100252-. Bolt-Hex

10

S411-080002

S411-080002-Washer-Spring

2

S017-160352

S017-160352-Bolt-Hex

3

S017-120302

S017-120302-Bolt-Hex

4

S441-120002

S441-120002-Washer-Hardened

5

S441-160002

S441-160002-Washer-Hardened

6

74L3-00012

74L3-00012-Wheel Chock

7

74L3-20421

74L3-20421-Hinge Wa

8

74L3-20432

74L3-20432-Spring

9

S015-080152

S015-080152-Bolt-Hex
