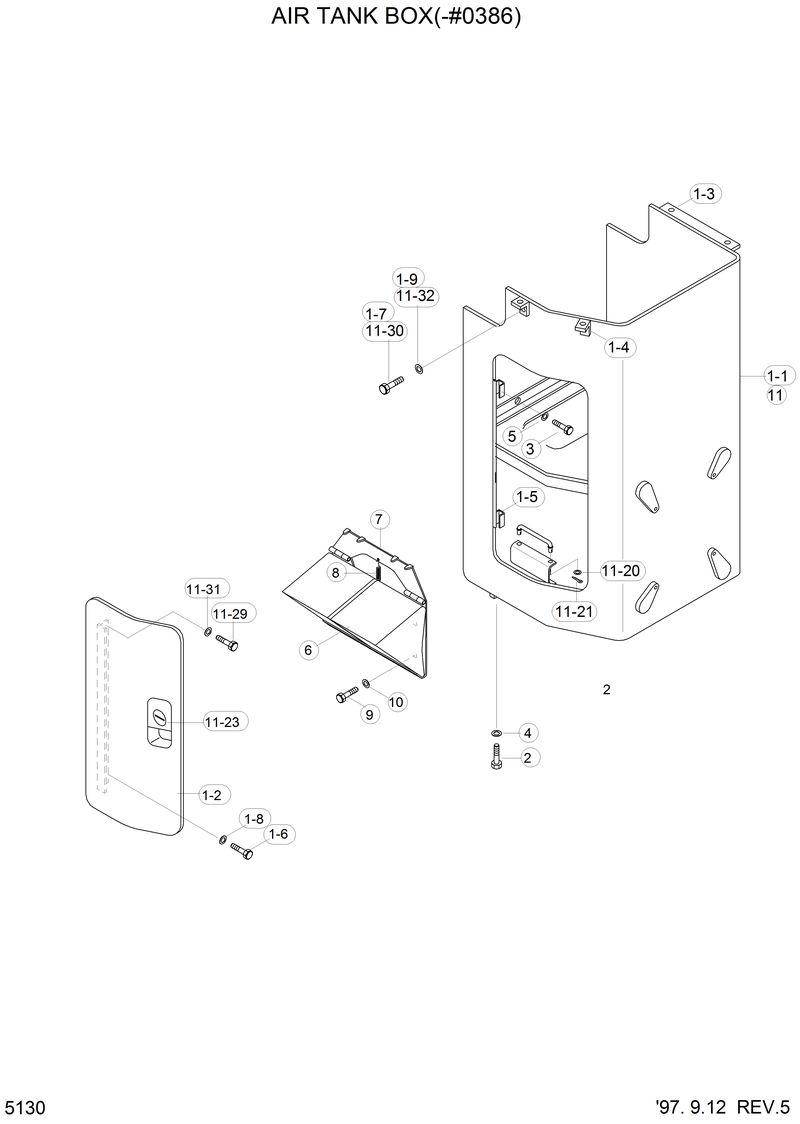

Запчасти Hyundai HL750 AIR TANK BOX(-#0386)

74L3-20143

74L3-20143-Air Tank Wa

74L3-20421

74L3-20421-Hinge Wa

74L3-20142

74L3-20142-Air Tank Wa

74L3-20432

74L3-20432-Spring

*

@

@-Air Tank Box

1

74L3-20540

74L3-20540-Air Tank Assy

1-1

74L3-20140

74L3-20140-. Air Tank Wa

1-2

74L3-20150

74L3-20150-. Door Wa

1-3

74L3-20160

74L3-20160-. Plate

1-4

74L3-20170

74L3-20170-. Plate

1-5

74L3-20570

74L3-20570-. Seal

10

S411-080002

S411-080002-Washer-Spring

11

74L3-20141

74L3-20141-Air Tank Wa

11-20

S403-102002

S403-102002-. Washer-Plain

11-21

S461-320202

S461-320202-. Pin-Split

11-23

E171-3001

E171-3001-. Lock-Cover

11-29

S017-100252

S017-100252-. Bolt-Hex

11-29

S017-100252

S017-100252-. Bolt-Hex

11-30

S017-120302

S017-120302-. Bolt-Hex

11-30

S017-120302

S017-120302-. Bolt-Hex

11-31

S411-100002

S411-100002-. Washer-Spring

11-31

S411-100002

S411-100002-. Washer-Spring

11-32

S441-120002

S441-120002-. Washer-Hardened

11-32

S441-120002

S441-120002-. Washer-Hardened

2

S017-160352

S017-160352-Bolt-Hex

3

S017-120302

S017-120302-Bolt-Hex

4

S441-120002

S441-120002-Washer-Hardened

5

S441-160002

S441-160002-Washer-Hardened

6

74L3-00012

74L3-00012-Wheel Chock

7

74L3-20420

74L3-20420-Hinge Wa

8

74L3-20430

74L3-20430-Spring

9

S015-080152

S015-080152-Bolt-Hex
