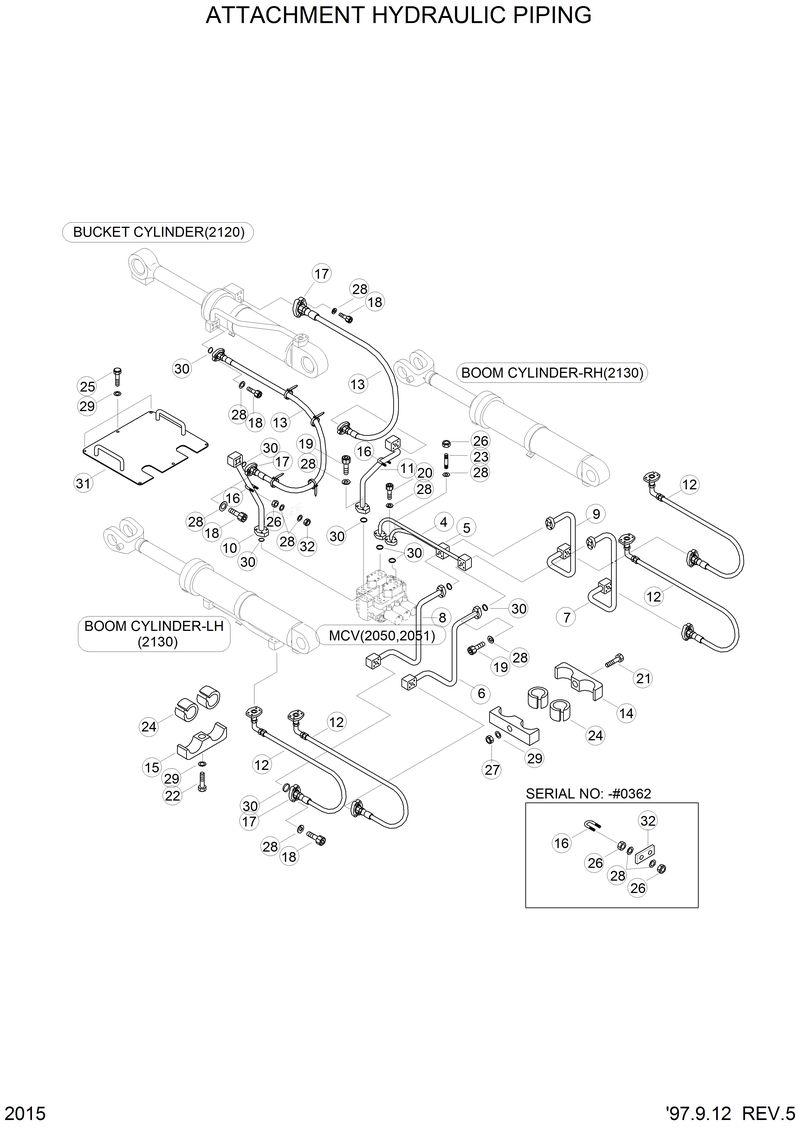

Запчасти Hyundai HL750 ATTACHMENT HYDRAULIC PIPING

S205-101002

S205-101002-Nut-Hex

S275-100002

S275-100002-Nut-Self Locking

S205-101002

S205-101002-Nut-Hex

34L3-00770

34L3-00770-U-Bolt

34L3-00812

34L3-00812-Plate Wa

1

34L3-00012

34L3-00012-Boom Cylinder-Lh

10

34L3-00431

34L3-00431-Pipe Wa

11

34L3-00411

34L3-00411-Pipe Wa

12

P701-124324

P701-124324-Hose Assy

13

P681-124319

P681-124319-Hose Assy

14

34L3-00710

34L3-00710-Clamp

15

34L3-00730

34L3-00730-Clamp

16

S070-022746

S070-022746-U-Bolt

17

P173-120102

P173-120102-Flange-Split

18

S107-100304

S107-100304-Bolt-Socket

19

S107-100404

S107-100404-Deleted...

2

34L3-00022

34L3-00022-Boom Cylinder-Rh

20

S107-100854

S107-100854-Deleted...

21

S017-120802

S017-120802-Bolt-Hex

22

S017-120502

S017-120502-Bolt-Hex

23

31L3-0365

31L3-0365-Bolt-Stud

24

S690-027100

S690-027100-Grommet

25

S017-120302

S017-120302-Bolt-Hex

27

S205-121002

S205-121002-Nut-Hex

28

S411-100002

S411-100002-Washer-Spring

29

S441-120002

S441-120002-Washer-Hardened

3

34L3-00032

34L3-00032-Bucket Cylinder

30

31L4-0072

31L4-0072-O-Ring

31

34L3-00811

34L3-00811-Plate Wa

32

34L3-01350

34L3-01350-Plate

4

34L3-00371

34L3-00371-Pipe Wa

5

34L3-00391

34L3-00391-Pipe Wa

6

34L3-00492

34L3-00492-Pipe Wa-Lh

7

34L3-00502

34L3-00502-Pipe Wa-Rh

8

34L3-00452

34L3-00452-Pipe Wa-Lh

9

34L3-00462

34L3-00462-Pipe Wa-Rh
