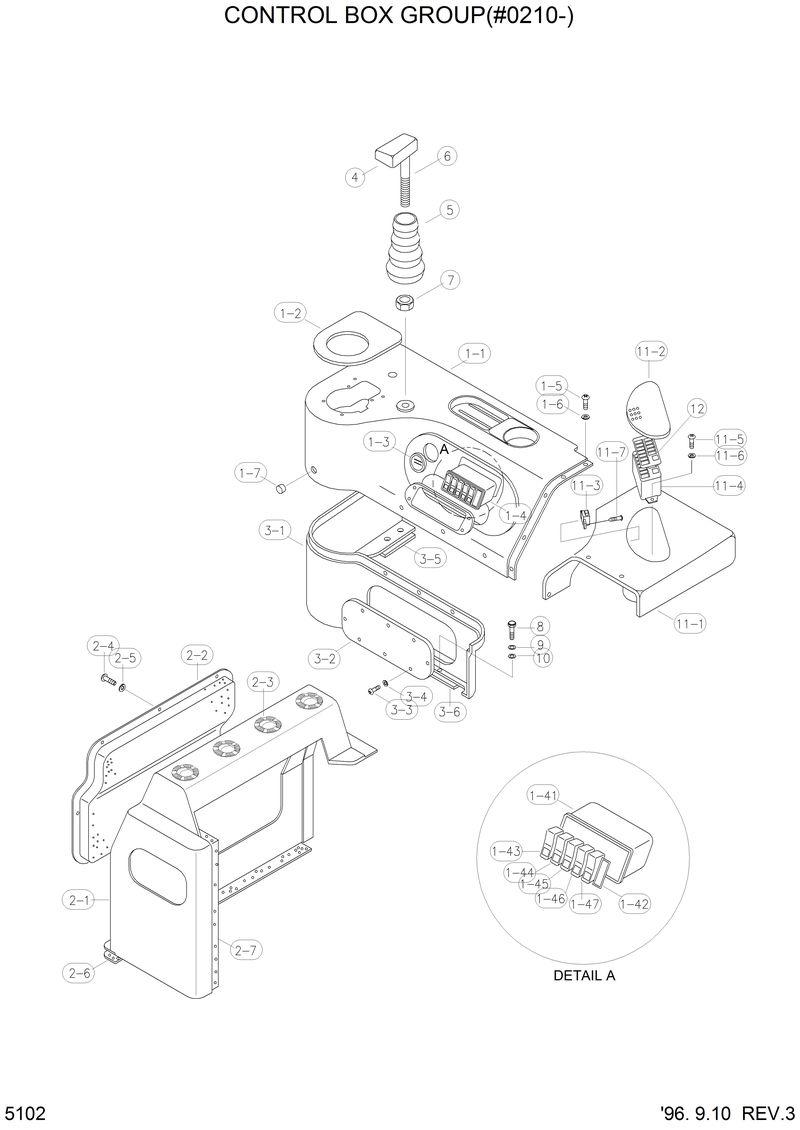

Запчасти Hyundai HL750 CONTROL BOX GROUP(#0210-)

74L3-02970

74L3-02970-. Cover-3 Spool

1-1

74L3-00074

74L3-00074-. Ctrl Box-Upper

1-2

74L3-00131

74L3-00131-. Cover-2 Spool

1-3

21L1-0010

21L1-0010-. Hour Meter Assy

1-4

24L3-30311

24L3-30311-. Switch Assy

1-41

21E6-10470

21E6-10470-.. Frame-Mounting

1-42

21E6-10460

21E6-10460-.. Cover

1-43

21L7-03090

21L7-03090-.. Switch-Main Light

1-44

21E6-30410

21E6-30410-.. Switch-Work Light

1-45

21L7-03050

21L7-03050-.. Switch-Aircon

1-46

21E6-30450

21E6-30450-.. Switch-Wiper

1-47

21E6-30430

21E6-30430-.. Switch-Washer

1-7

74L3-03100

74L3-03100-. Plug-Rubber

10

S411-100002

S411-100002-Washer-Spring

11

74L3-02960

74L3-02960-Cover Assy-Rear

11-1

74L3-03110

74L3-03110-. Cover-Rear

11-2

74L3-00122

74L3-00122-. Cover-Fuse

11-3

74L3-03090

74L3-03090-. Lock-Magnetic

11-4

24L3-00231

24L3-00231-. Fuse Box

11-5

74L3-02850

74L3-02850-. Bolt-Socket

11-5

74L3-02850

74L3-02850-. Bolt-Socket

11-5

74L3-02850

74L3-02850-. Bolt-Socket

11-5

74L3-02850

74L3-02850-. Bolt-Socket

11-6

S411-060002

S411-060002-. Washer-Spring

11-7

S151-030156

S151-030156-. Screw-Tapping

12

24L3-00271

24L3-00271-Decal-Fuse Box

2

74L3-00253

74L3-00253-Ctrl Box Assy-Air Con

2-1

74L3-00094

74L3-00094-. Ctrl Box-Air Con

2-2

74L3-00113

74L3-00113-. Cover-Air Con

2-3

71L7-20880

71L7-20880-. Nozzle

2-6

74L3-03380

74L3-03380-. Pad-Sponge

2-7

74L3-03390

74L3-03390-. Pad-Sponge

3

74L3-00263

74L3-00263-Ctrl Box Assy-Lower

3-1

74L3-00084

74L3-00084-. Ctrl Box-Lower

3-4

S403-063006

S403-063006-. Washer-Plain

3-4

S403-063006

S403-063006-. Washer-Plain

3-4

S403-063006

S403-063006-. Washer-Plain

3-5

74L3-03400

74L3-03400-. Pad-Sponge

3-6

74L3-03410

74L3-03410-. Pad-Sponge

4

74L3-00172

74L3-00172-Rest-Hand

5

74L3-00160

74L3-00160-Tube

6

74L3-00180

74L3-00180-Bolt-Stud

7

S205-201002

S205-201002-Nut-Hex

8

S017-100152

S017-100152-Bolt-Hex

9

74L3-03080

74L3-03080-Washer-Tefron

N1

74L3-00243

74L3-00243-Ctrl Box Assy-Upper

N3-2

74L3-00102

74L3-00102-. Cover
