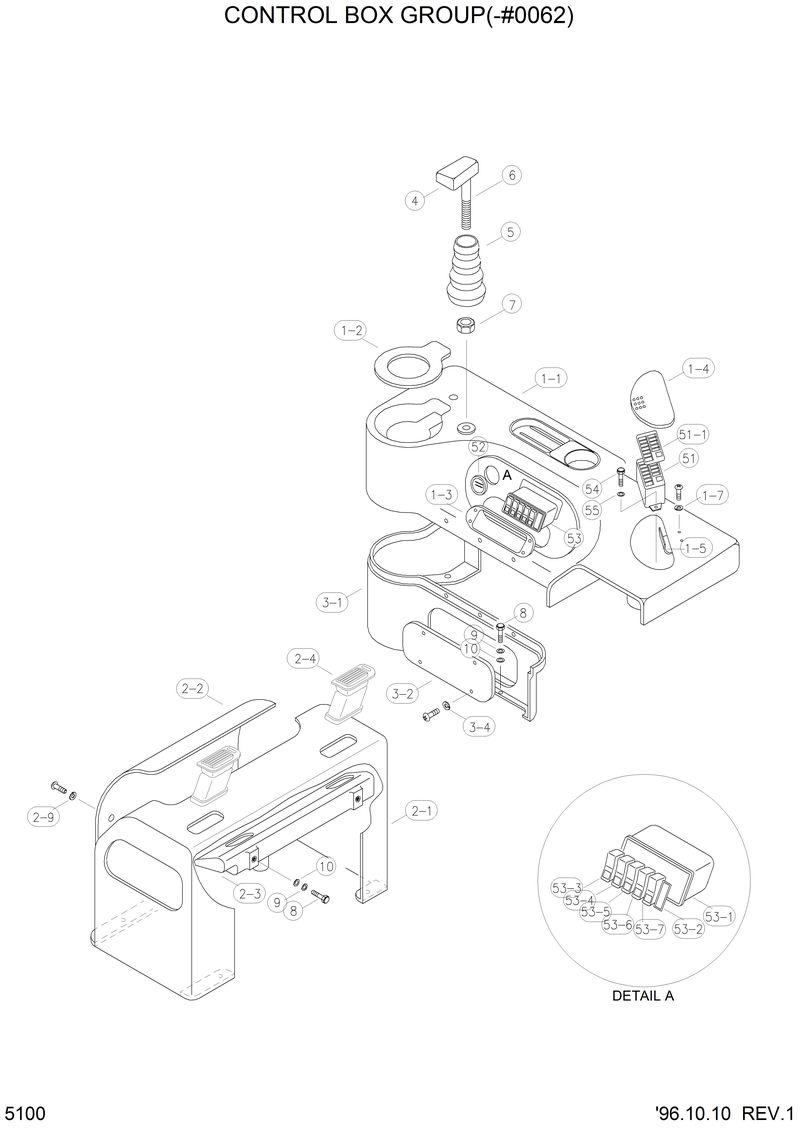

Запчасти Hyundai HL750 CONTROL BOX GROUP(-#0062)

1-2

74L3-00130

74L3-00130-. Cover

1-3

74L3-00220

74L3-00220-. Cover

1-4

74L3-00121

74L3-00121-. Cover

1-5

74L3-00230

74L3-00230-. Hinge Wa

10

S441-100002

S441-100002-Washer-Hardened

2-1

74L3-00091

74L3-00091-. Ctrl Box-Aircon

2-2

74L3-00111

74L3-00111-. Cover

2-3

74L3-00211

74L3-00211-. Duct

2-4

74L3-00140

74L3-00140-. Vent-Air

3-1

74L3-00082

74L3-00082-. Control Box-Lower

3-2

74L3-00101

74L3-00101-. Cover

3-4

S403-062002

S403-062002-. Washer-Plain

3-4

S403-062002

S403-062002-. Washer-Plain

3-4

S403-062002

S403-062002-. Washer-Plain

4

74L3-00172

74L3-00172-Rest-Hand

5

74L3-00160

74L3-00160-Tube

51

24L3-00231

24L3-00231-Fuse Box

51-1

21E1-49500

21E1-49500-. Fuse

51-2

21E1-49490

21E1-49490-. Fuse

51-3

21E1-49480

21E1-49480-. Fuse

52

21L1-0010

21L1-0010-Hour Meter

53

24L3-30310

24L3-30310-Switch Assy

53-1

21E6-10470

21E6-10470-. Frame-Mounting

53-2

21E6-10460

21E6-10460-. Cover

53-3

21E6-30480

21E6-30480-. Switch-Illumination

53-4

21E6-30410

21E6-30410-. Switch-Work Light

53-5

21E6-30400

21E6-30400-. Switch-Head Light

53-6

21E6-30450

21E6-30450-. Switch-Wiper

53-7

21E6-30430

21E6-30430-. Switch-Washer

54

S015-060202

S015-060202-Bolt-Hex

55

S411-060002

S411-060002-Washer-Spring

6

74L3-00180

74L3-00180-Bolt-Stud

7

S205-201002

S205-201002-Nut-Hex

8

S017-100152

S017-100152-Bolt-Hex

9

S403-102002

S403-102002-Washer-Plain

N1

74L3-00241

74L3-00241-Control Box Sub Assy

N1-1

74L3-00072

74L3-00072-. Control Box-Upper

N2

74L3-00250

74L3-00250-Control Box Sub Assy

N3

74L3-00261

74L3-00261-Control Box Sub Assy
