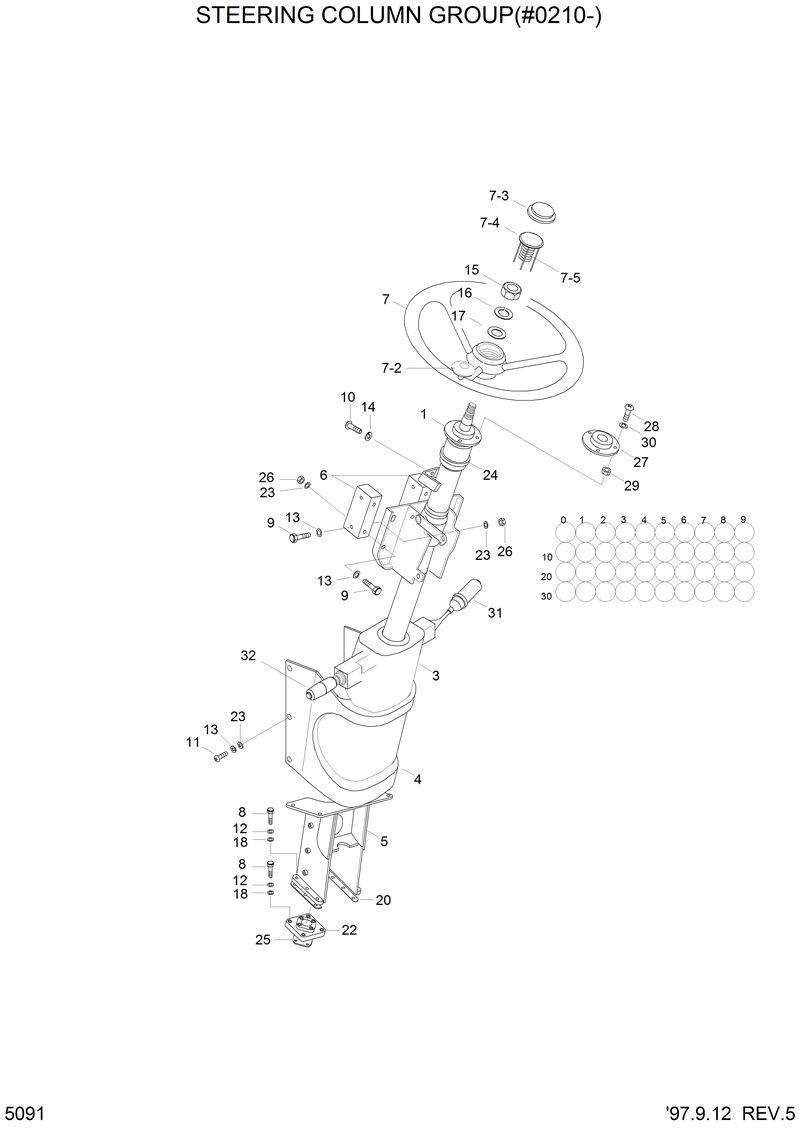

Запчасти Hyundai HL750 STEERING COLUMN GROUP(#0210-)

24L3-00340

24L3-00340-Switch-Multifunction

1

74L3-05010

74L3-05010-Shaft-Strg Column

10

S161-060156

S161-060156-Screw

11

S161-080206

S161-080206-Screw

12

S411-100002

S411-100002-Washer-Spring

13

S411-080006

S411-080006-Washer-Spring

14

S411-060006

S411-060006-Washer-Spring

15

S206-141002

S206-141002-Nut-Hex

16

S403-142002

S403-142002-Washer-Plain

17

S411-140002

S411-140002-Washer-Spring

18

S403-102002

S403-102002-Washer-Plain

20

74L3-05110

74L3-05110-Pad-Rubber

22

74L3-00720

74L3-00720-Anchorage Assy

23

S403-082006

S403-082006-Washer-Plain

24

74L3-05060

74L3-05060-Grommet

25

74L3-00870

74L3-00870-Plate

26

S205-081002

S205-081002-Nut-Hex

27

21L1-2050

21L1-2050-Plate-Horn

28

S161-030142

S161-030142-Screw-Cross Recess Round

29

S201-031002

S201-031002-Nut-Hex

30

S411-030002

S411-030002-Washer-Spring

31

24L3-00300

24L3-00300-Sw-Multifunction

32

24L3-20090

24L3-20090-Selector-Gear

4

74L3-05030

74L3-05030-Cover-Lower

5

74L3-05040

74L3-05040-Support Wa

6

74L3-00730

74L3-00730-Anchorage Assy

8

S017-100452

S017-100452-Bolt-Hex

9

S015-080602

S015-080602-Bolt-Hex

N3

74L3-05020

74L3-05020-Cover Assy-Upper

N7

21E3-3020

21E3-3020-Wheel-Steering
