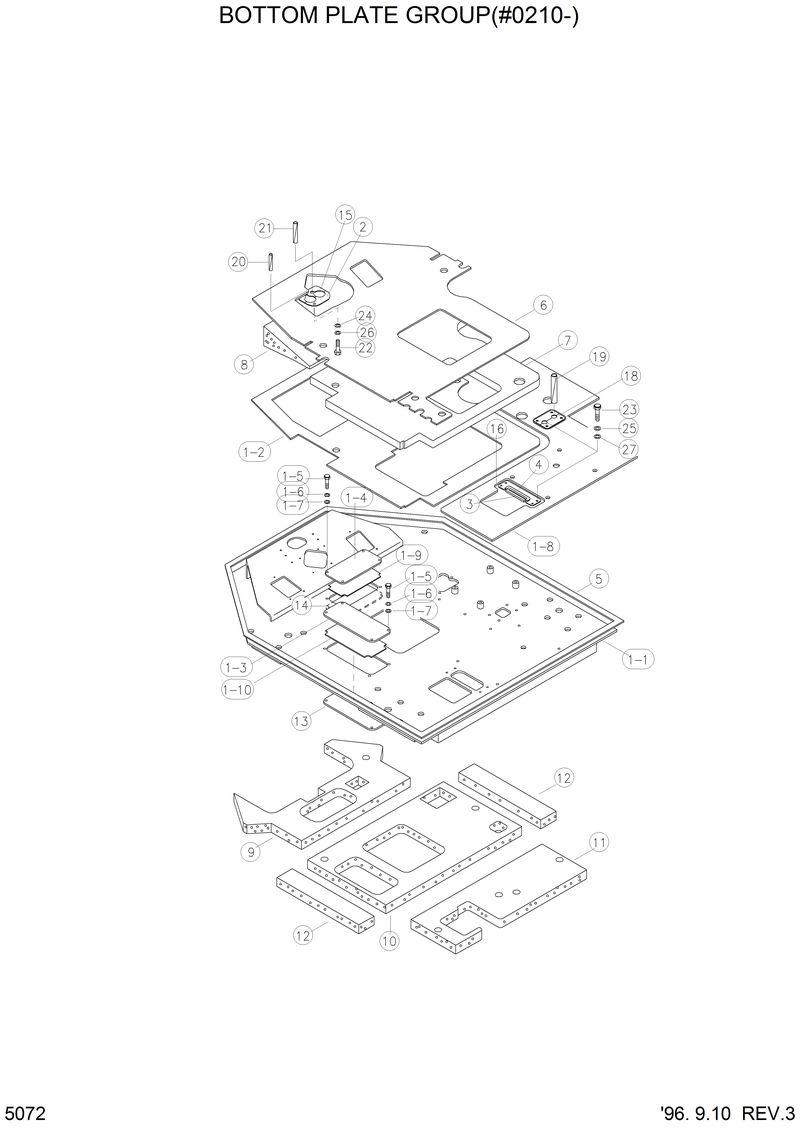

Запчасти Hyundai HL750 BOTTPM PLATE GROUT(#0210-)

74L3-05133

74L3-05133-Bottom Plate Ass'Y

74L3-05143

74L3-05143-. Bottom Plate W.A

1

74L3-05132

74L3-05132-Bottom Plate Assy

1-1

74L3-05142

74L3-05142-. Bottom Plate Wa

1-10

74L3-00520

74L3-00520-. Sheet-Asphalt

1-2

74L3-07172

74L3-07172-. Sheet-Asphalt

1-3

74L3-02920

74L3-02920-. Cover

1-4

74L3-02940

74L3-02940-. Cover

1-5

S017-100202

S017-100202-. Bolt-Hex

1-6

S403-102002

S403-102002-. Washer-Plain

1-7

S411-100002

S411-100002-. Washer-Spring

1-8

74L3-00503

74L3-00503-. Sheet-Asphalt

1-9

74L3-00510

74L3-00510-. Sheet-Asphalt

10

74L3-01374

74L3-01374-Sponge-Bottom

11

74L3-01384

74L3-01384-Sponge-Bottom

12

74L3-07182

74L3-07182-Foam-Bottom/Side

13

74L3-00540

74L3-00540-Pad-Rubber

14

74L3-00550

74L3-00550-Pad-Rubber

15

74L3-00751

74L3-00751-Cover

16

74L3-00761

74L3-00761-Plate

18

74L3-00800

74L3-00800-Cover

19

74L3-00830

74L3-00830-Cover-Rubber

2

74L3-00741

74L3-00741-Cover

20

74L3-00810

74L3-00810-Cover-Rubber

21

74L3-00820

74L3-00820-Cover-Rubber

22

S015-060152

S015-060152-Bolt-Hex

23

S015-080152

S015-080152-Bolt-Hex

24

S411-060002

S411-060002-Washer-Spring

25

S411-080002

S411-080002-Washer-Spring

26

S403-062002

S403-062002-Washer-Plain

27

S403-080002

S403-080002-Washer-Plain

3

74L3-00930

74L3-00930-Grommet

4

74L3-00940

74L3-00940-Grommet

5

74L3-03470

74L3-03470-Pad-Sponge

7

74L3-07152

74L3-07152-Sponge-Up

8

74L3-07161

74L3-07161-Sponge-Up

9

74L3-01364

74L3-01364-Sponge-Bottom

N6

74L3-01352

74L3-01352-Cover-Mat Floor
