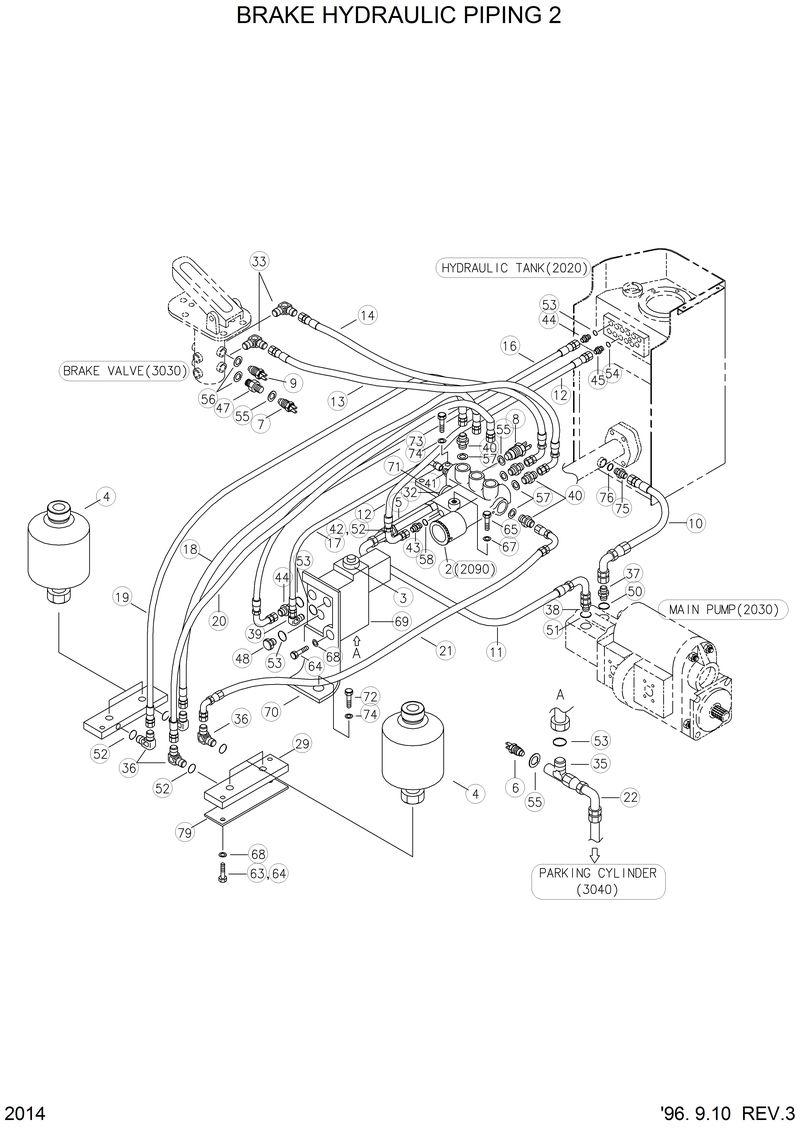

Запчасти Hyundai HL750 BRAKE HYDRAULIC PIPING 2

S017-100252

S017-100252-Bolt-Hex

S017-100252

S017-100252-Bolt-Hex

S411-100002

S411-100002-Washer-Spring

S411-100002

S411-100002-Washer-Spring

10

P620-122011

P620-122011-Hose Assy-Thd 0x90

11

31L3-0254

31L3-0254-Hose Assy-Thd

12

P620-085022

P620-085022-Hose Assy-Thd 0x90

13

P620-065013

P620-065013-Hose Assy-Thd 0x90

14

P620-065012

P620-065012-Hose Assy-Thd 0x90

16

P620-042026

P620-042026-Hose Assy-Thd 0x90

17

P620-047013

P620-047013-Hose Assy-Thd 0x90

18

P610-066018

P610-066018-Hose Assy-Thd 0x45

19

P610-066020

P610-066020-Hose Assy-Thd 0x45

2

81L1-0002

81L1-0002-Cut-Off Valve

20

P610-066021

P610-066021-Hose Assy-Thd 0x45

21

P620-066020

P620-066020-Hose Assy-Thd 0x90

22

P620-047009

P620-047009-Hose Assy-Thd 0x90

29

81L1-0023

81L1-0023-Block

3

E131-0175

E131-0175-Valve-Solenoid

32

31L1-0138

31L1-0138-Fitting-Banjo

33

31L3-0343

31L3-0343-Elbow-90

35

81L1-0034

81L1-0034-Tee

36

81L1-0050

81L1-0050-Elbow-90

37

P010-310010

P010-310010-Connector

38

P030-310006

P030-310006-Elbow-45

39

P020-110001

P020-110001-Elbow-90

4

81L1-0004

81L1-0004-Accumulator

40

P010-220005

P010-220005-Connector

41

P010-220004

P010-220004-Connector

42

P010-110014

P010-110014-Connector

43

P010-220008

P010-220008-Connector

44

P010-110002

P010-110002-Connector

45

P010-110004

P010-110004-Connector

47

81L1-0033

81L1-0033-Reducer

48

P220-110102

P220-110102-Plug

5

31L1-0139

31L1-0139-Line Filter

50

31L1-3028

31L1-3028-O-Ring

51

31L4-0074

31L4-0074-O-Ring

52

S631-014001

S631-014001-O-Ring

53

S631-011001

S631-011001-O-Ring

54

S631-018001

S631-018001-O-Ring

55

P392-120000

P392-120000-Washer-Copper

56

P392-100000

P392-100000-Washer-Copper

57

P392-160000

P392-160000-Washer-Copper

58

P392-180000

P392-180000-Washer-Copper

6

31L1-0093

31L1-0093-Switch-Pressure

63

S017-100202

S017-100202-Bolt-Hex

67

S411-080002

S411-080002-Washer-Spring

69

31E3-3072

31E3-3072-Block

7

31L1-0094

31L1-0094-Switch-Pressure

70

34L3-01180

34L3-01180-Plate

71

34L3-01190

34L3-01190-Plate

72

S017-120252

S017-120252-Bolt-Hex

73

S017-120302

S017-120302-Bolt-Hex

74

S441-120002

S441-120002-Washer-Hardened

75

P010-110005

P010-110005-Connector

76

S631-024001

S631-024001-O-Ring

79

34L3-01500

34L3-01500-Rubber

8

31L1-0095

31L1-0095-Switch-Pressure

9

21L3-0001

21L3-0001-Switch-Pressure
