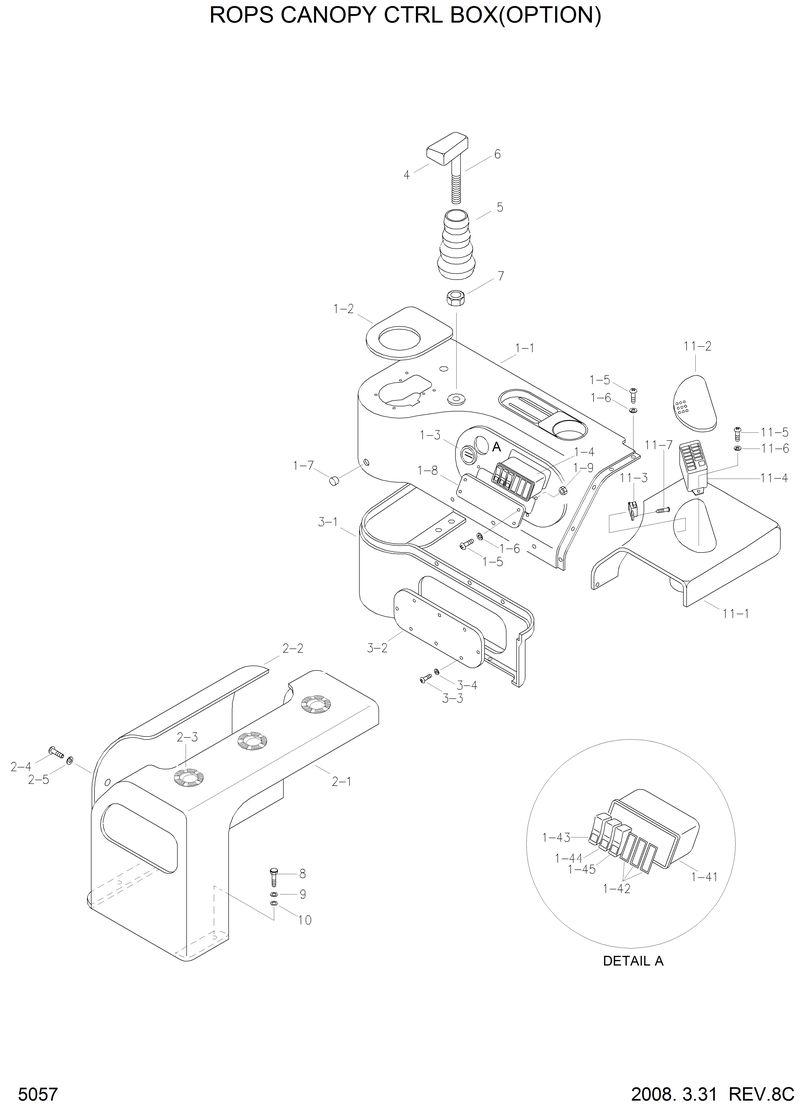

Запчасти Hyundai HL750 CONTROL BOX(ROPS CANOPY)

74L3-00252

74L3-00252-Ctrl Box Assy-Air Con

74L3-02970

74L3-02970-. Cover-3 Spool

1

74L3-00900

74L3-00900-Ctrl Box Assy-Upper

1-1

74L3-00073

74L3-00073-. Ctrl Box-Upper

1-2

74L3-00131

74L3-00131-. Cover-2 Spool

1-3

21L1-0010

21L1-0010-. Hour Meter Assy

1-4

24L3-30340

24L3-30340-. Switch Assy

1-41

21E6-10470

21E6-10470-.. Frame-Mounting

1-42

21E6-10460

21E6-10460-.. Cover

1-43

21E6-30480

21E6-30480-.. Switch-Illumination

1-44

21E6-30410

21E6-30410-.. Switch-Work Light

1-45

21E6-30400

21E6-30400-.. Switch-Head Light

1-7

74L3-03100

74L3-03100-. Plug-Rubber

1-8

74L3-00880

74L3-00880-. Cover

1-9

S205-061002

S205-061002-. Nut-Hex

10

S411-100002

S411-100002-Washer-Spring

11

74L3-02960

74L3-02960-Cover Assy-Rear

11-1

74L3-03110

74L3-03110-. Cover-Rear

11-2

74L3-00122

74L3-00122-. Cover-Fuse

11-3

74L3-03090

74L3-03090-. Lock-Magnetic

11-4

24L3-00231

24L3-00231-. Fuse Box

11-5

74L3-02850

74L3-02850-. Bolt-Socket

11-5

74L3-02850

74L3-02850-. Bolt-Socket

11-5

74L3-02850

74L3-02850-. Bolt-Socket

11-5

74L3-02850

74L3-02850-. Bolt-Socket

11-6

S411-060002

S411-060002-. Washer-Spring

11-7

S151-030156

S151-030156-. Screw-Tapping

2-1

74L3-00092

74L3-00092-. Ctrl Box-Air Con

2-3

74L3-02950

74L3-02950-. Nozzle

3-1

74L3-00083

74L3-00083-. Ctrl Box-Lower

3-4

S403-063002

S403-063002-. Washer-Plain

3-4

S403-063002

S403-063002-. Washer-Plain

3-4

S403-063002

S403-063002-. Washer-Plain

4

74L3-00172

74L3-00172-Rest-Hand

5

74L3-00160

74L3-00160-Tube

6

74L3-00180

74L3-00180-Bolt-Stud

7

S205-201002

S205-201002-Nut-Hexagon Head

8

S017-100152

S017-100152-Bolt-Hex

9

74L3-03080

74L3-03080-Washer-Tefron

N

@

@-Not Individually Supplied

N2

74L3-00251

74L3-00251-Ctrl Box Assy-Air Con

N2-1

74L3-00093

74L3-00093-. Ctrl Box-Air Con

N2-2

74L3-00112

74L3-00112-. Cover

N3

74L3-00262

74L3-00262-Ctrl Box Assy-Lower

N3-2

74L3-00102

74L3-00102-. Cover
