Запчасти Hyundai HL750 CAB ELECTRIC

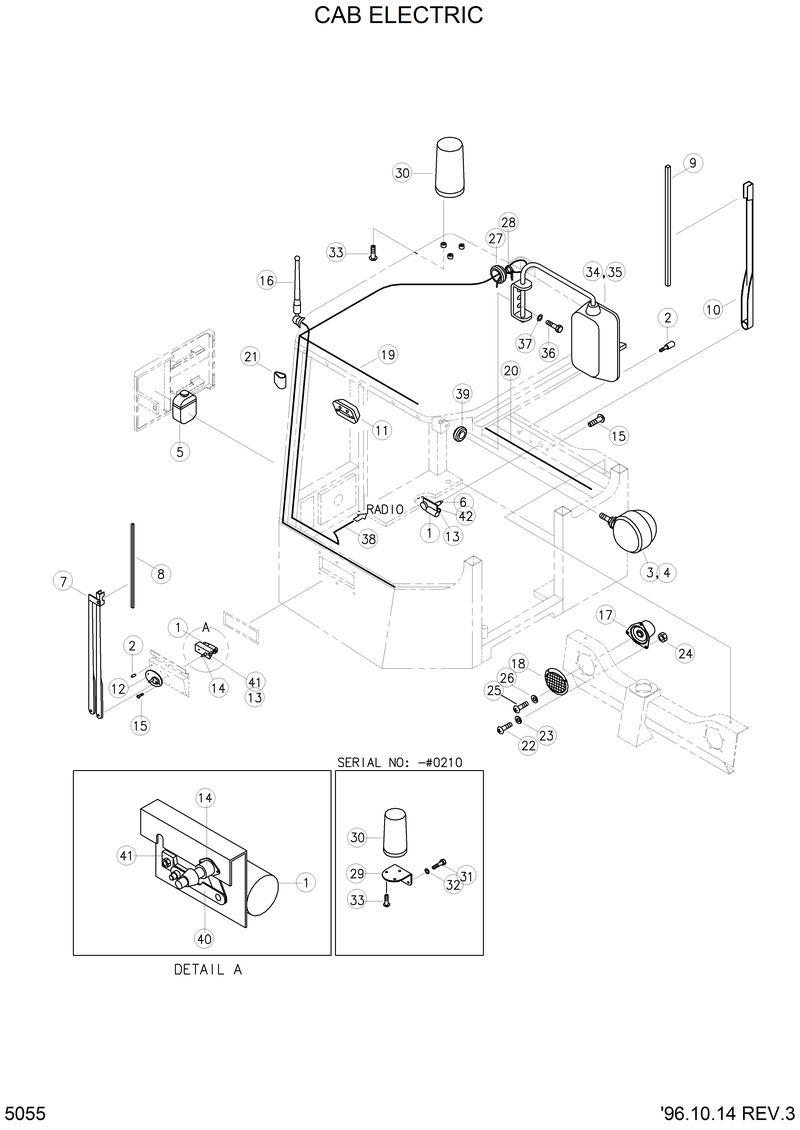

Схема запчастей Hyundai HL750 - CAB ELECTRIC

Артикул

Название

Примечание

Количество

24L3-9003

24L3-9003-Electric Cab Assy

74L3-01780

74L3-01780-. Driver-Arm,Front

74L3-01780

74L3-01780-. Driver-Arm,Front

24L3-20080

24L3-20080-. Lamp Assy-Work

24L1-00152

24L1-00152-. Harness-Cab,Front

24L3-9003

24L3-9003-Electric Cab Assy

24L3-9003

24L3-9003-Electric Cab Assy

1

74L3-01750

74L3-01750-. Motor-Wiper

10

74L3-01840

74L3-01840-. Wiper Arm-Rear

11

21EH-0011

21EH-0011-. Lamp-Room

12

74L3-01770

74L3-01770-. Block

14

74L3-01790

74L3-01790-. Pivot Shaft-Front

15

74L3-01800

74L3-01800-. Screw

16

74L3-01710

74L3-01710-. Antena Kit

17

21E6-30710

21E6-30710-. Speaker

18

21E6-40110

21E6-40110-. Grille-Speaker

19

24L1-00151

24L1-00151-. Harness-Cab,Front

2

74L3-01760

74L3-01760-. Nozzle Assy

20

24L1-00140

24L1-00140-. Harness-Cab,Rear

21

E127-3133

E127-3133-. Holder-Cable Tie

22

S161-050102

S161-050102-. Screw

23

S411-050002

S411-050002-. Washer-Spring

24

S201-051002

S201-051002-. Nut-Hex

25

S151-040122

S151-040122-. Screw-C/R Tapping

26

S411-040002

S411-040002-. Washer-Spring

27

24L3-03231

24L3-03231-. Grommet

28

S552-035146

S552-035146-. Clamp-Band

29

24L1-00580

24L1-00580-Bracket

3

24L1-20010

24L1-20010-. Light Assy-Rh

30

21EK-10420

21EK-10420-Lamp Assy-Beacon

31

S015-060202

S015-060202-Bolt-Hex

32

S411-060002

S411-060002-Washer-Spring

33

S161-050152

S161-050152-Screw

34

74L3-01432

74L3-01432-Ext. Mirror Assy-Lh

35

74L3-01512

74L3-01512-Ext. Mirror Assy-Rh

36

S017-100252

S017-100252-Bolt-Hex

37

S441-100002

S441-100002-Washer-Hardened

38

24L3-00400

24L3-00400-Cable Kit-Extend

39

24L3-03240

24L3-03240-Grommet

4

24L1-20020

24L1-20020-. Light Assy-Lh

40

74L3-03500

74L3-03500-Link-Connecting

41

74L3-03490

74L3-03490-Driver-Arm,Rear

42

74L3-0069

74L3-0069-Link-Connecting

5

24L3-30630

24L3-30630-. Reservoir

6

74L3-01810

74L3-01810-. Pivot Shaft-Rear

7

74L3-01820

74L3-01820-. Wiper Arm-Front

8

74L3-01830

74L3-01830-. Wiper Blade-Front

9

74L3-01850

74L3-01850-. Wiper Blade-Rear

Выбрано товаров: 48
