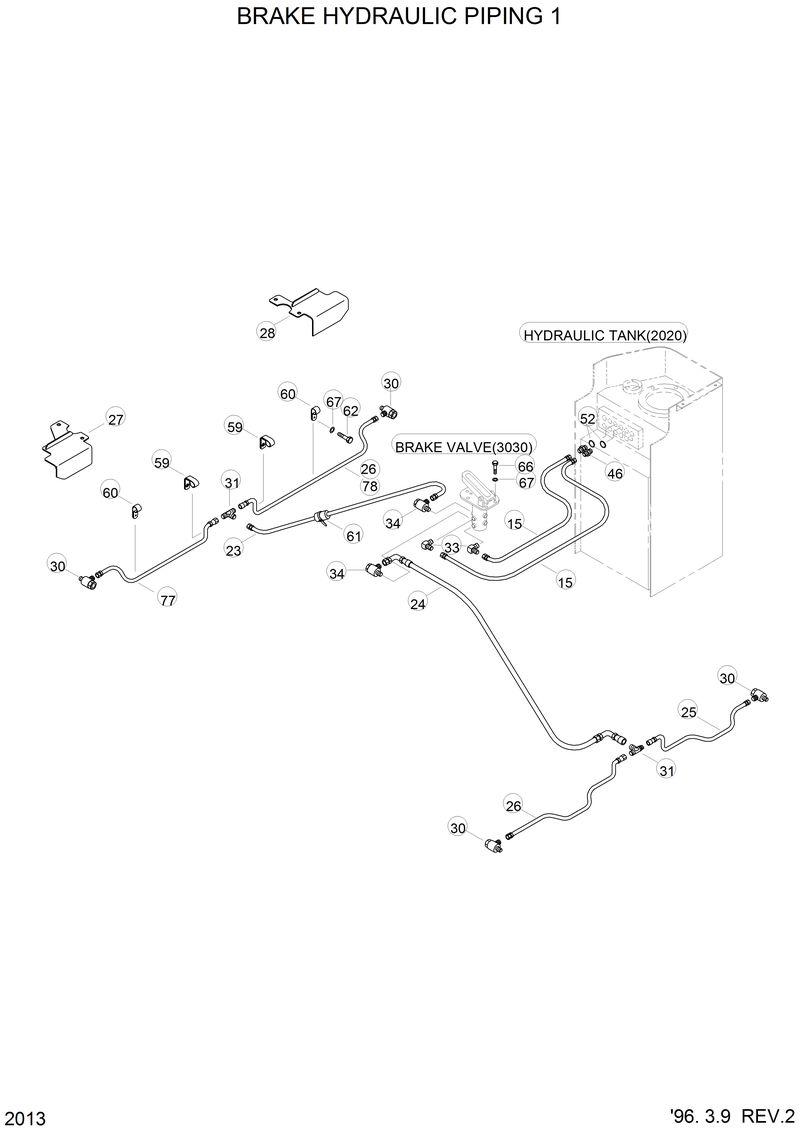

Запчасти Hyundai HL750 BRAKE HYDRAULIC PIPING 1

34L3-00840

34L3-00840-Tube Assy

34L3-00840

34L3-00840-Tube Assy

34L3-00850

34L3-00850-Tube Assy

34L3-00850

34L3-00850-Tube Assy

34L3-00862

34L3-00862-Protector

34L3-00872

34L3-00872-Protector

1

81L1-0005

81L1-0005-Brake Valve

15

P600-063027

P600-063027-Hose Assy-Thd

23

34L3-00940

34L3-00940-Hose Assy-Thd

24

P783-066041

P783-066041-Hose Assy-Thd

27

34L3-00860

34L3-00860-Protector

28

34L3-00870

34L3-00870-Protector

31

31L4-01131

31L4-01131-Tee

33

31L3-0343

31L3-0343-Elbow-90

34

31L1-02180

31L1-02180-Fitting-Banjo

46

P010-110003

P010-110003-Connector

52

S631-014001

S631-014001-O-Ring

59

34L3-00880

34L3-00880-Clamp

60

34L3-00890

34L3-00890-Clamp

61

34L3-00900

34L3-00900-Grommet

62

S015-080102

S015-080102-Bolt-Hex

66

S015-080302

S015-080302-Bolt-Hex

67

S411-080002

S411-080002-Washer-Spring

77

34L3-01410

34L3-01410-Tube Assy

78

34L3-01420

34L3-01420-Tube Assy

N30

81L1-00601

81L1-00601-Fitting-Banjo
