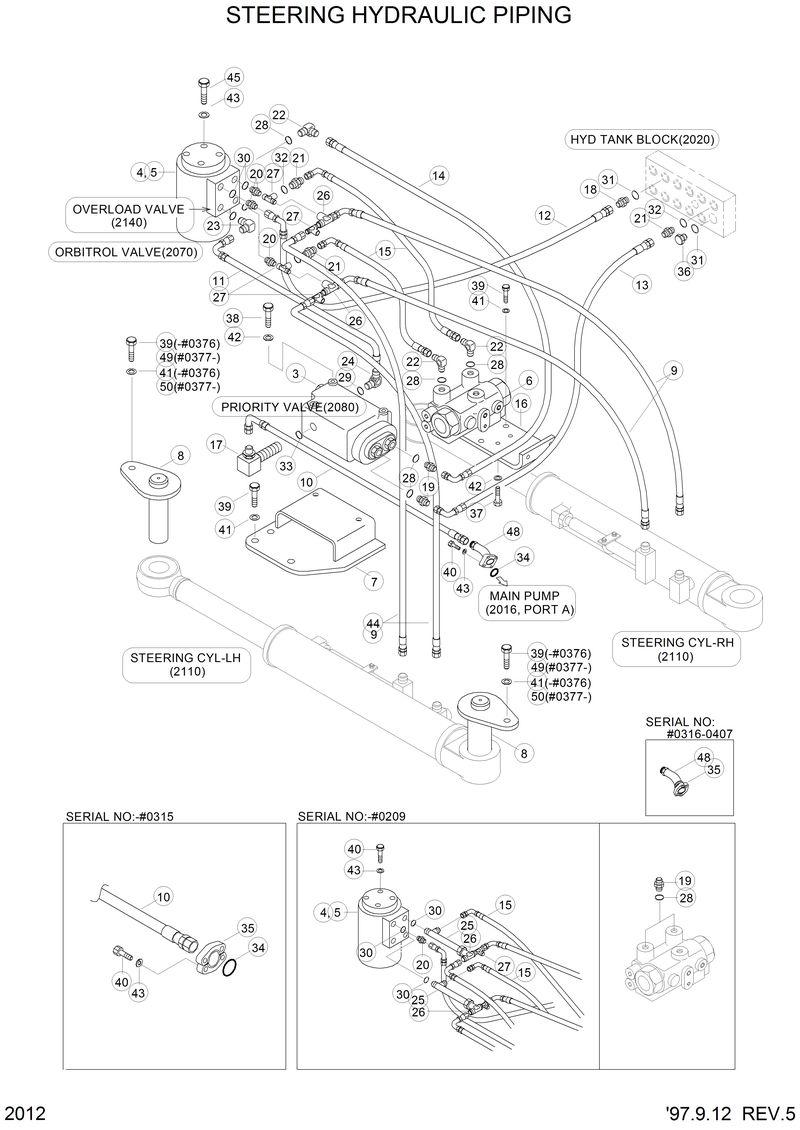

Запчасти Hyundai HL750 STEERING HYDRAULIC PIPING
№
Артикул
Название
Примечание
Количество
31L3-0004
31L3-0004-Orbitrol Valve
P620-047012
P620-047012-Hose Assy-Thd 0x90
S631-011001
S631-011001-O-Ring
S631-011001
S631-011001-O-Ring
P010-310001
P010-310001-Connector
31L3-0376
31L3-0376-Tee
31L3-00351
31L3-00351-Block
31L3-0376
31L3-0376-Tee
P010-310001
P010-310001-Connector
P010-310020
P010-310020-Connector
P010-310020
P010-310020-Connector
P020-310001
P020-310001-Elbow-90
P020-310001
P020-310001-Elbow-90
34L3-00172
34L3-00172-Pin Wa
S441-120002
S441-120002-Washer-Hardened
P620-164011
P620-164011-Hose Assy-Thd
S441-120002
S441-120002-Washer-Hardened
31L3-0226
31L3-0226-Bolt-Socket
P621-085032
P621-085032-Hose Assy-Thd
34L3-01561
34L3-01561-Pipe Wa
31L3-0226
31L3-0226-Bolt-Socket
P620-085016
P620-085016-Hose Assy-Thd 0x90
31L3-0004
31L3-0004-Orbitrol Valve
10
31L3-0271
31L3-0271-Hose Assy-Thd
11
P620-085013
P620-085013-Hose Assy-Thd 0x90
12
P600-081024
P600-081024-Hose Assy-Thd
13
P620-042024
P620-042024-Hose Assy-Thd 0x90
14
P620-047024
P620-047024-Hose Assy-Thd,0x90
15
34L3-00180
34L3-00180-Hose Assy-Thd
16
34L3-01200
34L3-01200-Plate
17
31L3-0035
31L3-0035-Block
23
P020-310005
P020-310005-Elbow-90
24
P020-310006
P020-310006-Elbow-90
25
31L3-0117
31L3-0117-Tee
26
31L3-0220
31L3-0220-Tee
28
S611-009001
S611-009001-O-Ring
29
S611-019001
S611-019001-O-Ring
3
34L3-01400
34L3-01400-Priority Valve
31
S631-018001
S631-018001-O-Ring
33
S611-030001
S611-030001-O-Ring
34
31L1-3029
31L1-3029-O-Ring
36
P220-110104
P220-110104-Plug
37
S015-080202
S015-080202-Bolt-Hex
38
S015-080852
S015-080852-Bolt-Hex
42
S411-080002
S411-080002-Washer-Spring
43
S411-100002
S411-100002-Washer-Spring
44
P601-085032
P601-085032-Hose Assy-Thd
45
34L3-01490
34L3-01490-Bolt-Hex
48
34L3-01560
34L3-01560-Pipe Wa
5
31L3-0006
31L3-0006-Overload Valve
50
S441-160002
S441-160002-Washer-Hardened
7
34L3-00161
34L3-00161-Plate Wa
8
34L3-00171
34L3-00171-Pin Wa
9
P621-085026
P621-085026-Hose Assy-Thd
Выбрано товаров: 63
