Запчасти Hyundai HL750 ENGINE MOUNTING

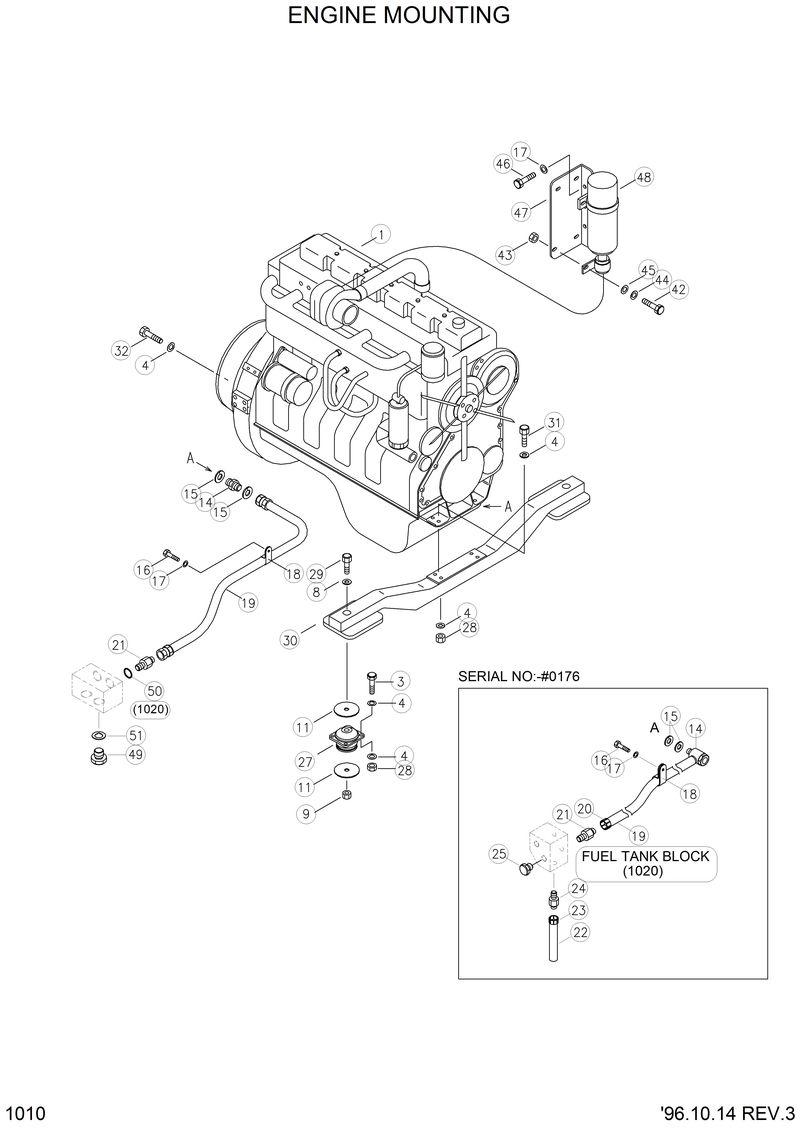

Схема запчастей Hyundai HL750 - ENGINE MOUNTING

Артикул

Название

Примечание

Количество

14L3-01330

14L3-01330-Connector

31E7-0313

31E7-0313-Clamp-Hose

P621-081018

P621-081018-Hose Assy

S631-024001

S631-024001-O-Ring

P010-110004

P010-110004-Connector

P010-110017

P010-110017-Connector

S107-100404

S107-100404-Deleted...

14L1-00270

14L1-00270-Resilient

12L3-01500

12L3-01500-Engine Assy

P220-220106

P220-220106-Plug

1

12L3-0031

12L3-0031-Engine Assy

11

14L3-00810

14L3-00810-Washer

14

P350-220007

P350-220007-Fitting-Banjo

16

S017-120202

S017-120202-Bolt-Hex

17

S441-120002

S441-120002-Washer-Hardened

18

31E7-0315

31E7-0315-Clamp-Hose

19

12L3-0146

12L3-0146-Hose Assy

20

S572-240002

S572-240002-Clamp-Hose Wire Type

21

P090-100808

P090-100808-Connector

22

P710-081004

P710-081004-Hose-Vent

23

S572-220002

S572-220002-Clamp-Hose Wire Type

24

P090-100806

P090-100806-Connector-Hose

25

14L3-00410

14L3-00410-Plug

27

14L3-00800

14L3-00800-Resilient

28

S205-101002

S205-101002-Nut-Hex

29

S017-161502

S017-161502-Bolt-Hex

3

S017-100402

S017-100402-Bolt-Hex

30

14L3-00850

14L3-00850-Hanger Wa

31

S017-100802

S017-100802-Bolt-Hex

32

12L3-0103

12L3-0103-Bolt-Hex

4

S411-100002

S411-100002-Washer-Spring

42

S015-060202

S015-060202-Bolt-Hex

43

S201-061002

S201-061002-Nut-Hex

44

S411-060002

S411-060002-Washer-Spring

45

S403-062002

S403-062002-Washer-Plain

46

S017-120252

S017-120252-Bolt-Hex

47

14L3-00890

14L3-00890-Bracket

48

3302657

3302657-Ether Cylinder

49

P220-110104

P220-110104-Plug

50

S612-011001

S612-011001-O-Ring

51

P392-180000

P392-180000-Washer-Copper

51

P392-180000

P392-180000-Washer-Copper

8

S441-160002

S441-160002-Washer-Hardened

9

S205-161002

S205-161002-Nut-Hex

Выбрано товаров: 44
