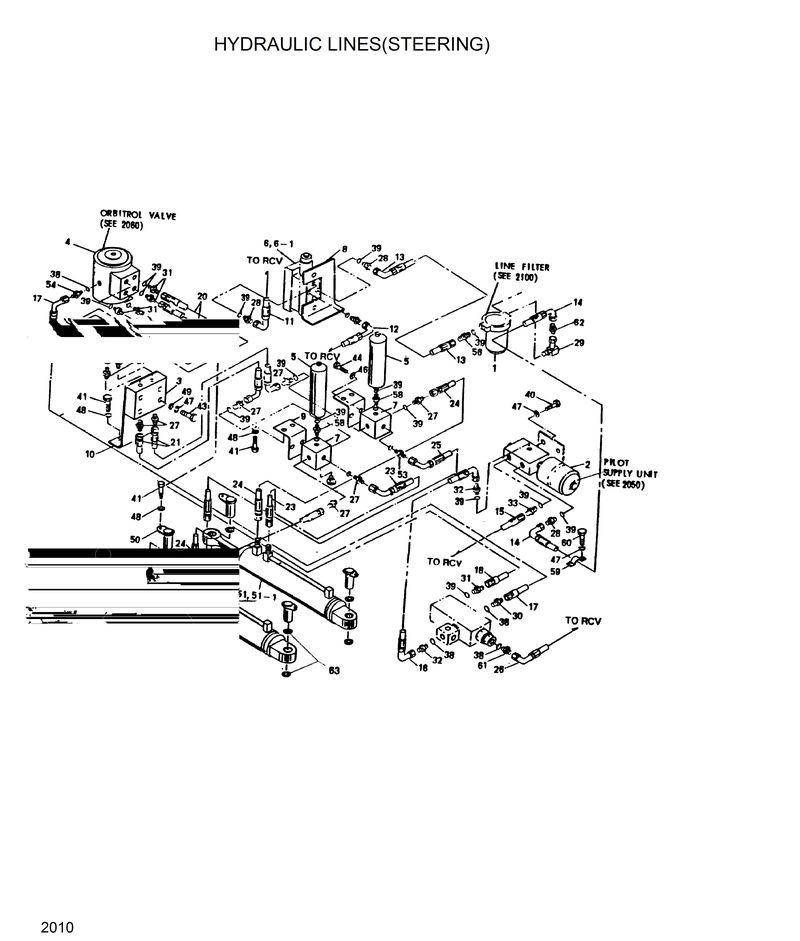

Запчасти Hyundai HL35C HYDRAULIC LINES(STEERING)

31L1-10120

31L1-10120-Relief Valve

31L1-30021

31L1-30021-Orbitrol Valve

1

31E3-0017

31E3-0017-Filter-Line

10

31L1-0072

31L1-0072-Plate

11

31L1-0017

31L1-0017-Hose Assy

12

31L1-0019

31L1-0019-Hose Assy

13

P620-043022

P620-043022-Hose Assy-Thd 0x90

14

P620-043013

P620-043013-Hose Assy-Thd 0x90

15

31L1-0022

31L1-0022-Hose Assy

16

31L1-0023

31L1-0023-Hose Assy

17

31L1-3004

31L1-3004-Hose Assy

18

31L1-3006

31L1-3006-Hose Assy

19

31L1-3008

31L1-3008-Hose Assy

20

31L1-3009

31L1-3009-Hose Assy

21

31L1-3011

31L1-3011-Hose Assy

23

31L1-3013

31L1-3013-Hose Assy

24

31L1-3031

31L1-3031-Hose Assy

25

31L1-0115

31L1-0115-Hose Assy

26

31L1-3007

31L1-3007-Hose Assy

27

31L1-3021

31L1-3021-Fitting

28

31L1-0044

31L1-0044-Fitting

29

31L1-0045

31L1-0045-Fitting

3

31L1-1012

31L1-1012-Relief Valve

31

31L1-3024

31L1-3024-Fitting

32

31L1-3019

31L1-3019-Fitting

33

81L1-0032

81L1-0032-Fitting

38

31L1-3027

31L1-3027-O-Ring

39

31L1-3028

31L1-3028-O-Ring

40

S017-080152

S017-080152-Bolt-Hex

41

S017-120252

S017-120252-Bolt-Hex

42

S017-060602

S017-060602-Bolt-Hex

43

S017-080702

S017-080702-Bolt-Hex

44

S017-100202

S017-100202-Bolt-Hex

45

S017-120202

S017-120202-Bolt-Hex

46

S411-100002

S411-100002-Washer-Spring

47

S411-080002

S411-080002-Washer-Spring

48

S411-120002

S411-120002-Washer-Spring

49

S403-122002

S403-122002-Washer-Plain

5

31L1-1010

31L1-1010-Accumulator

50

31L1-0078

31L1-0078-Pin Wa

51

31L1-1054

31L1-1054-Cyl-Steering,Lh

51-1

31L1-1055

31L1-1055-Cyl-Steering,Rh

53

31E3-3027

31E3-3027-Fitting

54

31L1-3033

31L1-3033-Fitting

56

81L1-0105

81L1-0105-Fitting

57

81L1-0035

81L1-0035-Plug

58

31L1-3026

31L1-3026-Fitting

59

31L1-0121

31L1-0121-Clamp

6

31E3-3072

31E3-3072-Block

6-1

E131-0175

E131-0175-. Solenoid Valve Assy

60

S017-080202

S017-080202-Bolt-Hex

61

31L1-3022

31L1-3022-Fitting

61

31L1-3022

31L1-3022-Fitting

62

31L1-0100

31L1-0100-Fitting

63

31L1-2055

31L1-2055-Seal-Dust

7

31L1-3018

31L1-3018-Block

8

31L1-0070

31L1-0070-Plate

9

31L1-0071

31L1-0071-Plate

N

@

@-Not Individually Supplied

N2

31L1-1003

31L1-1003-Pilot Supply Unit

N4

31L1-3002

31L1-3002-Orbitrol Valve

N51

31L1-10630

31L1-10630-Cyl-Steering,Lh

N51-1

31L1-10640

31L1-10640-Cyl-Steering,Rh
