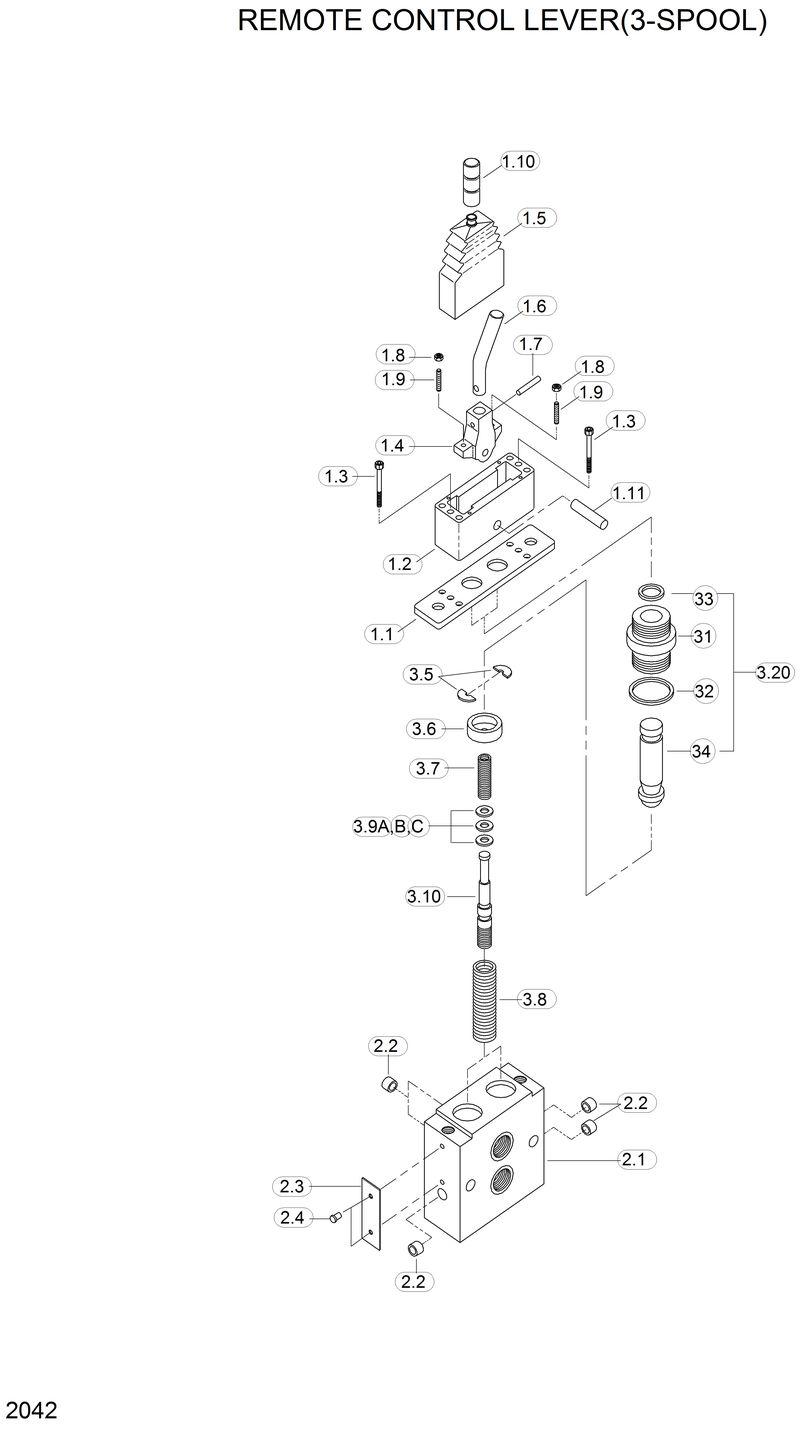

Запчасти Hyundai HL35C REMOTE CONTROL LEVER(3-SPOOL)

*

31L1-1062

31L1-1062-Rcv Lever

*-1

22879400

22879400-. Rcv Lever

1.1

19691800

19691800-.. Plate

1.10

25631500

25631500-.. Grip

1.11

19991700

19991700-.. Bolt

1.2

19691700

19691700-.. Housing

1.3

@

@-.. Screw

1.4

19460800

19460800-.. Fulcrum

1.5

19522100

19522100-.. Bellows

1.6

19821300

19821300-.. Lever

1.7

@

@-.. Pin-Locking

1.9

19461500

19461500-.. Pin-Thread

2.1

19472903

19472903-.. Housing

2.2

@

@-.. Screw-Locking

2.3

@

@-.. Plate-Identification

2.4

@

@-.. Pin-Groove

2.5

@

@-.. Nut

2.5

@

@-.. Nut

2.6

@

@-.. Tie Rod

2.7

@

@-.. Seal

3.10

@

@-.. Spool

3.20

21305900

21305900-.. Plunger Assy

3.5

@

@-.. Retainer-Spring

3.6

@

@-.. Washer

3.9C

@

@-.. Shim

3.9C

@

@-.. Shim

3.9C

@

@-.. Shim

K

21305900*

21305900*-Seal Kit

K31

@

@-... Guide-Plunger

K33

@

@-... Seal

K33

@

@-... Seal

K34

@

@-... Plunger

N

@

@-Not Individually Supplied

N3.7

19003800

19003800-.. Spring

N3.8

19113300

19113300-.. Spring
