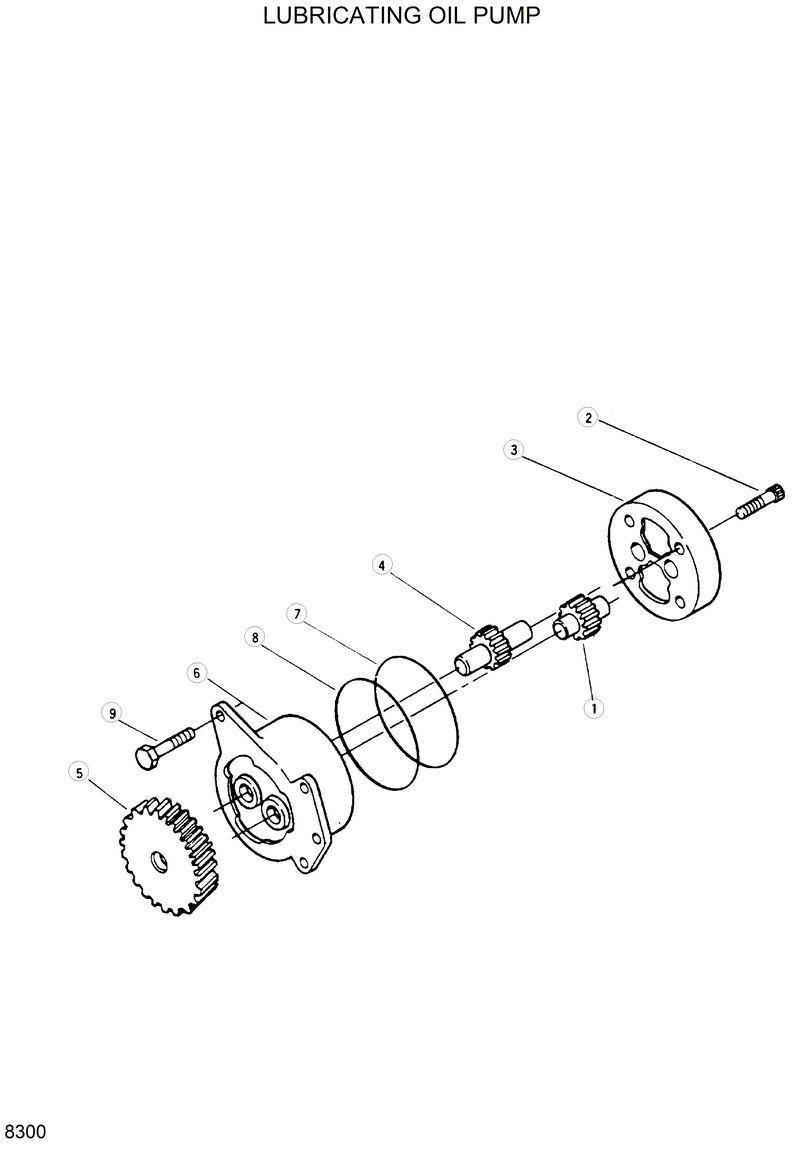

Запчасти Hyundai HL35C LUBRICATING OIL PUMP

3009376

3009376-Bushing

*

3803241

3803241-Lub Oil Pump Assy

*-1

3820882

3820882-. Pump-Lub Oil

1

3025124

3025124-.. Gear & Shaft

1-2

3025114

3025114-... Shaft

2

3610503

3610503-.. Screw-Socket H/Cap

3

3818686

3818686-.. Cover

4

3025123

3025123-.. Gear & Shaft

4-1

3021050

3021050-... Gear

4-1

3021050

3021050-... Gear

4-2

3025113

3025113-... Shaft

5

3038992

3038992-.. Gear-Lub Oil Pump

6

3820884

3820884-.. Body-Lub Oil Pump

7

3033247

3033247-. Seal/O-Ring

8

3033248

3033248-. Seal/O-Ring

9

3025802

3025802-Screw-Hex Hd Cap
